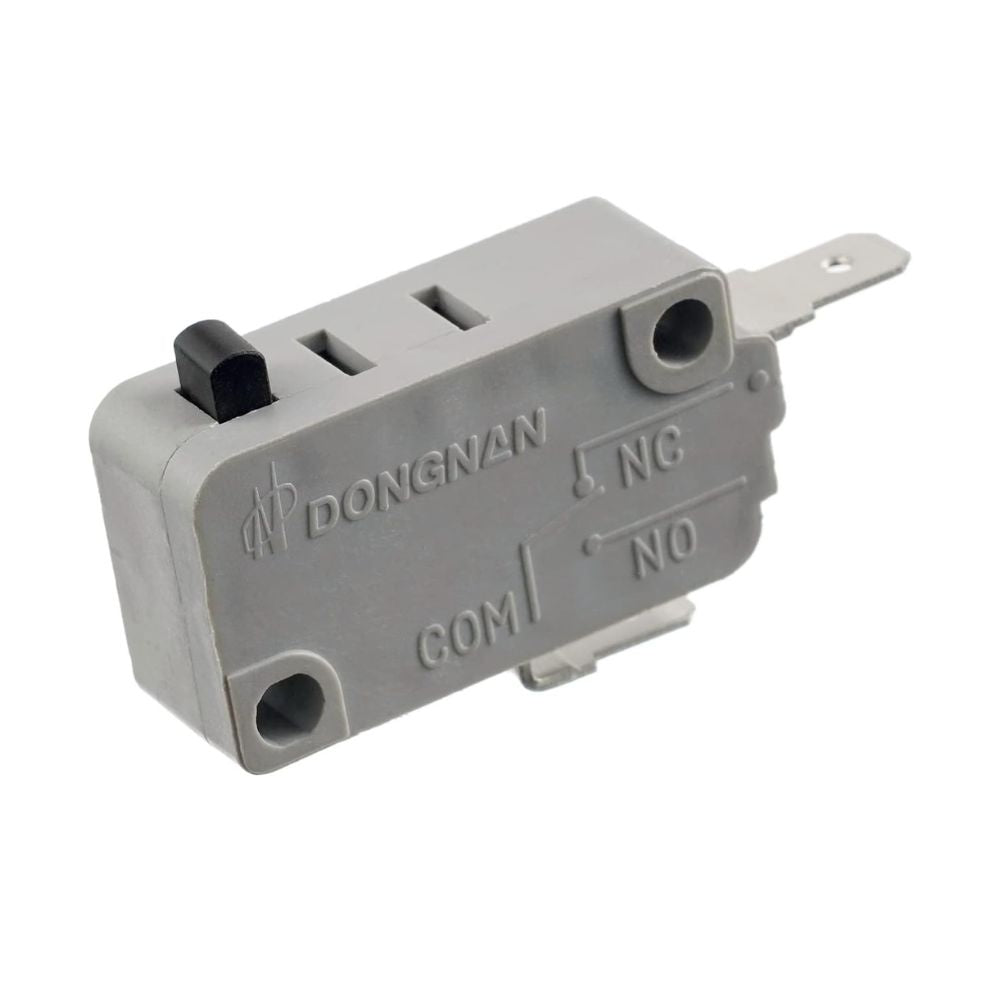

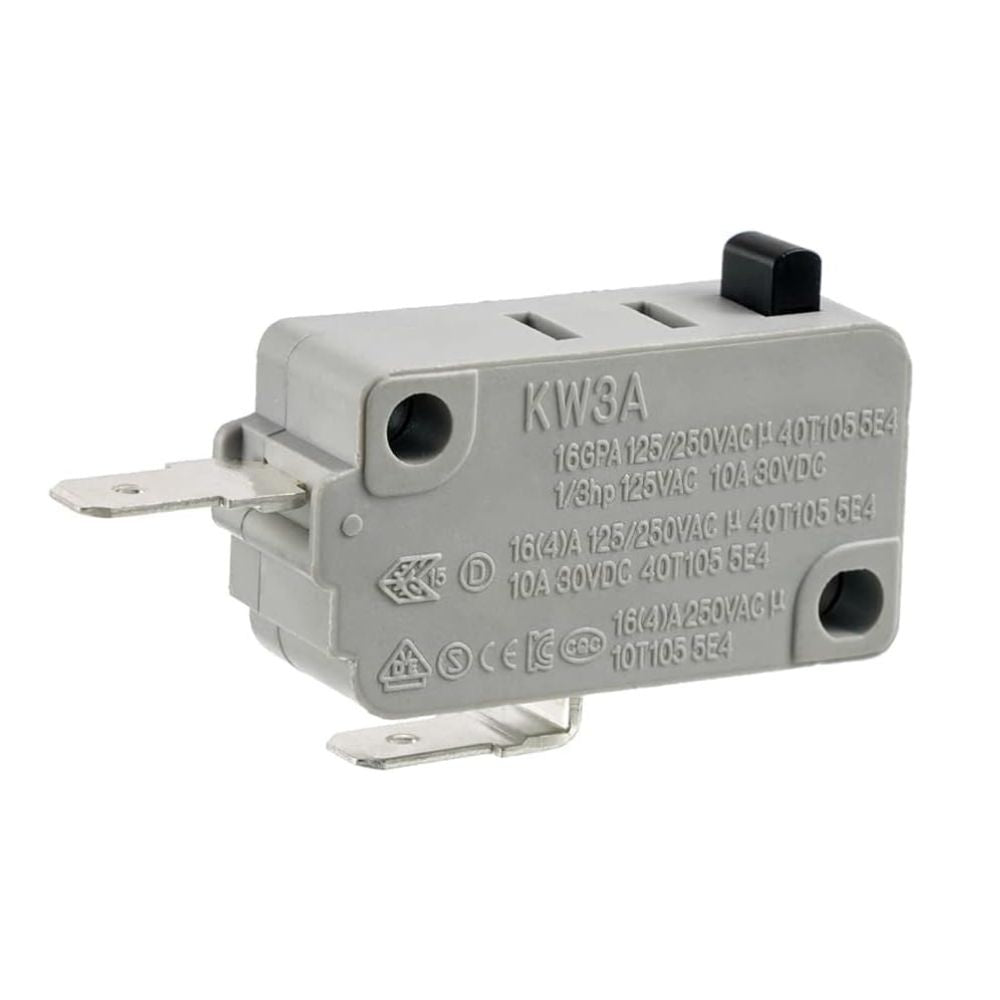

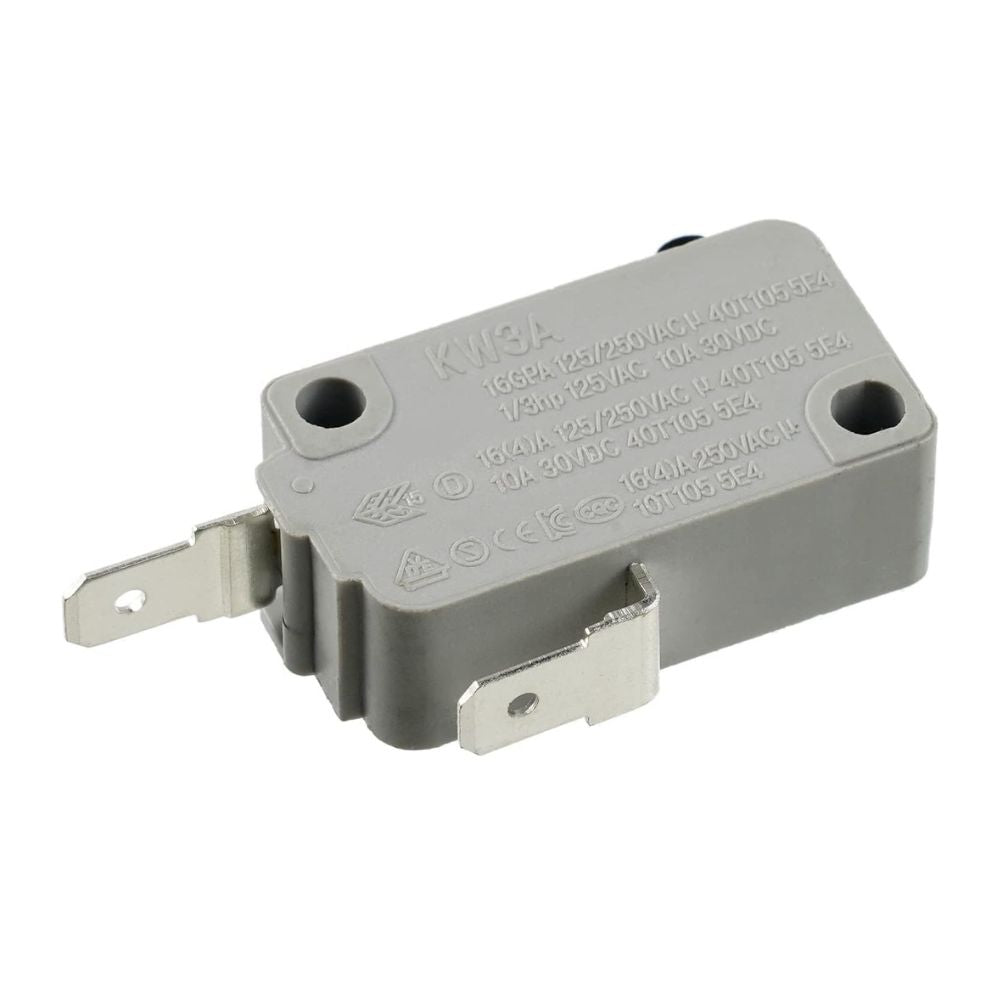

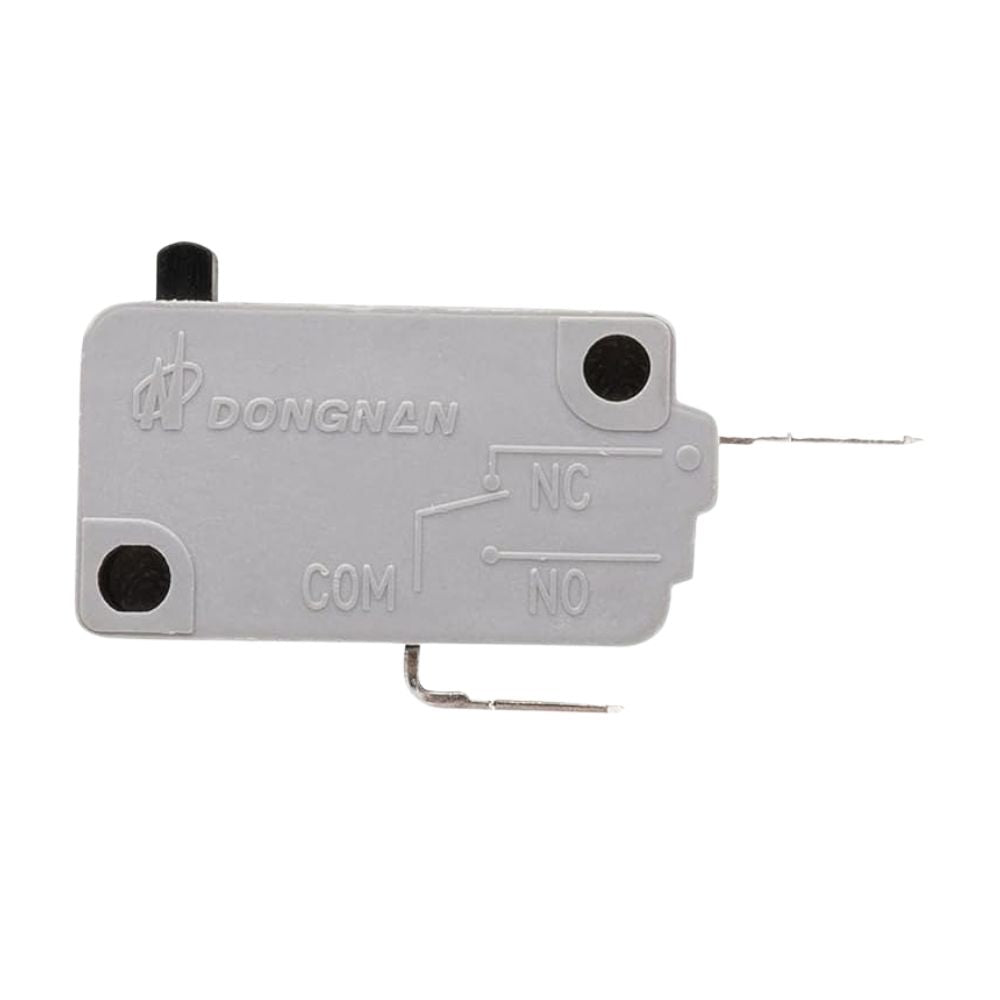

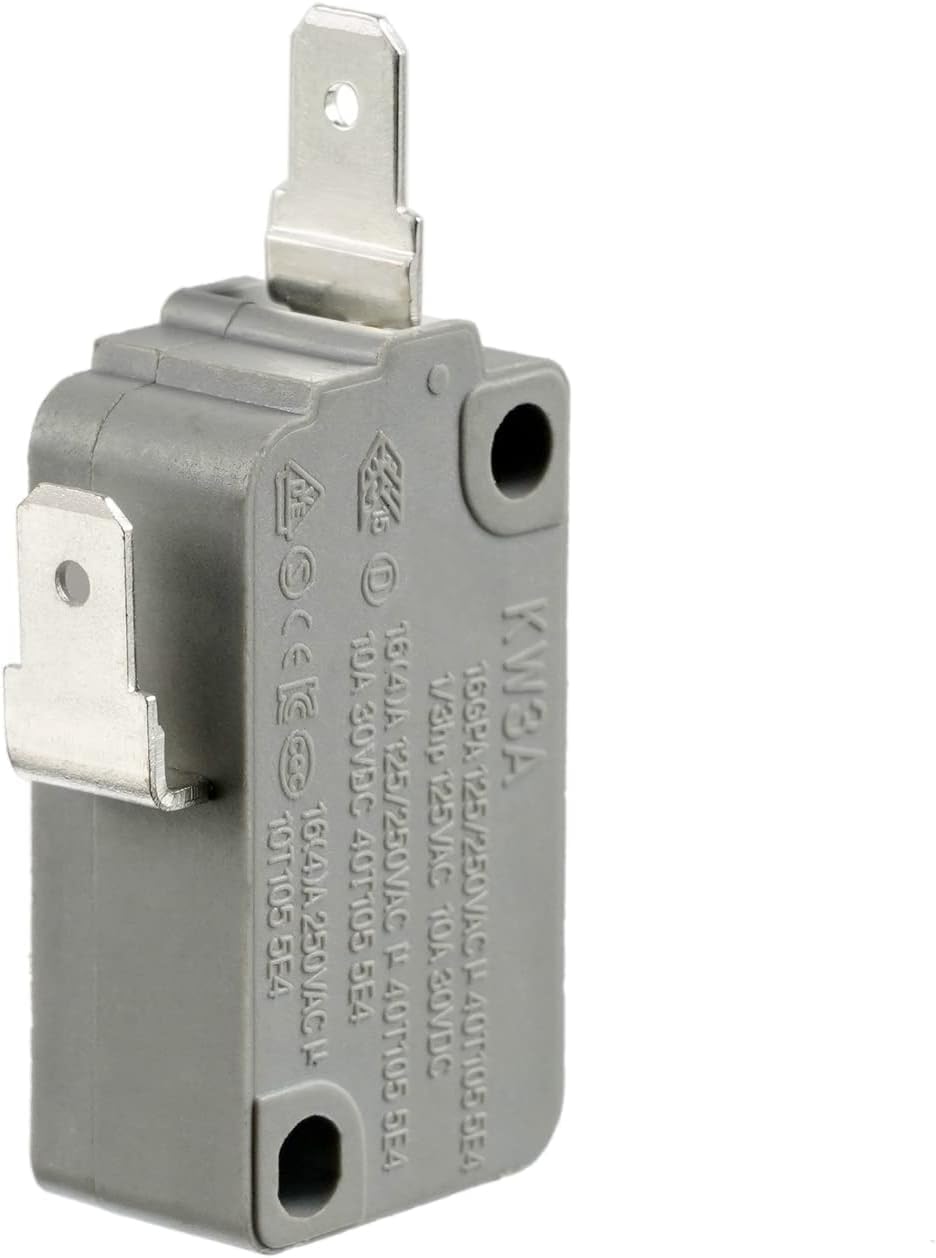

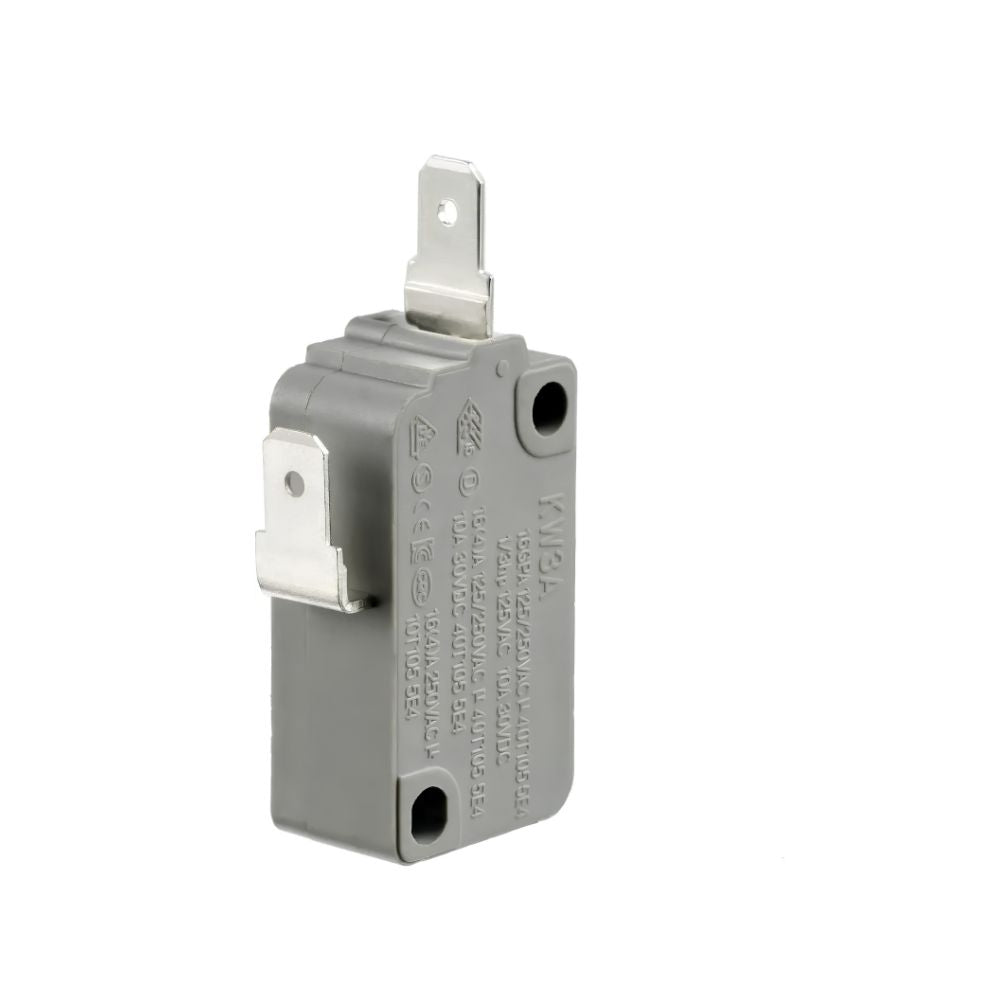

XPARTCO XPG499 Microwave Door Switch — Normally Closed (NC)
Two-terminal microwave door-interlock micro switch rated 16A at 125/250VAC for compatible microwave ovens.
Product Overview
The XPARTCO XPG499 Microwave Door Switch is a normally closed (NC) micro switch used in the microwave door-interlock system. The switch changes state when the door-latch mechanism actuates it, helping the microwave control system verify door position.
This is a quality XPARTCO aftermarket replacement part designed to replace many common two-terminal normally closed microwave interlock switches.
Quick Answer
XPG499 is a normally closed, two-terminal microwave door switch rated 16A at 125/250VAC. It cross-references to common switch families such as WB24X830, WB24X800, W10269458, 8206347, 6600W1K001C, 3405-001033, and related numbers. Match the original switch's electrical function, terminal layout, actuator style, mounting dimensions, and appliance model before installation.
Common Problems This Part May Fix
- Microwave will not start when the door is closed
- Microwave stops when the door or latch is moved
- Door-latch mechanism does not actuate the interlock switch correctly
- Intermittent operation caused by a worn or failed micro switch
- Continuity test shows the original NC switch is not operating correctly
Replaces and Cross-References
Cross-reference numbers cover multiple microwave brands and models. Similar-looking microwave switches may be normally open, normally closed, or use different actuator/mounting designs. Verify the original switch before purchase.
Compatibility
This switch is used in select microwave ovens from GE, Whirlpool, Kenmore, LG, Samsung, Frigidaire/Electrolux, and other manufacturers where the original switch matches the XPG499 specifications and cross-reference family.
Confirmed application examples for cross-referenced switches include GE microwave models PEM31DM3BB, PNM9216SK3SS, CVM9215SL1SS and Whirlpool microwave model WMH31017AS2.
Important: This is only a partial compatibility list. Match the complete microwave model number and original switch part number. Do not substitute a normally open switch for a normally closed switch.
Key Features
- Quality XPARTCO aftermarket replacement
- Normally Closed (NC) switch function
- Two electrical terminals
- 16A rating at 125/250VAC
- Designed for microwave door-interlock applications
- Cross-references many GE, Whirlpool, LG, Samsung, and Frigidaire switch numbers
Product Specifications
| XPARTCO Part Number | XPG499 |
| Brand | XPARTCO |
| Part Type | Microwave Door Interlock Micro Switch |
| Switch Function | Normally Closed (NC) |
| Terminals | 2 |
| Electrical Rating | 16A at 125/250VAC |
| Condition | New |
| Part Quality | Aftermarket Replacement |
| Application | Microwave Door Interlock / Safety Circuit |
| Package Quantity | 1 Switch |
Microwave Safety & Installation Notes
Microwave ovens contain high-voltage components that can retain a dangerous electrical charge even after the appliance is unplugged. Door-interlock switches are safety-critical components and improper installation or adjustment can create a hazardous condition.
- Disconnect power before service.
- Do not access high-voltage components unless trained and equipped to service microwave ovens.
- Confirm the replacement is the same switch function: Normally Closed (NC).
- Match the terminal arrangement, actuator position, and mounting dimensions to the original switch.
- Inspect the door latch, latch holder, switch bracket, and related interlock switches for damage or misalignment.
- After replacement, the complete microwave door-interlock system must be tested according to the manufacturer's service procedure before the microwave is returned to use.
Professional service recommended: GE specifically advises that microwave shielding and interlock switches be properly tested after door-interlock switch replacement.
Frequently Asked Questions
Is XPG499 normally open or normally closed?
XPG499 is a Normally Closed (NC) two-terminal switch.
What is the electrical rating?
The switch is rated 16A at 125/250VAC.
Does it replace GE WB24X830?
Yes, XPG499 is sold as an aftermarket replacement for WB24X830 and related superseded GE switch numbers on compatible models.
Can I use this instead of a normally open microwave switch?
No. The switch function must match the original design. A normally closed switch and a normally open switch are not interchangeable simply because the housings look similar.
Is this a Genuine OEM switch?
No. It is a quality XPARTCO aftermarket replacement part.
Shop With Confidence
Verify the original switch number and your complete microwave model before ordering. For microwave door-interlock parts, switch function and mechanical fit are critical.
