XPARTCO WR60X10185 Refrigerator Evaporator Fan Motor AP3875639, PS1019114
XPARTCO WR60X10185 Refrigerator Evaporator Fan Motor AP3875639, PS1019114
Couldn't load pickup availability

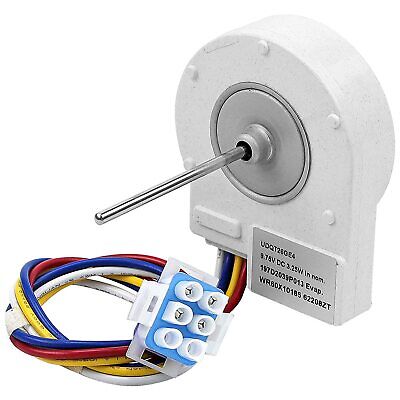

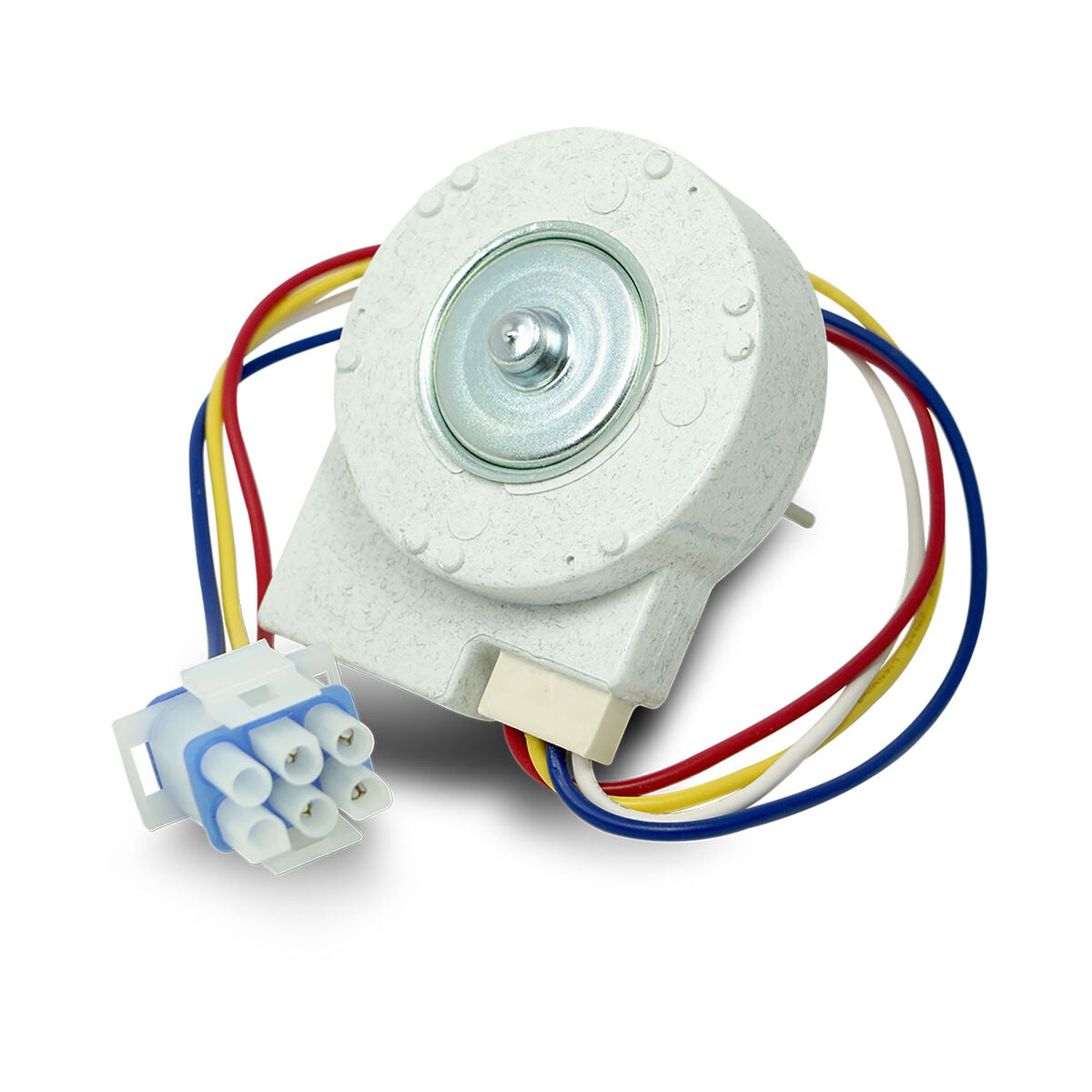

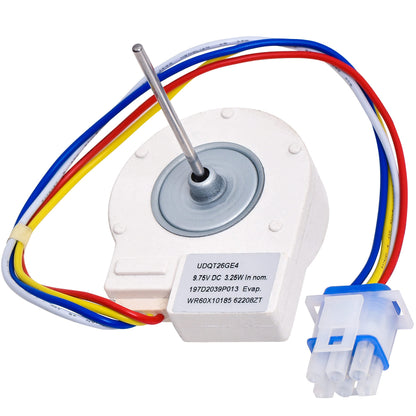

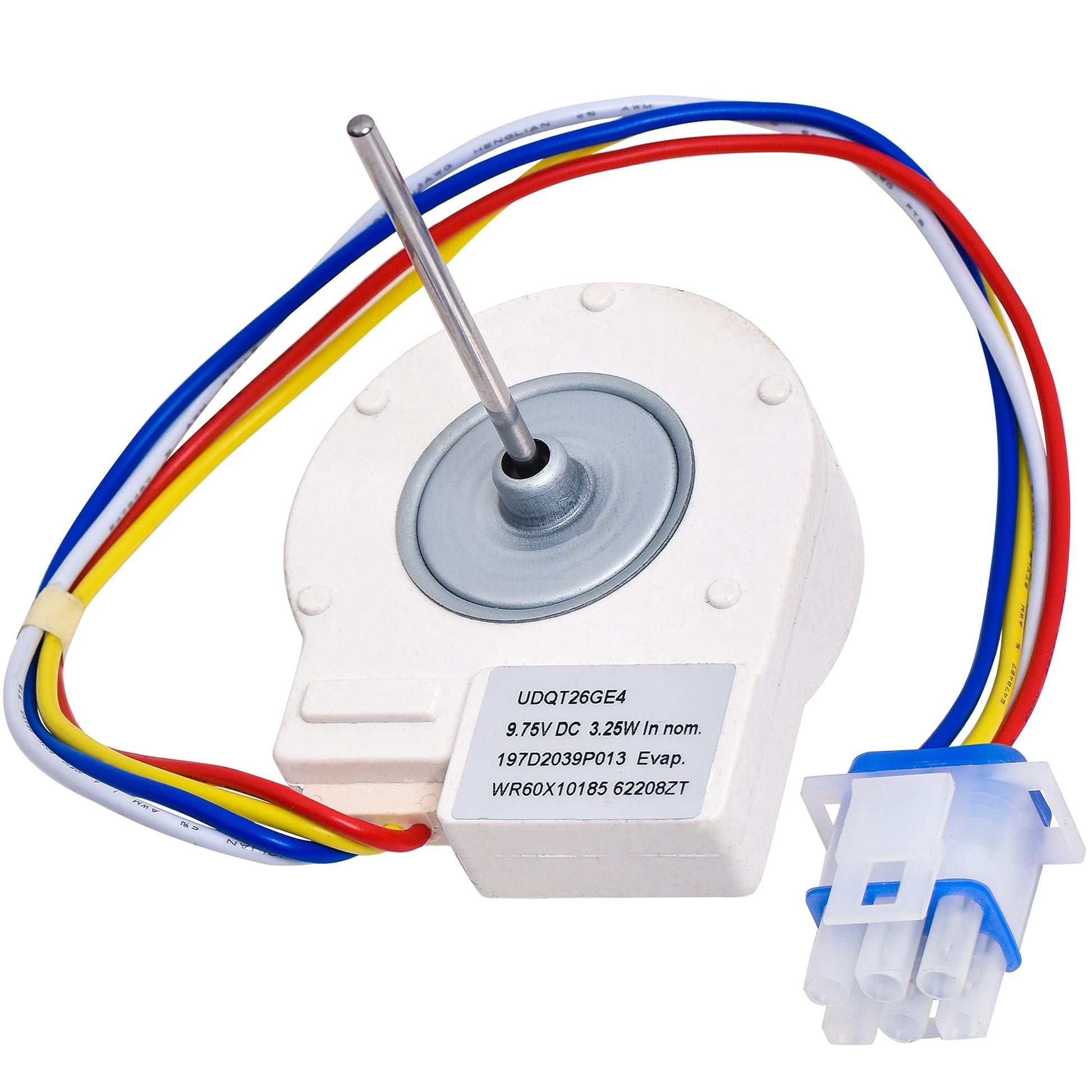

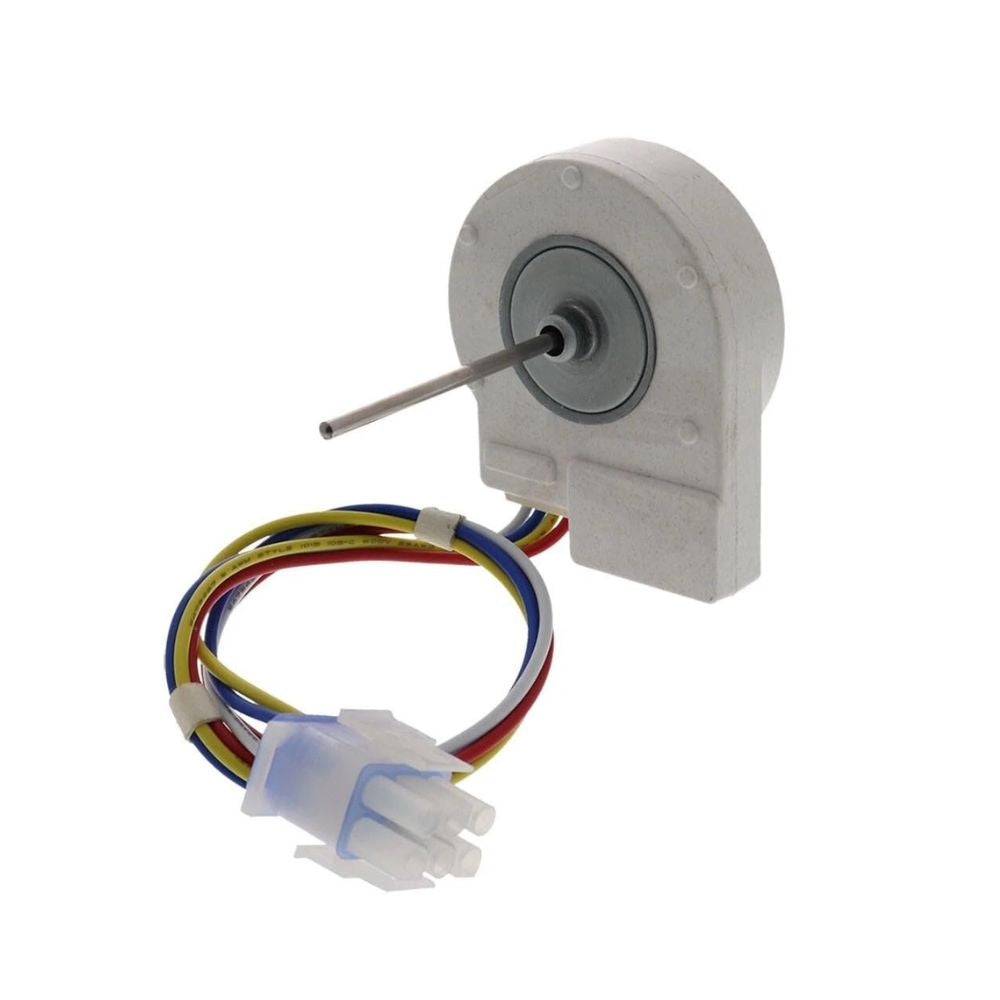

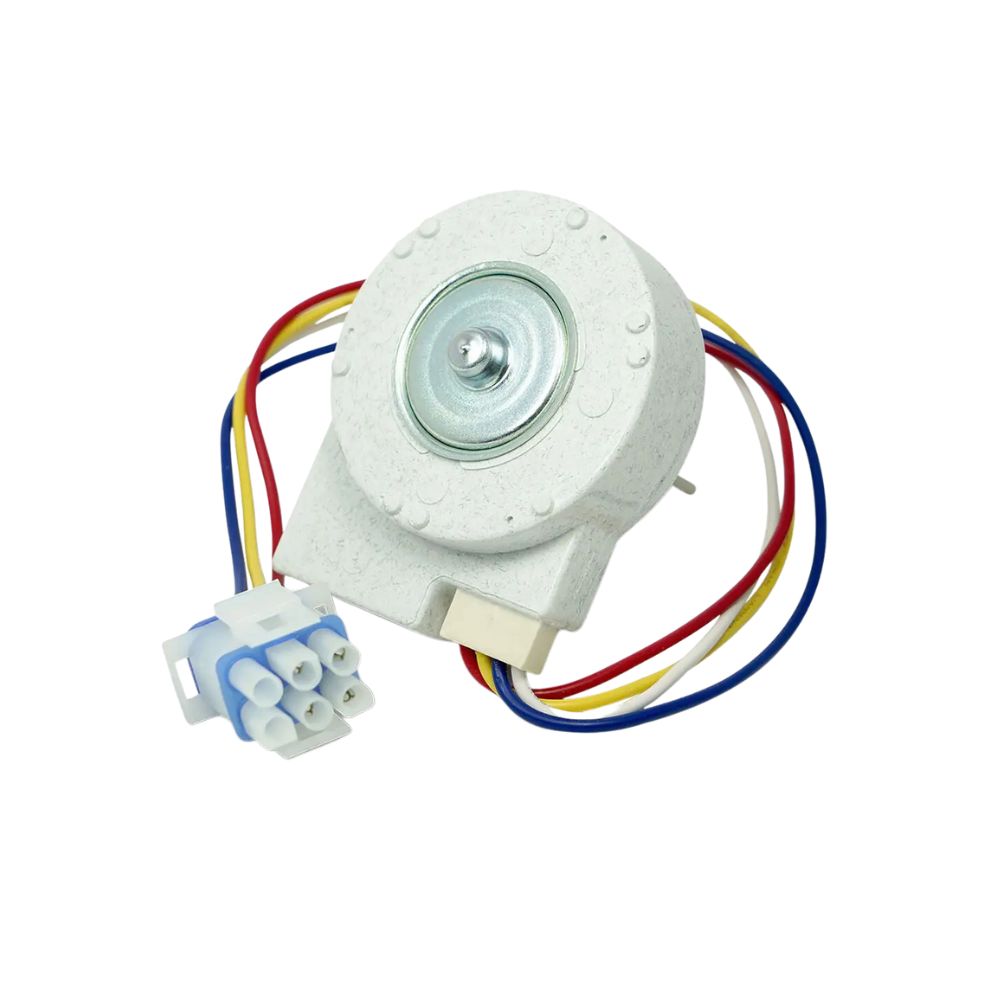

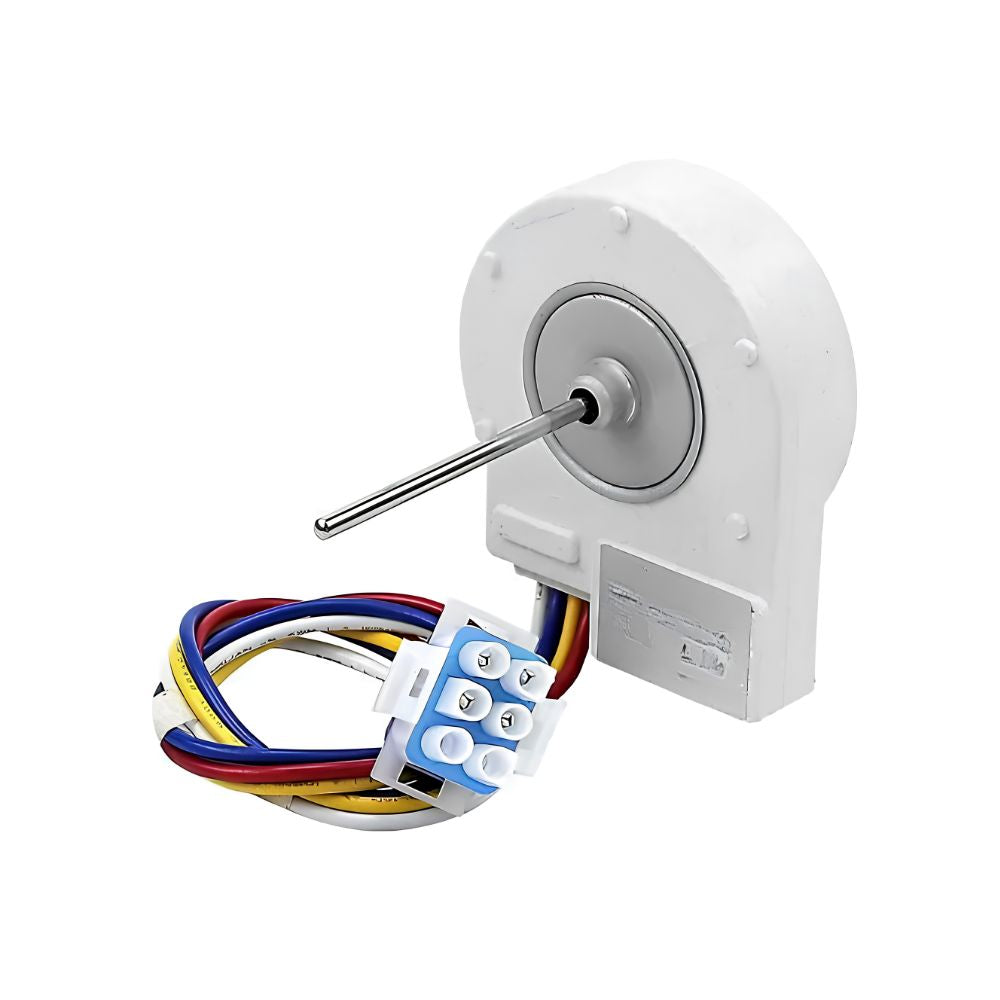

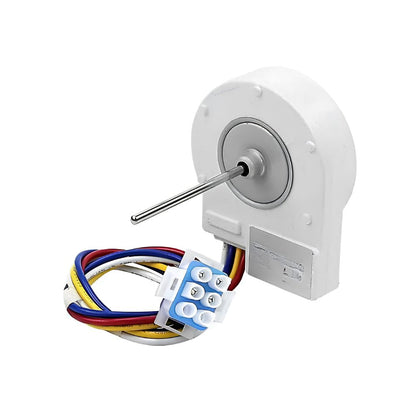

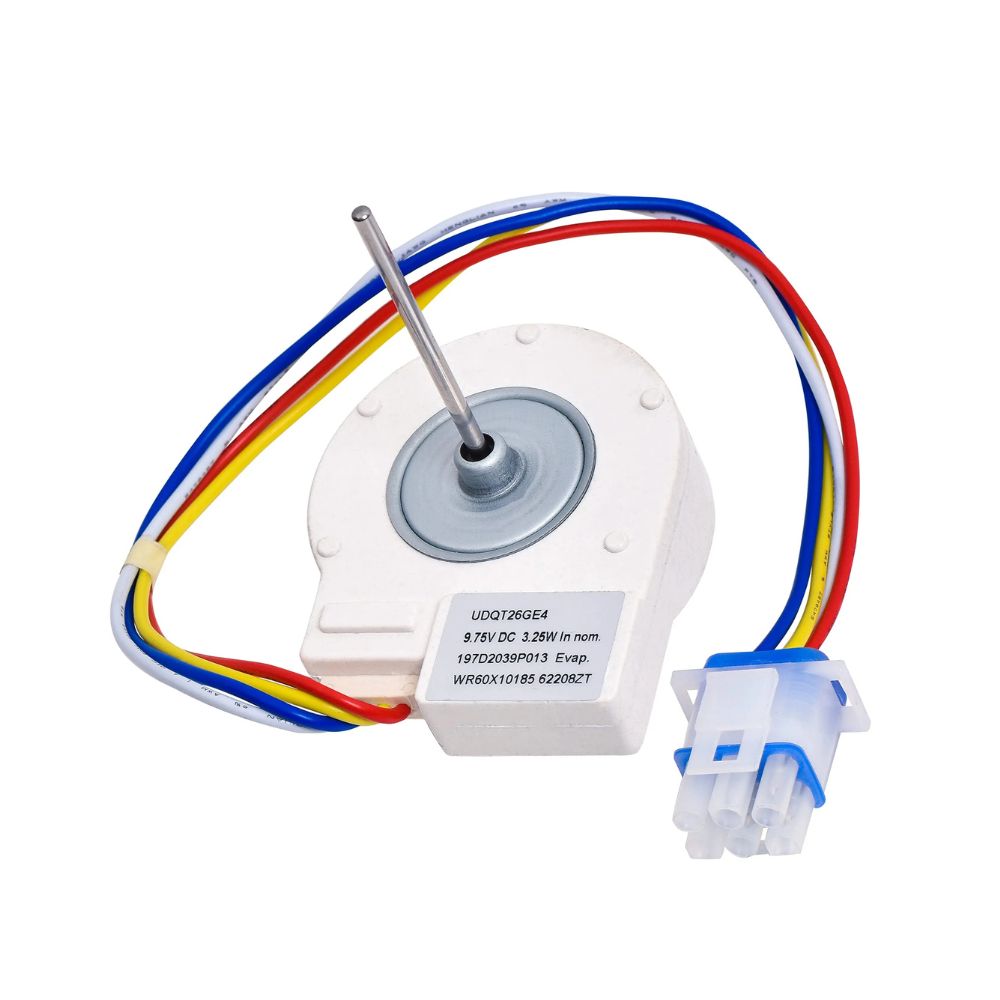

XPARTCO WR60X10185 Refrigerator Evaporator Fan Motor
9.75V DC evaporator fan motor with four-wire harness for select GE-built refrigerators.
Product Description
The XPARTCO WR60X10185 Refrigerator Evaporator Fan Motor circulates cold air across the evaporator area and through the refrigerator compartments. Proper airflow helps maintain even temperatures and supports efficient cooling.
This is a quality XPARTCO aftermarket replacement part designed for compatible GE-built refrigerators, including select GE, Hotpoint, Americana, Monogram, and GE-manufactured Kenmore models.
Quick Answer
WR60X10185 is a 9.75-volt DC evaporator fan motor rated approximately 3.25 watts. It has a four-wire harness in a six-position connector and does not include a thermistor in the harness. Do not use it in an application that requires the thermistor-equipped motor assembly.
Common Problems This Part May Fix
- Refrigerator or freezer is too warm
- Uneven temperatures between compartments
- No airflow from the freezer vents
- Fan is noisy, clicking, squealing, or vibrating
- Fan blade turns slowly or stops
- Evaporator fan does not run when commanded
Replaces and Cross-References
Cross-reference numbers are provided for identification. XPARTCO is an aftermarket replacement brand and is not manufactured by GE.
Compatibility
Designed for select GE-built refrigerators sold under GE, Hotpoint, Americana, Monogram, and certain Kenmore brand names. Compatible model examples include:
Important: This is only a partial compatibility list. Verify the complete refrigerator model and confirm that the original motor uses the four-wire harness without a thermistor. Models requiring a thermistor-equipped motor use a different part.
Key Features
- Quality XPARTCO aftermarket replacement
- 9.75V DC evaporator fan motor
- Approximately 3.25-watt motor rating
- Four-wire harness
- Six-position connector with two unused positions
- Circulates cold air through the refrigerator
- For applications without a harness thermistor
Product Specifications
| XPARTCO Part Number | XPWR60X10185 |
| Brand | XPARTCO |
| Part Type | Refrigerator Evaporator Fan Motor |
| Condition | New |
| Part Quality | Aftermarket Replacement |
| Voltage | 9.75V DC |
| Power | Approximately 3.25W |
| Harness | Four Wires / Six-Position Connector |
| Thermistor | Not Included |
| Included | One Evaporator Fan Motor with Harness |
Troubleshooting Guide
- Unplug the refrigerator and protect perishable food before service.
- Remove the freezer shelves and rear evaporator cover according to the appliance service procedure.
- Check for heavy frost or ice blocking the fan blade before condemning the motor.
- Inspect the blade, motor mount, wiring harness, connector, and control-board output.
- Confirm the replacement motor matches the original harness configuration and does not require an integrated thermistor.
- After installation, ensure the blade turns freely and does not contact the shroud.
Diagnostic tip: Poor cooling may also be caused by a defrost-system failure, blocked air passage, damaged fan blade, thermistor fault, door-gasket leak, or control-board problem. Correct any ice buildup or airflow restriction before returning the refrigerator to service.
When Should You Replace This Part?
- The motor does not run when proper voltage is present
- The motor is seized or turns slowly
- The motor makes loud mechanical or electrical noise
- The harness or connector is damaged
- Cooling airflow remains weak after ice blockage is removed
Installation Notes
- Disconnect electrical power before service
- Do not bend or damage the evaporator tubing
- Transfer the fan blade and mounts when required
- Route the harness away from the blade
- Confirm the blade direction and free rotation
- Reinstall the evaporator cover to prevent airflow leaks
Frequently Asked Questions
Is this a Genuine OEM GE motor?
No. It is a quality XPARTCO aftermarket replacement for compatible GE-built refrigerators.
Does the harness include a thermistor?
No. WR60X10185 uses a four-wire harness without the separate thermistor wires.
Does the fan blade come with the motor?
This listing includes the motor and harness only unless the product photographs or package contents specifically show otherwise.
Shop With Confidence
Verify the complete refrigerator model, original motor number, voltage, and harness configuration before ordering. Our compatibility team can help determine whether XPARTCO WR60X10185 is correct for your appliance.
