XPARTCO

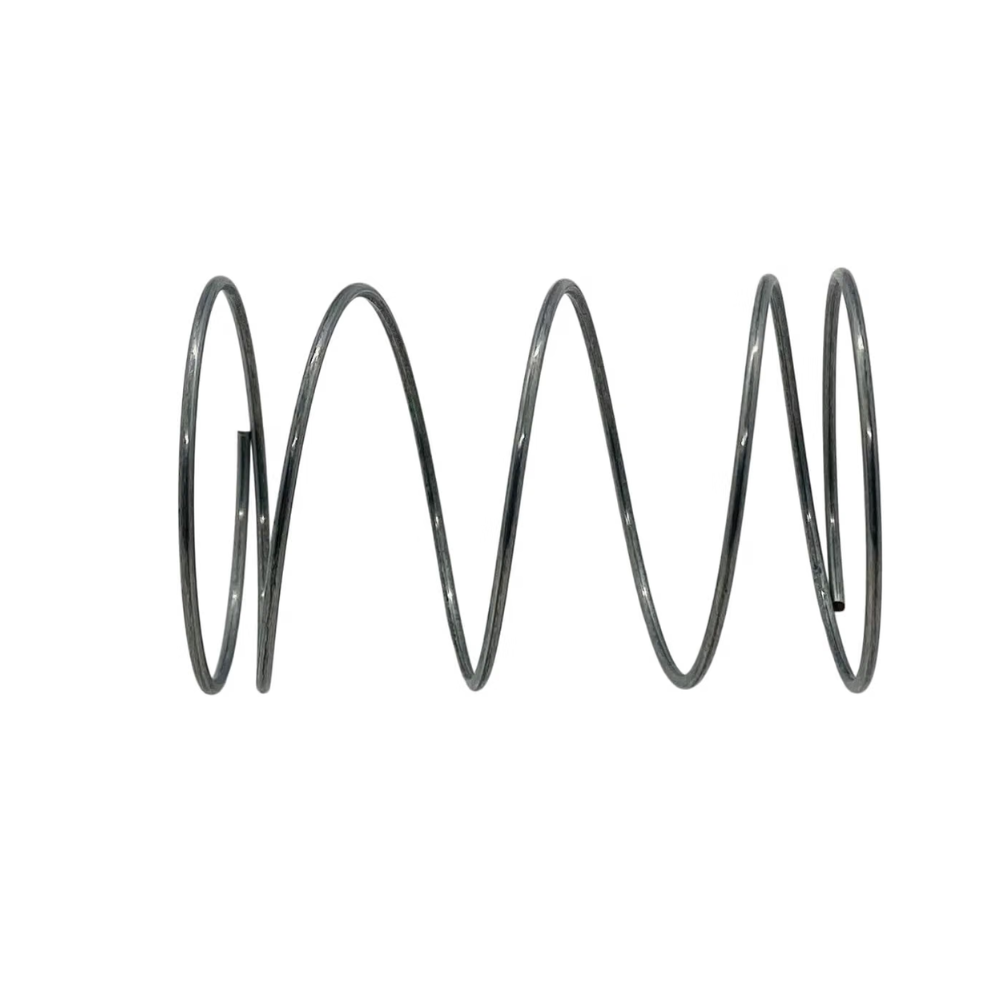

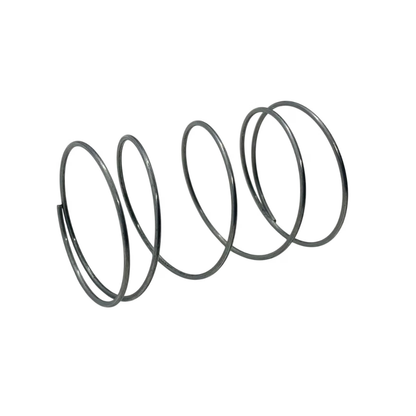

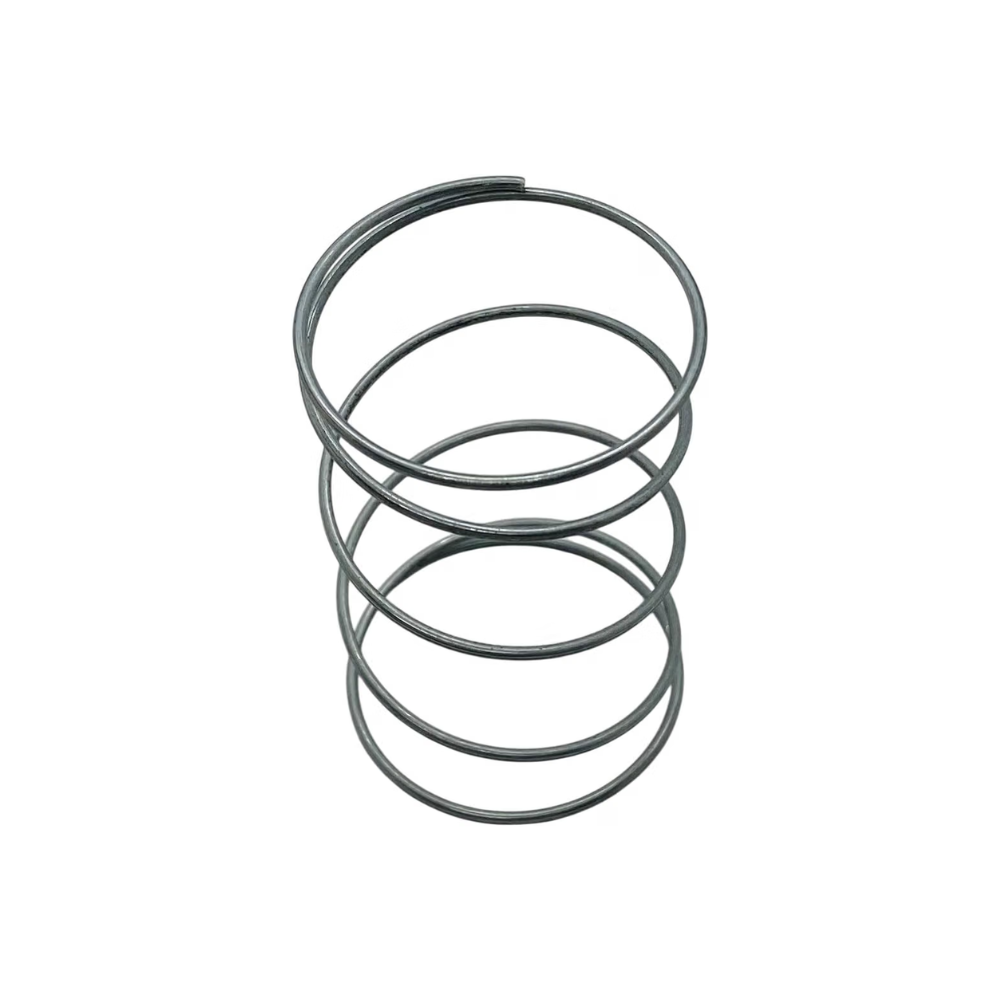

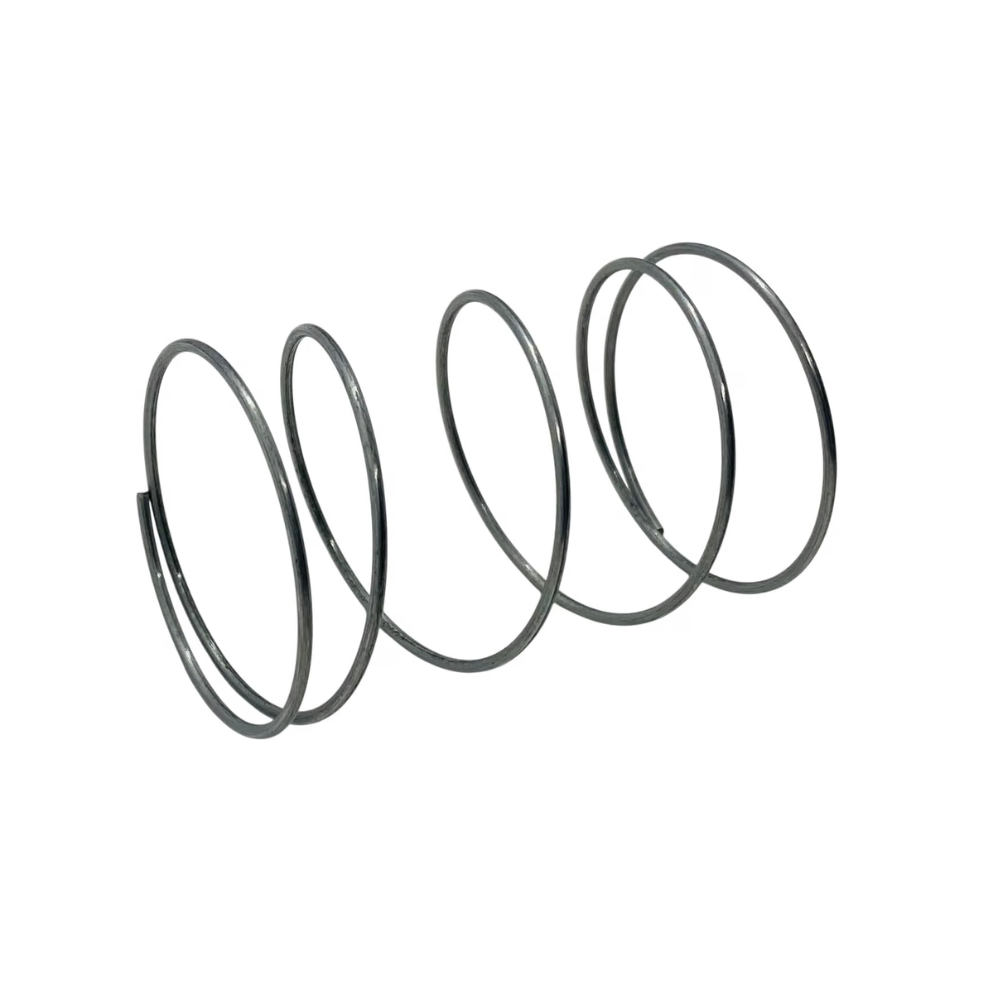

XPARTCO WH01X24434 Washer Clutch Spring

XPARTCO WH01X24434 Washer Clutch Spring

$8.99 USD
$11.80 USD $8.99 USD
Sale Sold out
Shipping calculated at checkout.

XPARTCO WH01X24434 Washer Clutch Spring

The XPARTCO WH01X24434 is an aftermarket replacement clutch spring for GE top-load washers, and also fits select Hotpoint and RCA models. This small spring provides the correct tension for the shifter/clutch assembly, ensuring smooth transitions between the wash and spin cycles. It works alongside the shift actuator (our WH03X30517 listing) and the clutch itself (our WH05X24185 listing) in the same wash/spin transition system.

Made of spring steel for flexibility and wear resistance, measuring approximately 2.3" in length. Over time, this spring can weaken, stretch, or lose tension from repeated use. Symptoms of a worn or failing clutch spring include weak shifting, slipping, or the washer failing to transition properly between agitation and spin. It directly replaces WH01X24434, 4587847, AGE26150, AP6031748, EAP11763251, PD00055310, PS11763251

Quick Answer

The XPARTCO WH01X24434 Washer Clutch Spring fixes GE, Hotpoint, and RCA top-load washers with weak shifting, slipping, or a failure to transition between agitation and spin. Spring steel, approximately 2.3" length. Replaces WH01X24434, 4587847, AGE26150, AP6031748, EAP11763251, PD00055310, PS11763251. This spring works alongside the shift actuator (WH03X30517) and clutch (WH05X24185) in the same system — if you're already replacing one of those, it's worth checking this spring's condition too.

Common Problems This Part Fixes

  • Weak shifting between agitation and spin
  • Washer slipping during the wash/spin transition
  • Washer failing to transition properly between cycles
  • Excessive noise or vibration during operation
  • Inconsistent spin performance

Cross Reference Information

Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.

Replaces Part Numbers

This washer clutch spring directly replaces the following OEM and cross-reference part numbers:

WH01X24434, 4587847, AGE26150, AP6031748, EAP11763251, PD00055310, PS11763251

If your part number is not listed above, contact our support team before ordering and we will verify compatibility.

Compatibility

This clutch spring is compatible with select GE top-load washers, and also fits select Hotpoint and RCA washers built on the GE platform, including model numbers such as:

  • GTW755CSM0WS, GTW755CSM1WS, GTW750CSL0DG
  • GTW220ACK4WW, GTW220ACK6WW, GTW220ACK7WW
  • GTW685BSL1WS, GTW685BSL2WS, GTW685BSL3WS, GTW685BSL6WS
  • GTW465ASN0WW, GTW465ASN1WW, GTW465ASN2WW, GTW465ASN3WW, GTW465ASN9WW
  • GTW680BSJ7WS, GTW680BPL2DG
  • GTW525ACP0WB, GTW525ACP1WB, GTW525ACP2WB
  • GTW460ASJAWW, GTW330ASK0WW, GTW330ASK1WW, GTW330ASK2WW
  • GTW335ASN0WW, GTW335ASN1WW, GTW335ASN2WW
  • GTW500ASN0WS, GTW500ASN1WS, GTW500ASN2WS, GTW500ASN4WS, GTW500ASN5WS
  • GTW540ASP0WS, GTW540ASP1WS, GTW540ASP2WS, GTW540ASP3WS
  • PTW605BSR0WS, PTW605BSR1WS, PTW605BPR1DG, PTW600BPR1DG, PTW600BSR1WS
  • GTW490ACJ6WW, GTW490ACJ6WS, GTW490ACJ7WW, GTW490ACJ7WS
  • VTW525ASR0WB, VTW525ASR1WB, GTW585BSV0WS, GTW585BSV2WS, GTW485ASW0WB
  • HTW200ASK0WW, HTW200ASK1WW, HTW200ASK2WW, HTW200ASK3WW, HTW200ASK4WW
  • HTW240ASK0WS, HTW240ASK1WS, HTW240ASK2WS, HTW240ASK3WS, HTW240ASK4WS, HTW240ASK5WS, HTW240ASK6WS
  • HTW265ASW0WW

Note: This spring is commonly purchased alongside the shift actuator (WH03X30517) and clutch (WH05X24185), since all three work together in the same system, but they are sold separately. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure.

Key Features

  • Aftermarket replacement clutch spring — provides correct tension for the shifter/clutch assembly
  • Resolves "weak shifting," "slipping," and "failure to transition between agitation and spin" symptoms
  • Spring steel construction for flexibility and wear resistance
  • Approximately 2.3" length
  • Direct drop-in replacement matching the original mounting
  • Replaces WH01X24434, 4587847, AGE26150, AP6031748, EAP11763251, PD00055310, PS11763251
  • Compatible with GE, Hotpoint, and RCA top-load washers
  • Aftermarket replacement built to OEM-equivalent quality standards
  • Works alongside our WH03X30517 shift actuator and WH05X24185 clutch listings

Product Specifications

Part Number XPWH01X24434
OEM Part Number WH01X24434
Part Type Washer Clutch Spring
Condition Aftermarket Replacement
Material Spring steel
Length Approx. 2.3"
Related Parts WH03X30517 shift actuator, WH05X24185 clutch (both sold separately)
Repair Difficulty Moderate — some disassembly required
Quantity 1 clutch spring
Compatible Brands GE, Hotpoint, RCA

Installation Notes

⚠️ Unplug Washer Before Starting Disconnect power at the outlet before beginning to cut off electricity and prevent accidental shocks. Wear work gloves. Access to the clutch spring typically requires the same disassembly path as the clutch and shift actuator: remove the two screws at the back of the washer, pull off the main console, and locate the access plate on the transmission side. Remove the belt from the pulley and take off the belt guard. Locate the old clutch spring and note its exact position and orientation before removing it. Remove the old spring and install the new WH01X24434 in the same position, making sure it's seated correctly to provide proper tension on the shifter/clutch assembly. Reattach the belt, pulley, and access plate. Reinstall the main console and secure it with its screws. Restore power and run a test cycle to confirm smooth, correct transitions between agitation and spin with no slipping. Tools needed: Phillips screwdriver, socket wrench, work gloves.

Frequently Asked Questions

My washer shifts weakly or slips between cycles. Is this the spring I need?

Yes, this is a documented symptom of a worn clutch spring. Since this spring provides the correct tension for the shifter/clutch assembly, a weakened or stretched spring can result in weak shifting or slipping as the washer tries to transition between agitation and spin.

Should I replace this spring at the same time as the actuator or clutch?

It's worth considering. Since this spring, the shift actuator, and the clutch all work together in the same wash/spin transition system, and you'll already have the washer disassembled to access any one of them, checking and replacing all three together — especially if they're all original and the same age — can help prevent needing to reopen the washer again soon after.

Is this a difficult repair?

It's a moderate repair, since accessing this spring requires removing the back panel, main console, and transmission access plate — the same disassembly path used for the clutch and shift actuator. Basic hand tools are sufficient, but budget more time than for a simple part swap.

Is this an OEM or aftermarket part?

This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the length, material, and tension specification of the original WH01X24434 clutch spring used in compatible GE, Hotpoint, and RCA top-load washers.
