XPARTCO
XPARTCO WE1X21975 Dryer Fuse, 30 Amp for GE AP5957584, PS10065161
XPARTCO WE1X21975 Dryer Fuse, 30 Amp for GE AP5957584, PS10065161
Couldn't load pickup availability

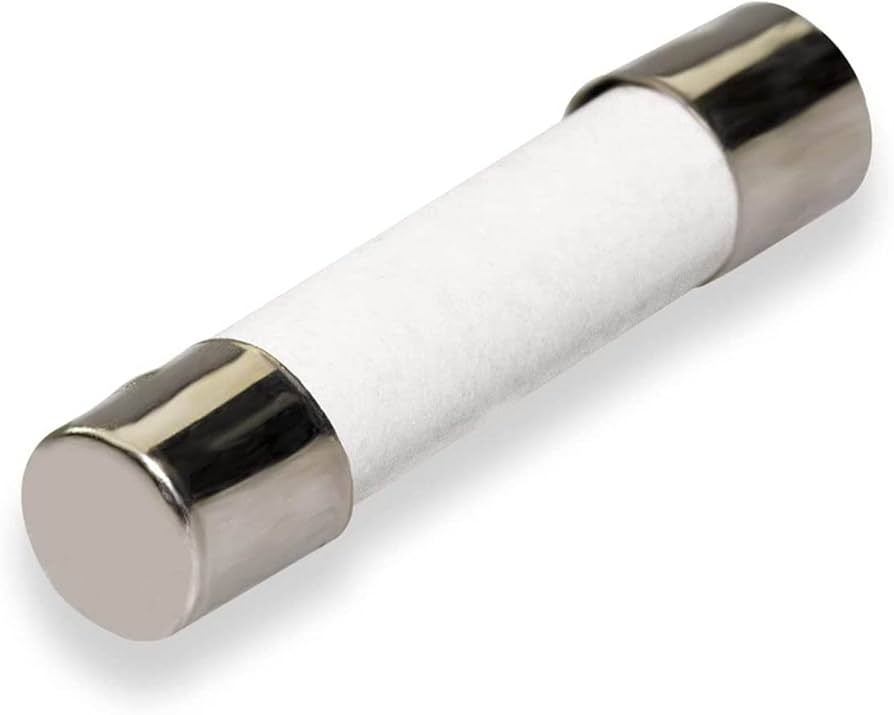

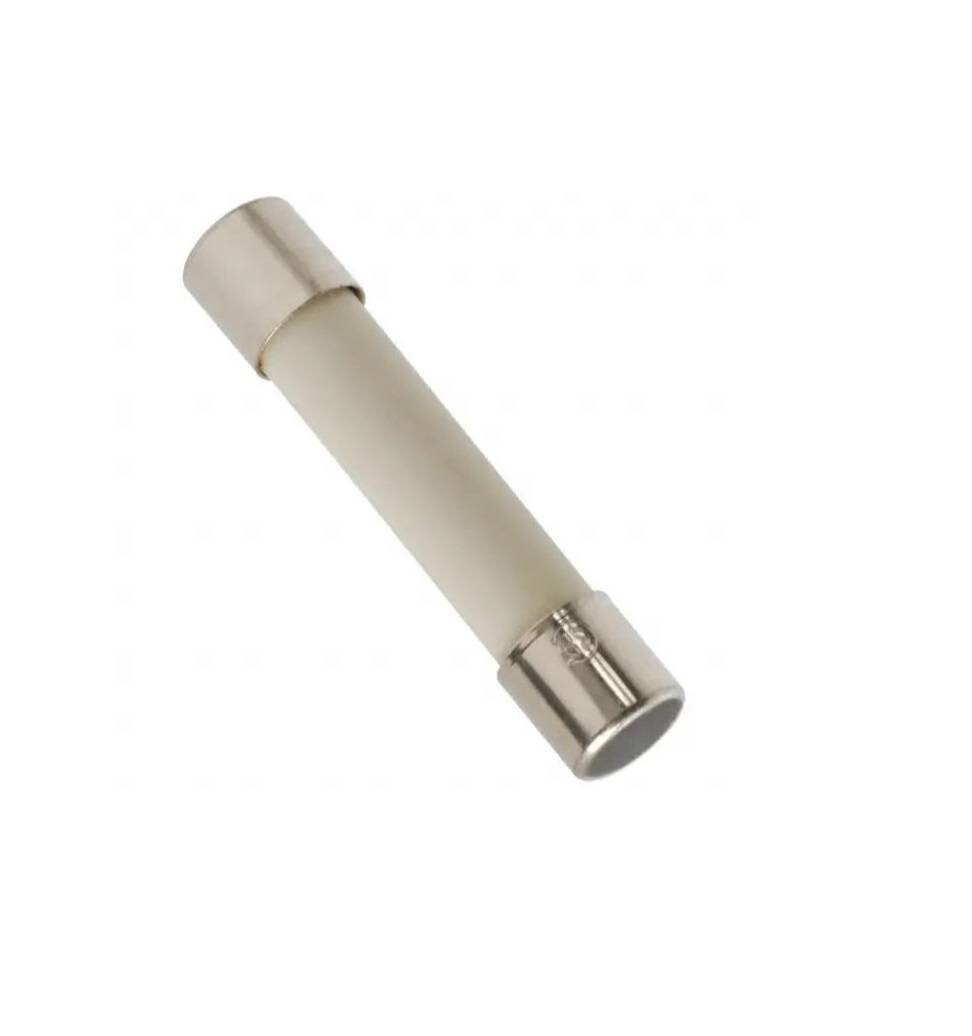

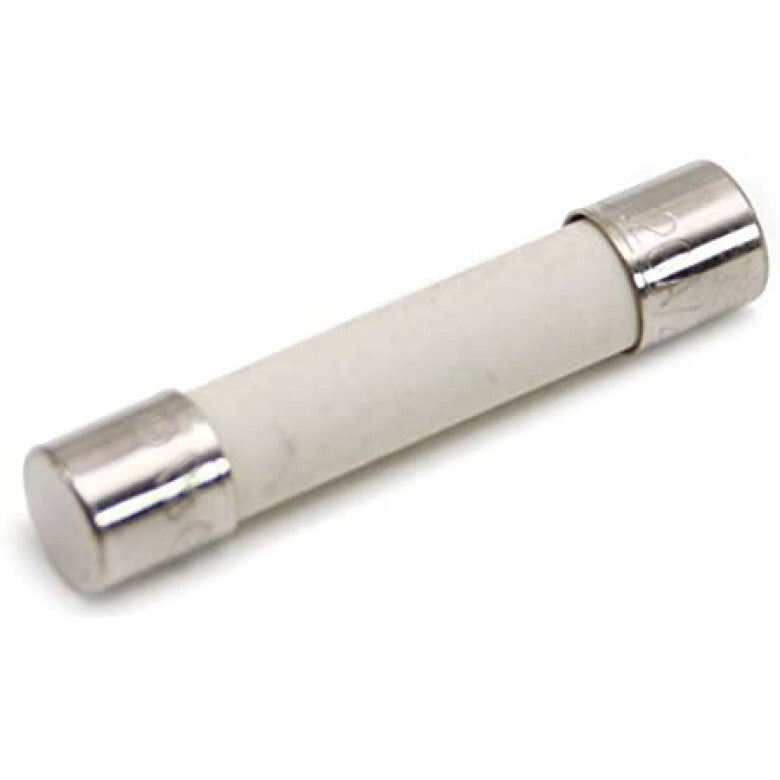

XPARTCO WE1X21975 Dryer Fuse, 30 Amp
The XPARTCO WE1X21975 is a 30 Amp, 250 Volt ceramic thermal fuse used in GE dryers as a safety cutoff component. It's wired into the heating circuit and monitors the dryer's operating temperature — if the unit overheats due to restricted airflow, a failing thermostat, or a clogged exhaust vent, this fuse blows and cuts power to the heating circuit (or the entire unit, depending on the model's wiring) to prevent overheating damage or a fire hazard. Unlike a resettable thermostat, this is a one-time safety device: once it blows, it must be replaced — it cannot be reset.
A blown thermal fuse is one of the most common reasons a GE dryer runs but produces no heat, or in some wiring configurations won't start at all and clicks when the start button is pressed. Because this fuse is a safety-critical protection device, it's worth also checking and clearing the cause of the overheating (lint buildup, a crushed or clogged exhaust duct, or a failed cycling thermostat) at the same time you replace it — otherwise the new fuse is likely to blow again.
Quick Answer
The XPARTCO WE1X21975 Dryer Fuse fixes a GE dryer that runs with no heat, or shuts off mid-cycle after getting hot. 30 Amp / 250 Volt ceramic thermal fuse, direct OEM fit and function. Classic symptom: dryer tumbles fine but clothes come out cold, or the dryer clicks and won't start. Always clear the cause of overheating (lint, vent restriction, or a failed thermostat) when replacing this fuse.
Common Problems This Part Fixes
- Dryer runs and tumbles but produces no heat
- Dryer starts, heats briefly, then shuts off mid-cycle
- Dryer won't start at all — clicking sound when the start button is pressed
- Dryer stops running entirely after the unit has overheated
- Clothes come out damp or cold after a full cycle
- Dryer previously showed signs of overheating (hot exterior, burning smell) before losing heat
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This thermal fuse directly replaces the following part numbers:
WE1X21975, 4248223, AGE25250, AP5957584, EAP10065161, PD00030077, PS10065161, 14QBP30CFB, 3AB, 6AB, SP, RABC, 314, ABC, CES-2, CES-4
Some listings also reference the earlier GE part number 4248223, which appears to correspond to the same fuse design. We were not able to fully confirm the exact supersession relationship between 4248223 and WE1X21975, so if your dryer's parts diagram shows 4248223, contact our support team with your model number and we'll verify fit before you order.
Compatibility
This thermal fuse is compatible with a wide range of GE dryer models, including:
- GTD42EASJ0WW, GTD42EASJ1WW, GTD42EASJ2WW, GTD42EASJ3WW
- GTD45EASJ0WS, GTD45EASJ1WS
- Many additional GTD-, DBXR-, and similar GE dryer model series
Note: GE used this same thermal fuse across dozens of dryer model and sub-model variants over several production years. The list above is only a sample. Check your dryer's model/serial tag (typically on the door frame or cabinet edge) and compare against your unit's parts diagram, or contact our support team with your exact model number to confirm fit before ordering.
Key Features
- Direct replacement thermal fuse for GE dryers
- 30 Amp, 250 Volt rating matches OEM specification
- Ceramic body 3AB-style fuse construction for heat resistance and reliability
- Cuts power to the heating circuit if the dryer overheats, protecting internal components
- Resolves no-heat, mid-cycle shutoff, and click-and-won't-start symptoms
- Simple, low-cost fix — typically a 15–20 minute repair with basic hand tools

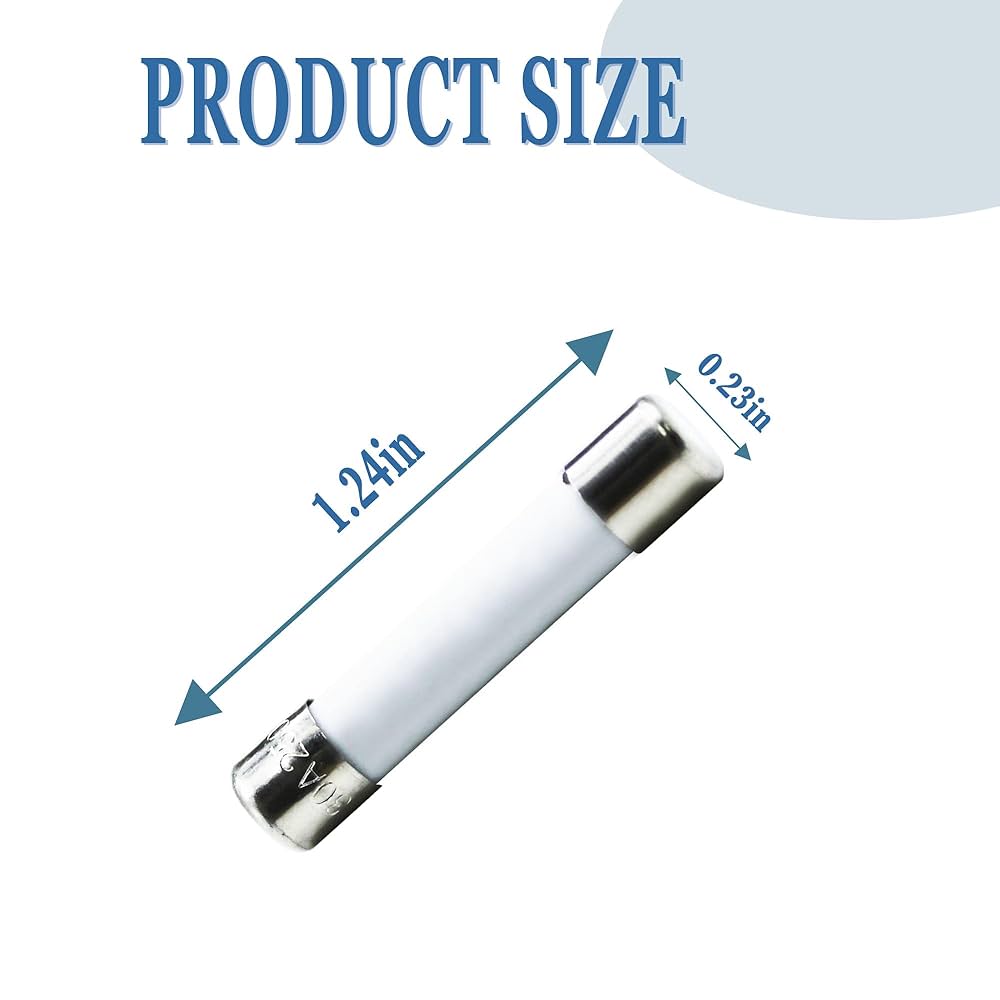

Product Specifications
| Part Number | XPWE1X21975 |
| OEM Part Number | WE1X21975 |
| Part Type | Dryer Thermal Fuse (Safety Cutoff) |
| Condition | Aftermarket Replacement |
| Amperage Rating | 30 Amp |
| Voltage Rating | 250 Volt |
| Fuse Type | 3AB Ceramic Thermal Fuse (Non-Resettable) |
| Application | GE Dryers |
Installation Notes
Frequently Asked Questions
My dryer runs but doesn't heat — is this the part I need?
A blown thermal fuse is one of the most common causes of a GE dryer that tumbles normally but produces no heat. It's worth testing the fuse for continuity with a multimeter before replacing it, since a few other components (the cycling thermostat, igniter on gas models, or heating element) can cause similar symptoms.
Can this fuse be reset instead of replaced?
No. This is a one-time thermal fuse, not a resettable thermostat or breaker. Once it blows, it's permanently open and must be replaced — there's no reset button or procedure.
Why did my thermal fuse blow in the first place?
This fuse blows in response to excessive heat, usually caused by restricted airflow — a clogged lint trap, a crushed or blocked exhaust duct, or a bird's nest or lint buildup in the outside vent hood — or by a failed cycling thermostat that no longer regulates temperature correctly. Clear the airflow path and check the thermostat when you replace the fuse, or the new one is likely to blow again.
Where is this fuse located on my dryer?
On most GE dryers it's mounted on or near the heater box/blower housing at the rear of the unit. Some installers find it tucked in a spot that isn't obvious even with the parts diagram in hand, so take your time locating it and confirm it visually matches before removing the old one.
