XPARTCO W11130208 Refrigerator LED Light Module
Single aftermarket LED light module for select Whirlpool-built refrigerators; related to current OEM service kit W11683241.
Product Overview
The XPARTCO W11130208 Refrigerator LED Light Module is a quality aftermarket replacement for select refrigerator interior LED modules used in Whirlpool-built appliances.
It helps restore cabinet lighting when an original LED module is dim, flickering, intermittent, or no longer illuminates.
Quick Answer
This listing is for one XPARTCO W11130208-style LED light module. W11130208 was superseded by Whirlpool service kit W11683241. The current OEM W11683241 service kit contains multiple LED modules and splice connectors, and Whirlpool specifies replacing all LED light assemblies in applicable installations. This single XPARTCO module should not be confused with the complete 12-light OEM service kit.
Common Problems This Part May Fix
- Refrigerator interior light is out
- LED module flickers or operates intermittently
- Interior lighting is dim
- One LED module no longer illuminates
- Cabinet lighting works inconsistently when the door is opened
Replaces and Cross-References
W11130208, W10758333, W10412708, W10279030, W10637153, W10876279, AP6262381, PS12347525,
Single Light used in Kit W11683241, 4591417, 4982094, AP6262381, AP7216885, EAP17216451, EAP6262381, PS12347525, PS17216451, AWP46249, PD00084706
Related current OEM service kit: W11683241. The OEM W11683241 kit is a multi-light service kit, not a one-piece direct equivalent to this single-module listing.
Compatibility
Used on select Whirlpool-built refrigerators sold under Whirlpool, KitchenAid, Maytag, JennAir, Kenmore, and related brands. Compatible model examples include:
Important: This is only a partial model list. Refrigerator LED systems can use multiple similar-looking modules and later service kits. Verify the complete refrigerator model number, original light-module number, connector style, and service instructions before purchase.
Key Features
- Quality XPARTCO aftermarket replacement
- Single refrigerator LED light module

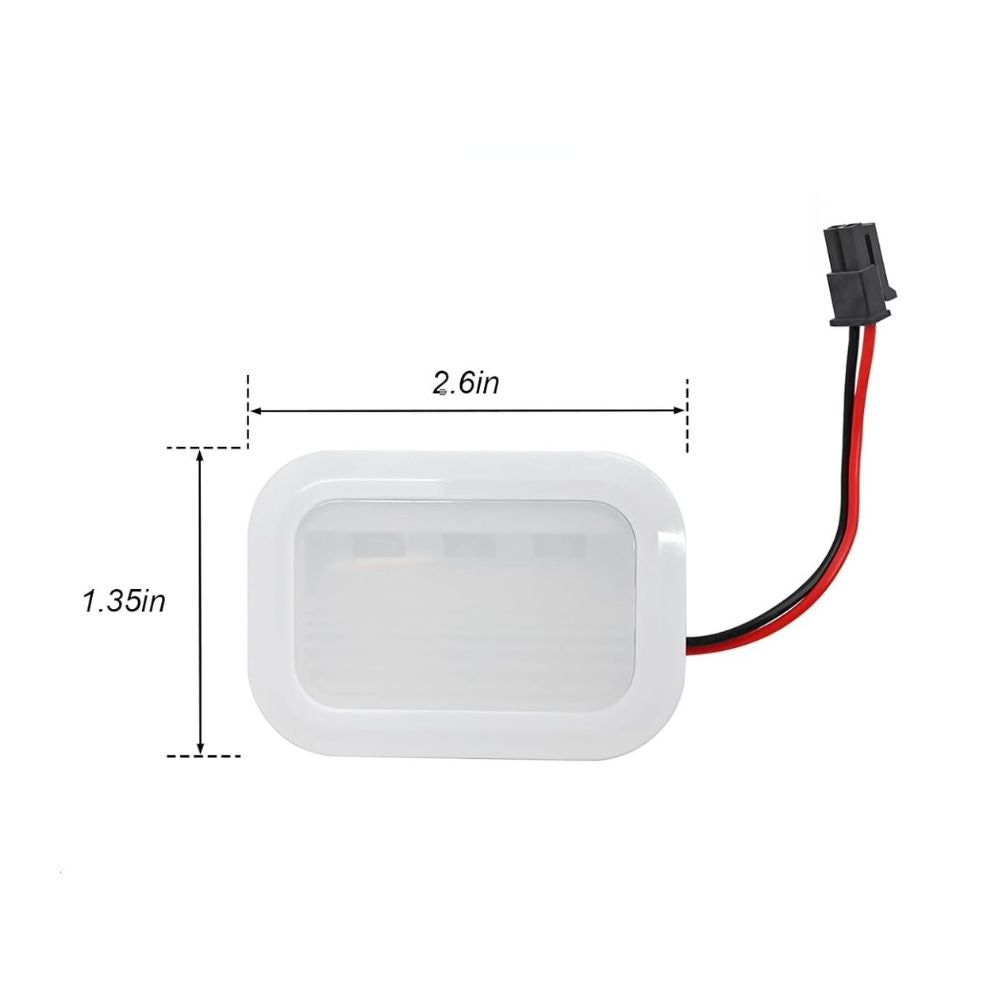

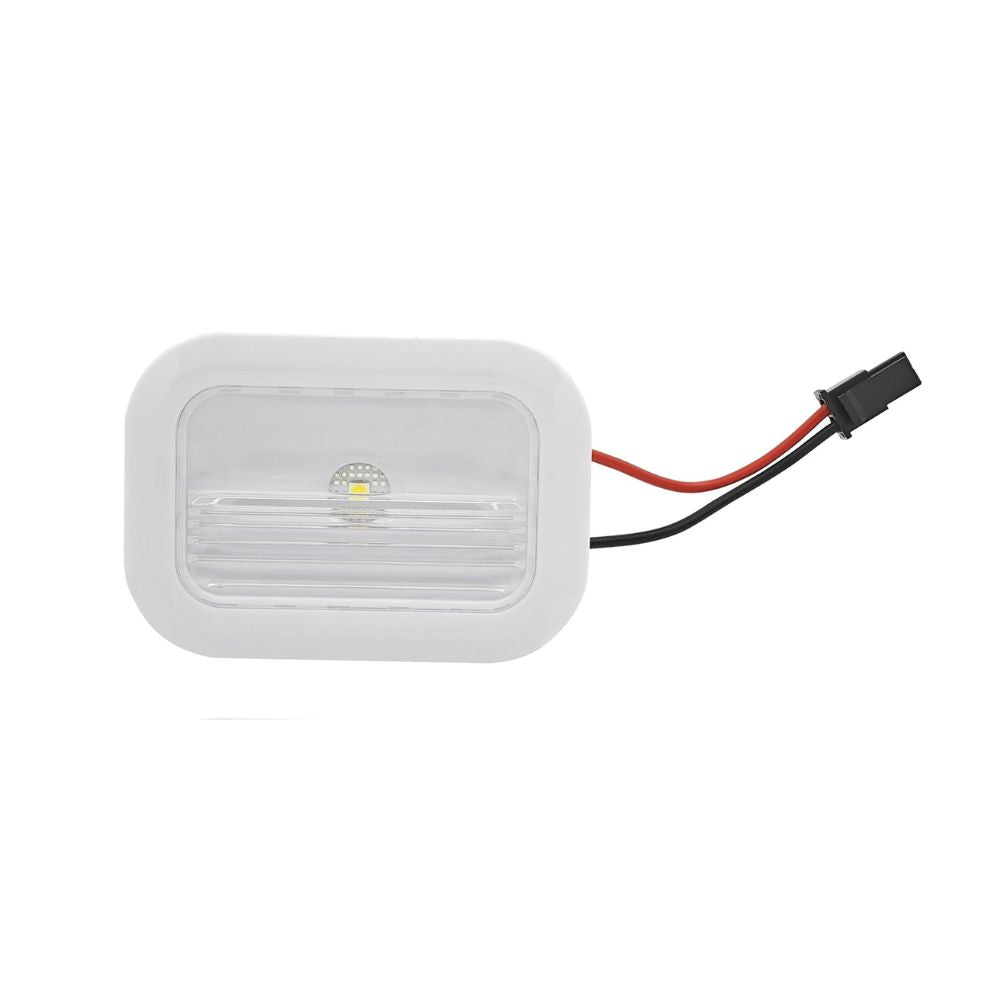

- White bezel-style module
- Designed for select Whirlpool-built refrigerators
- Helps restore bright interior cabinet illumination
- Replaces multiple earlier Whirlpool LED module numbers
Product Specifications
| XPARTCO Part Number | XPW11130208 |
| Brand | XPARTCO |
| Part Type | Refrigerator LED Light Module |
| Condition | New |
| Part Quality | Aftermarket Replacement |
| Application | Refrigerator Interior Lighting |
| Package Quantity | 1 LED Light Module |
| Related OEM Service Kit | W11683241 (multi-light kit) |
Important W11683241 Service-Kit Notice

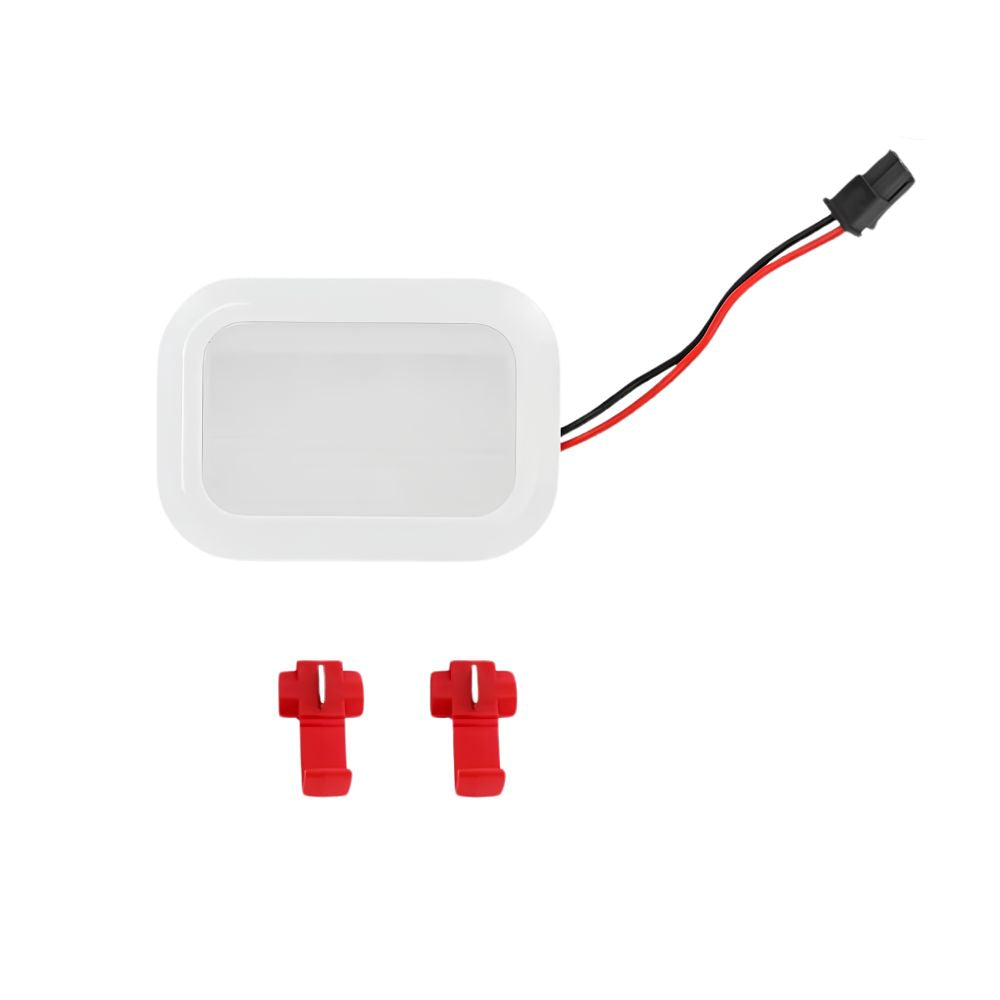

Whirlpool's current OEM replacement W11683241 is sold as an updated LED service kit that includes multiple lights and splice connectors, and Whirlpool instructs that all LED light assemblies be replaced when that kit is used.
This XPARTCO listing is for one W11130208-style aftermarket LED module. Do not assume one module is equivalent to the entire W11683241 kit. Follow the service procedure specified for your exact refrigerator model.
Installation Notes
- Disconnect the refrigerator from electrical power before service.
- Confirm the exact model number and original LED-module configuration.
- Carefully release the original light module without damaging the liner or wiring.
- Compare the connector, housing, and mounting arrangement before connection.
- Connect and seat the replacement securely according to the refrigerator service procedure.
- Restore power and confirm proper interior lighting operation.
Diagnostic note: Some refrigerator LED modules are interconnected. One failed module can affect other lights. If multiple lights are out, diagnose the complete lighting circuit and check whether the manufacturer specifies an updated full-light service kit.
Frequently Asked Questions
Is this the complete W11683241 12-light service kit?
No. This listing is for one XPARTCO W11130208-style LED module. The current Whirlpool W11683241 OEM service kit contains multiple LED modules and connectors.
Does W11683241 replace W11130208?
Yes. Whirlpool lists W11130208 among the earlier LED-module numbers superseded by W11683241.
Is this a Genuine Whirlpool OEM part?
No. It is a quality XPARTCO aftermarket replacement module.
Will replacing one module fix all dark refrigerator lights?
Not always. Some models use several interconnected LED modules, and the manufacturer may require an updated multi-light service kit. Diagnose the complete lighting system before replacing parts.
Shop With Confidence
Verify your complete refrigerator model number and original LED-module configuration before ordering. Because Whirlpool later superseded W11130208 with a multi-light service kit, compatibility and service-procedure verification are especially important for this part.
