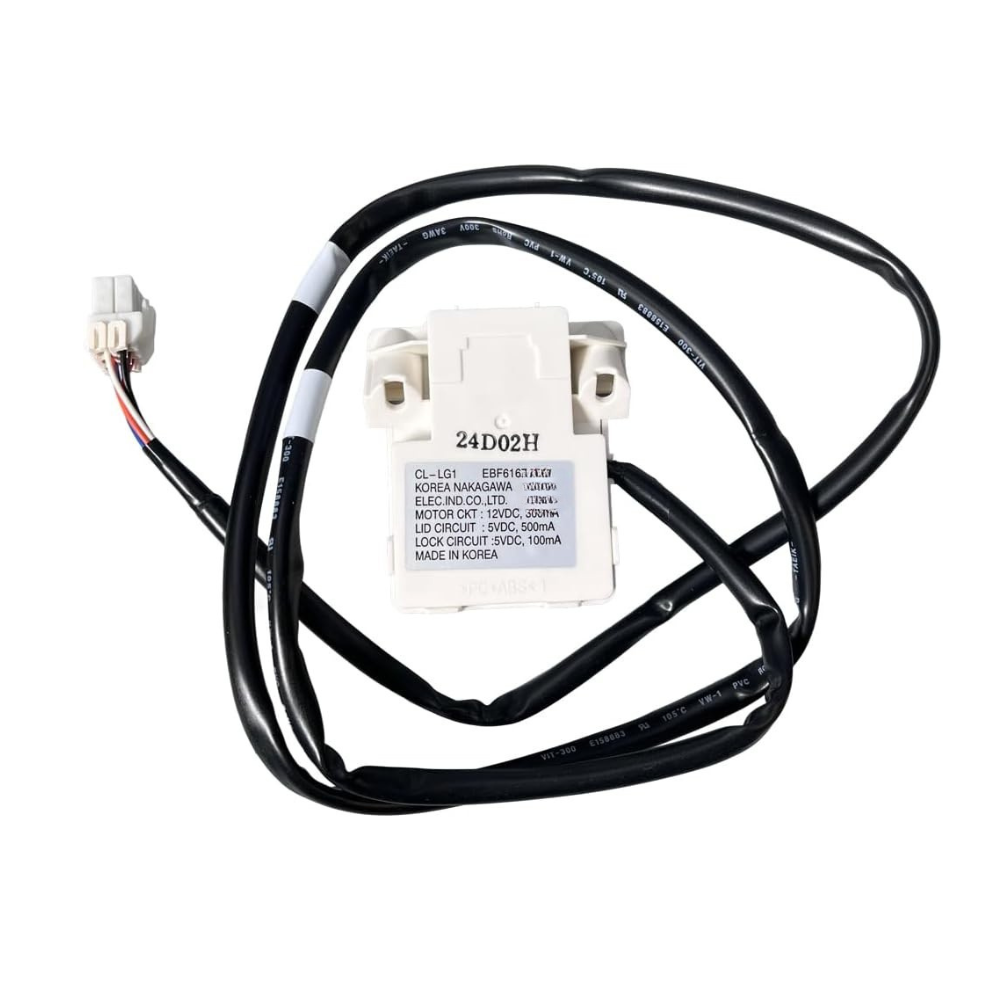

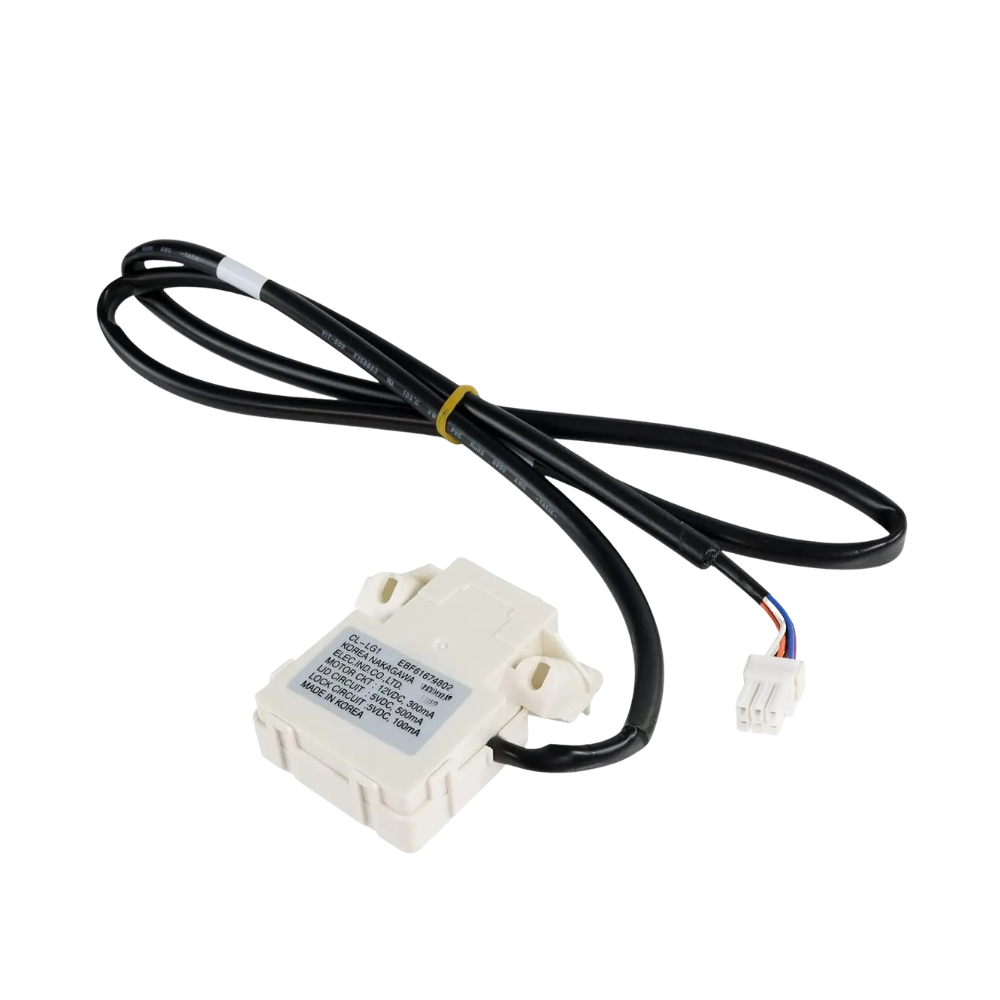

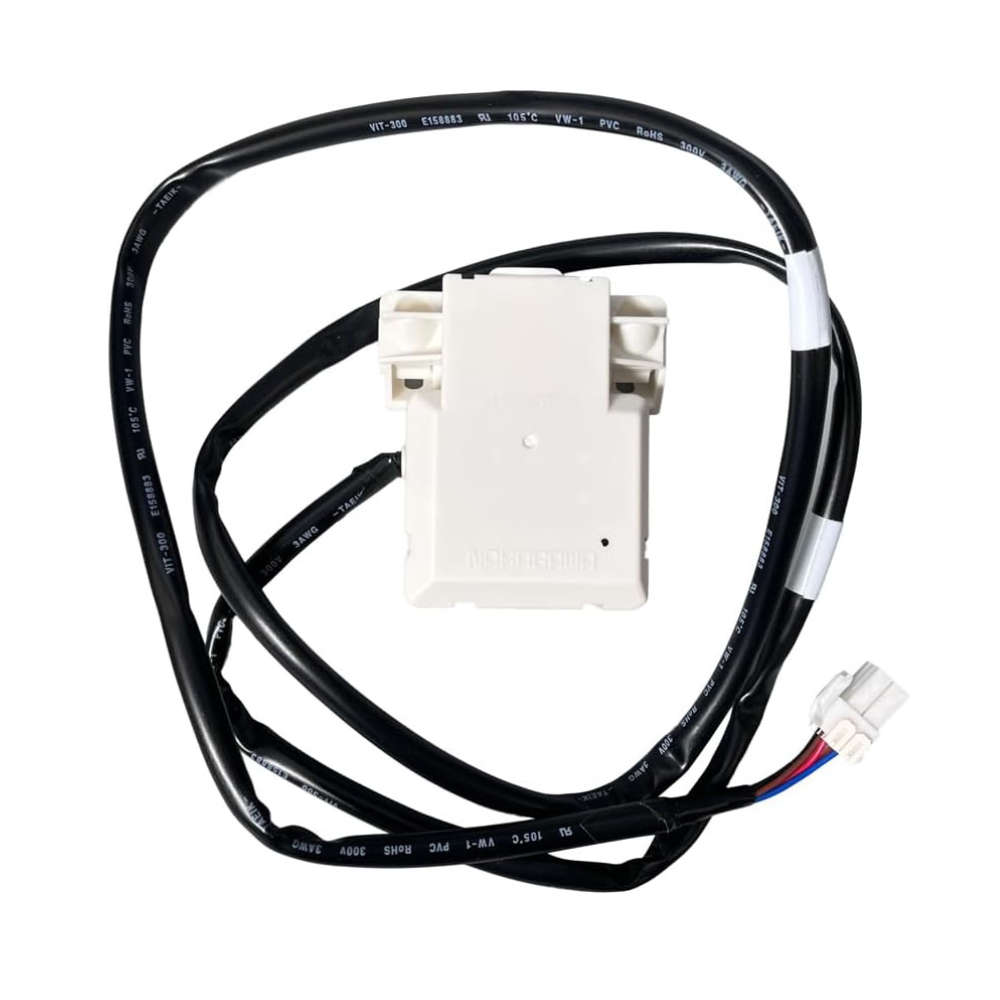

XPARTCO EBF61674802 Washer Lid Switch and Lock Assembly

XPARTCO EBF61674802 Washer Lid Switch and Lock Assembly – Compatible with LG & Kenmore Washers

Product Description

Restore safe operation and reliable cycle performance with the XPARTCO EBF61674802 Washer Lid Switch and Lock Assembly. The Lid Switch and Lock Assembly is a replacement parts for select Kenmore, LG washing machine models. It contains both the switch that detects when the lid is closed, as well as the metal lock mechanisms that securely engage the lid during active cycles.

Replaces Part Numbers

EBF61674802, EBF60665201, PD00023037, EAP8751171, TAW36158136, AP5785599, PS8751171.

Compatibility

This replacement washer lid switch and lock assembly fits select LG and Kenmore (LG-manufactured) top-load washers.

Example compatible models include (but are not limited to):
LG WT7300CW, WT7100CW, WT7800CW
Kenmore 796.31523210, 796.31522210

Always verify your washer’s model number before ordering.
Contact our support team if you’re unsure.

✅ Key Features

• 🔄 Aftermarket Replacement – Matches OEM fit and electrical performance

• 🔒 Secure Lid Locking – Ensures washer operates only when lid is closed

• ⚙️ Integrated Switch & Lock – All-in-one assembly for reliable operation

• 💰 Cost-Effective Repair – Quality alternative to OEM pricing

• 🛡️ Fixes Common Issues – Solves washer not starting, lid-lock errors, or interrupted cycles

📐 Product Specification

• Part Number: EBF61674802

• Component Type: Washer Lid Switch and Lock Assembly

• Voltage: 120V AC

• Material: Reinforced plastic housing with internal switch and lock mechanism

• Mounting: Direct-fit top-panel installation

• Quality Level: Aftermarket replacement (not OEM)

🛠️ Installation Notes

Tools Needed: Phillips screwdriver, flathead screwdriver

⚠️ Safety First: Unplug the washer before servicing to avoid electrical shock.

Steps:

1. Disconnect washer power.

2. Open the top panel to access the lid lock assembly.

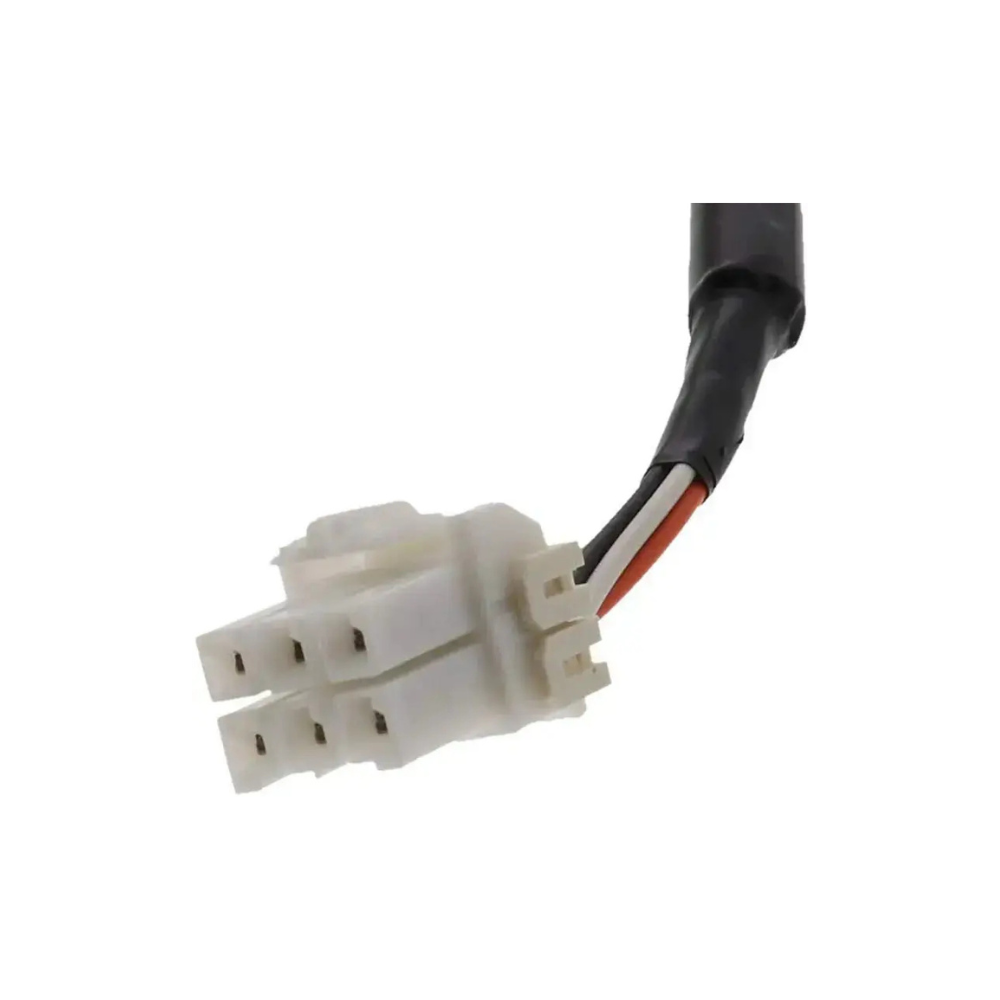

3. Disconnect the wiring harness from the old assembly.

4. Remove mounting screws or release locking tabs.

5. Install the new XPARTCO EBF61674802 assembly.

6. Reconnect wiring, close the panel, and restore power.

7. Test washer operation and lid locking.

⏱️ Time Required: 15–25 minutes
