330031 Surface Burner Receptacle Kit 5303935058, WB17X5091 , 814399

XPARTCO 330031 Surface Burner Receptacle Kit – Compatible with Whirlpool, Maytag & Kenmore Ranges

Product Description

Restore reliable burner operation and eliminate heating issues with the XPARTCO 330031 Surface Burner Receptacle Kit. This high-quality aftermarket replacement kit includes a surface element receptacle block with high-temperature wire leads, designed to deliver proper power to electric range burners. A worn or burned receptacle can cause burners not to heat, heat intermittently, or spark. Replacing it with this durable XPARTCO kit ensures a secure electrical connection and dependable cooking performance.

XPARTCO is a trusted aftermarket brand offering appliance replacement parts built to OEM-equivalent specifications at a cost-effective price.

Replaces Part Numbers

This kit replaces part numbers 330031, AP3075808, W10841094, 14200040, 14200233, 14203070, 14205001, 14205727, 14209631, 14210007, 14254131, 3374, 42147, 42153, 4335480, 5303935058, 550226, 71930, 74-06-132, 74-06-190, 766339, 99989649, 9E28000199, AH340571, EA340571, FSP330031, PS340571, R0157526, R0167091, R300, TS300, W10116799, W10116803, WB17X210, Y0042147, Y0042153, Y0045536, Y0045546, Y0051088, Y0054794, Y0067069, Y0071930, Y0071931, Y0075054, Y0086726, Y0088866, Y0089227, Y0089291, Y0089336, Y0090094, Y0300678, Y0308306, Y89336, YC2711501, YC2716501, YR0181149, 5303935058, 5301167733, 08002879, 08002916, 08002917, 08002918, 08002919, 08008697, 08011962, 08012830, 08012865, 09957075, 12871, 318112500, 318366400, 42822, 53-003, 709T026P01, 709T026S01, 709T026S02, 709T034P01, 709T045P01, 868464, 9175, A1505240, A1505979, G54972, G55667, K001167470, K001315483, K001319226, K1167204, K1167205, K1167470, K1310415, K1311332, K1312169, K1312179, K1312800, K1315200, K1315483, K1319226, K1323982, K5043104, K5043105, K5137801, PS470125, R201A, RR104, RR109, RR110, RR117, S5303310284, AP2591744, WB17X5091, AP2021538, 245919, AH232634, EA232634, PS232634, R117.

Compatibility

This replacement surface burner receptacle kit fits select Whirlpool, Maytag, Kenmore (Whirlpool-manufactured), Amana, Estate, and Roper electric ranges.

Commonly used on 6-inch and 8-inch surface elements.

Always verify your range’s model number before ordering.
Contact our support team if you’re unsure.

✅ Key Features

• 🔄 Aftermarket Replacement Kit – Matches OEM fit and electrical performance

• 🔥 High-Temperature Receptacle – Designed for repeated heating cycles

• 🔧 Includes Wire Leads – Complete repair solution

• ⚡ Improves Electrical Contact – Restores consistent burner heating

• 💰 Cost-Effective Repair – Reliable alternative to OEM kits

📐 Product Specification

• Part Number: 330031

• Component Type: Surface Burner Receptacle Kit

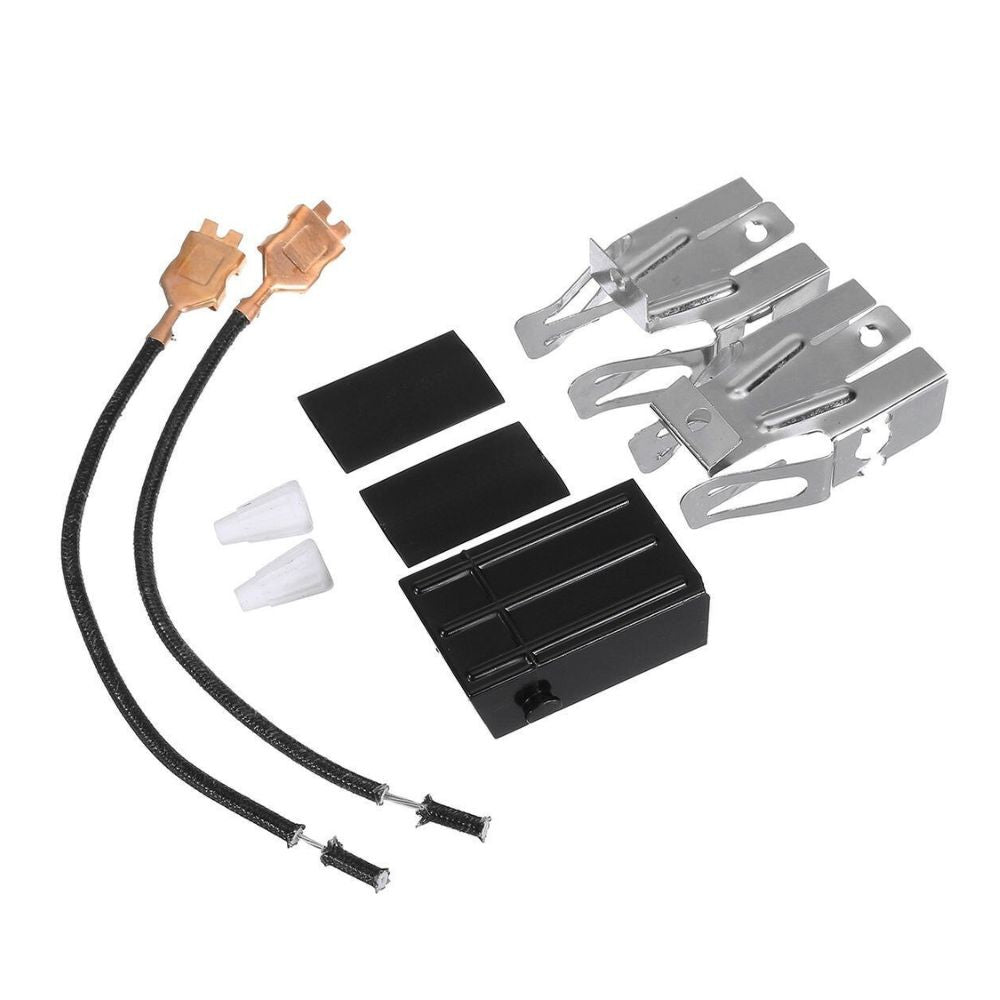

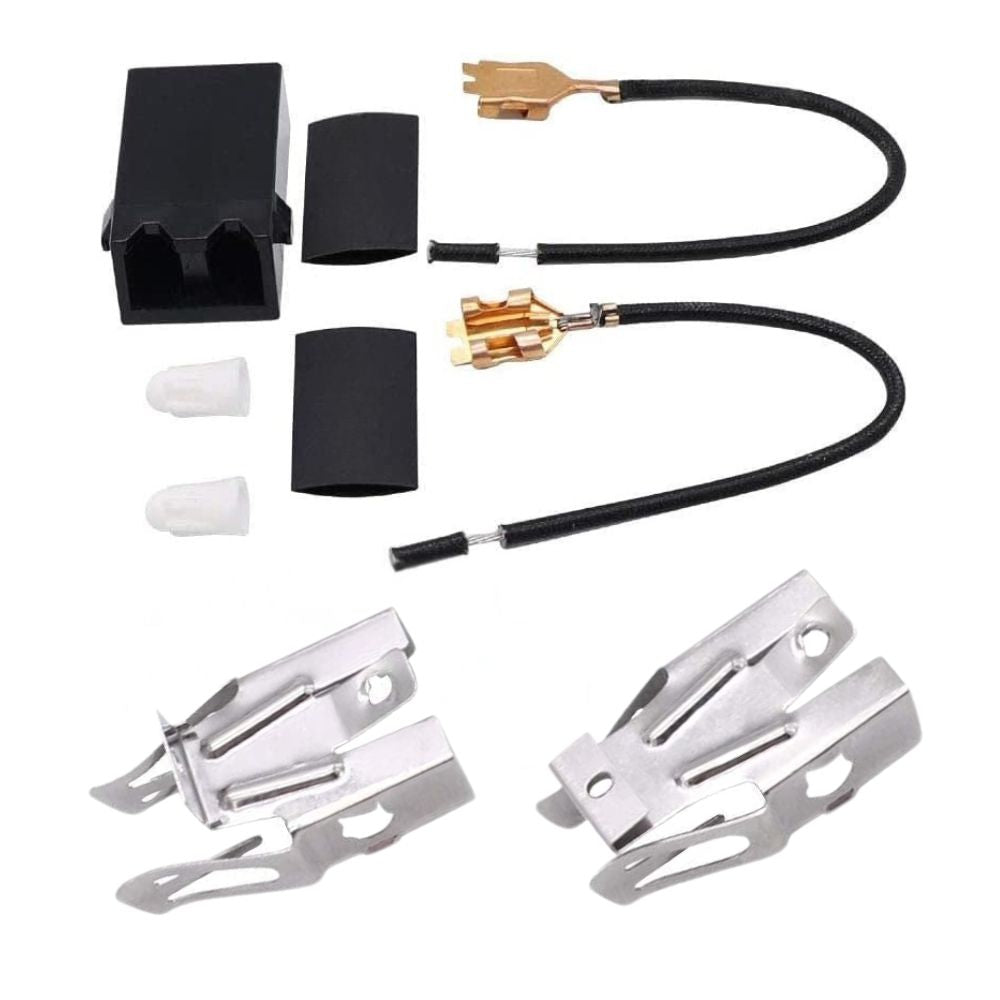

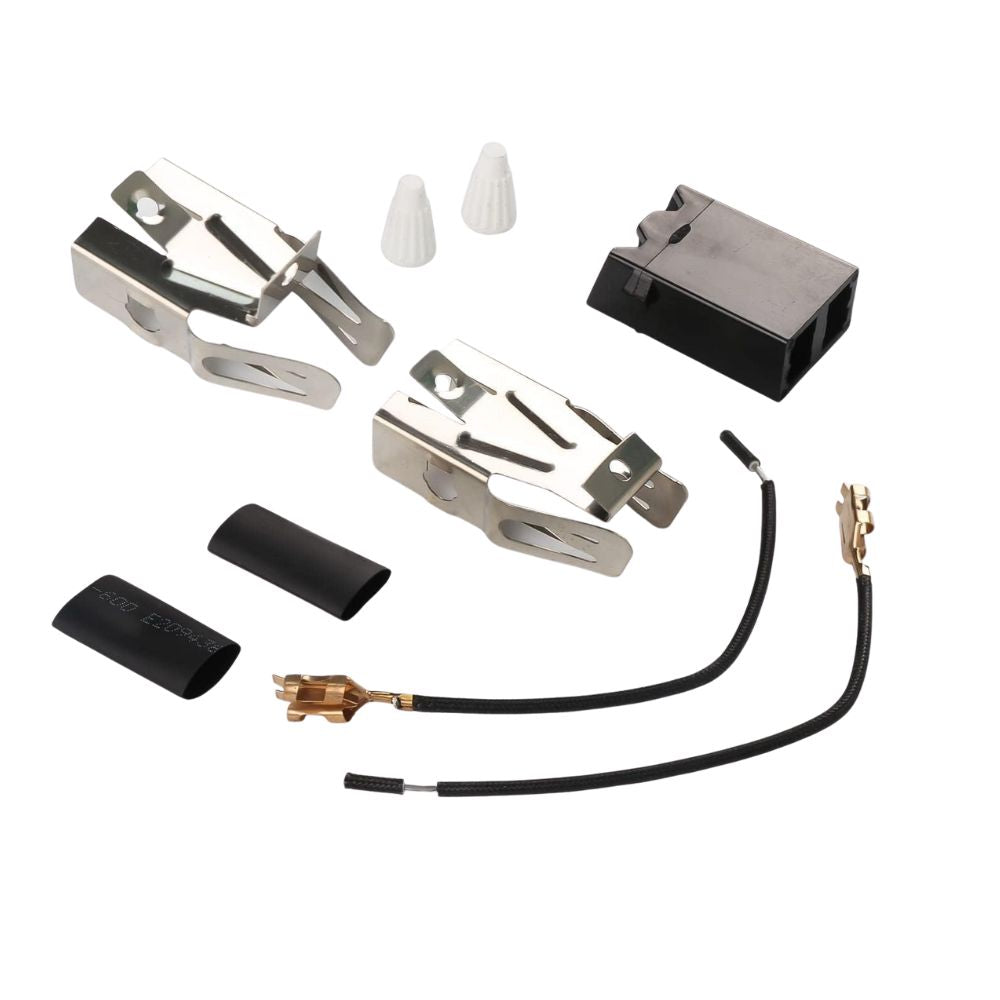

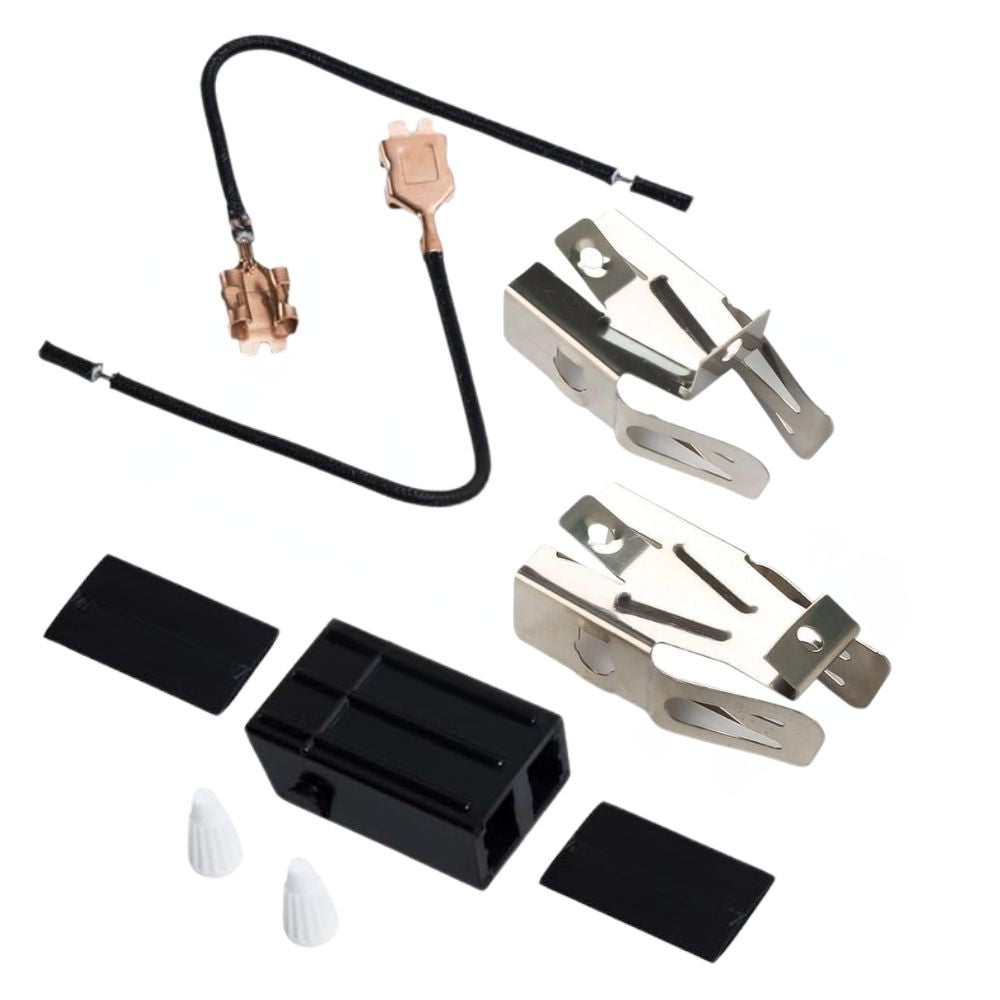

• Includes: Receptacle block with high-temp wires and two mounting bracket.

• Application: Electric range surface burner connection

• Voltage: 240V

• Mounting: Plug-in / screw-mounted (model dependent)

• Quality Level: Aftermarket replacement (not OEM)

🛠️ Installation Notes

Tools Needed: Phillips screwdriver, wire cutters/strippers

⚠️ Safety First: Disconnect power at the breaker before servicing the range to avoid electrical shock.

Basic Steps:

1. Turn off power to the range at the breaker.

2. Remove the burner element and access the receptacle.

3. Disconnect the old receptacle and cut damaged wires if needed.

4. Connect the new XPARTCO 330031 receptacle using approved wire connectors.

5. Secure the receptacle and reinstall the burner element.

6. Restore power and test burner operation.

⏱️ Time Required: 20–30 minutes
