XP5KV07A Microwave High Voltage Fuse 0.7A (700mA), 5kV

XP5KV07A Microwave High Voltage Fuse 0.7A (700mA), 5kV – Compatible with GE, LG, Whirlpool, Samsung, and Panasonic Microwaves

Product Description

Protect your microwave’s high-voltage system with the XP5KV07A Microwave High Voltage Fuse (0.7A, 5kV). This high-quality aftermarket replacement safeguards essential high-voltage components—including the magnetron, diode, and capacitor—from power surges and electrical overloads. If your microwave is completely dead or stops heating, a blown HV fuse is a common cause. Replacing it with this XPARTCO fuse restores safe, reliable operation.

Replaces Part Numbers

5KV0.7A, 700mA 5kV Fuse, HVF-07A, AP-HV07A, and equivalent high-voltage 0.7A microwave fuses

Compatibility

This replacement high-voltage fuse fits many GE, LG, Samsung, Whirlpool, Panasonic, Sharp, Kenmore, Maytag, and other leading microwave brands.

Common compatible models include (but are not limited to):
GE JVM3160RFSS, LG LMV2031ST, Samsung ME19R7041FG, Whirlpool WMH31017HS, Panasonic NN-SN686S.

Always verify your microwave’s fuse specs before ordering. Contact our support team if you’re unsure.

✅ Key Features

• 🔄 Aftermarket Replacement – Matches OEM electrical ratings and safety performance

• ⚡ High-Voltage Protection – Rated 0.7A (700mA) at 5,000 volts for microwave HV systems

• 💰 Budget-Friendly Fix – Reliable option for restoring microwave operation

• 🛠️ Easy Installation – Direct-fit size compatible with standard HV fuse holders

• 🛡️ Fixes Common Issues – Solves “microwave dead,” no heat, or fuse-blown conditions

📐 Product Specification

• Part Number: XP5KV07A

• Component Type: Microwave High Voltage Fuse

• Amperage: 0.7A (700mA)

• Voltage Rating: 5 kV

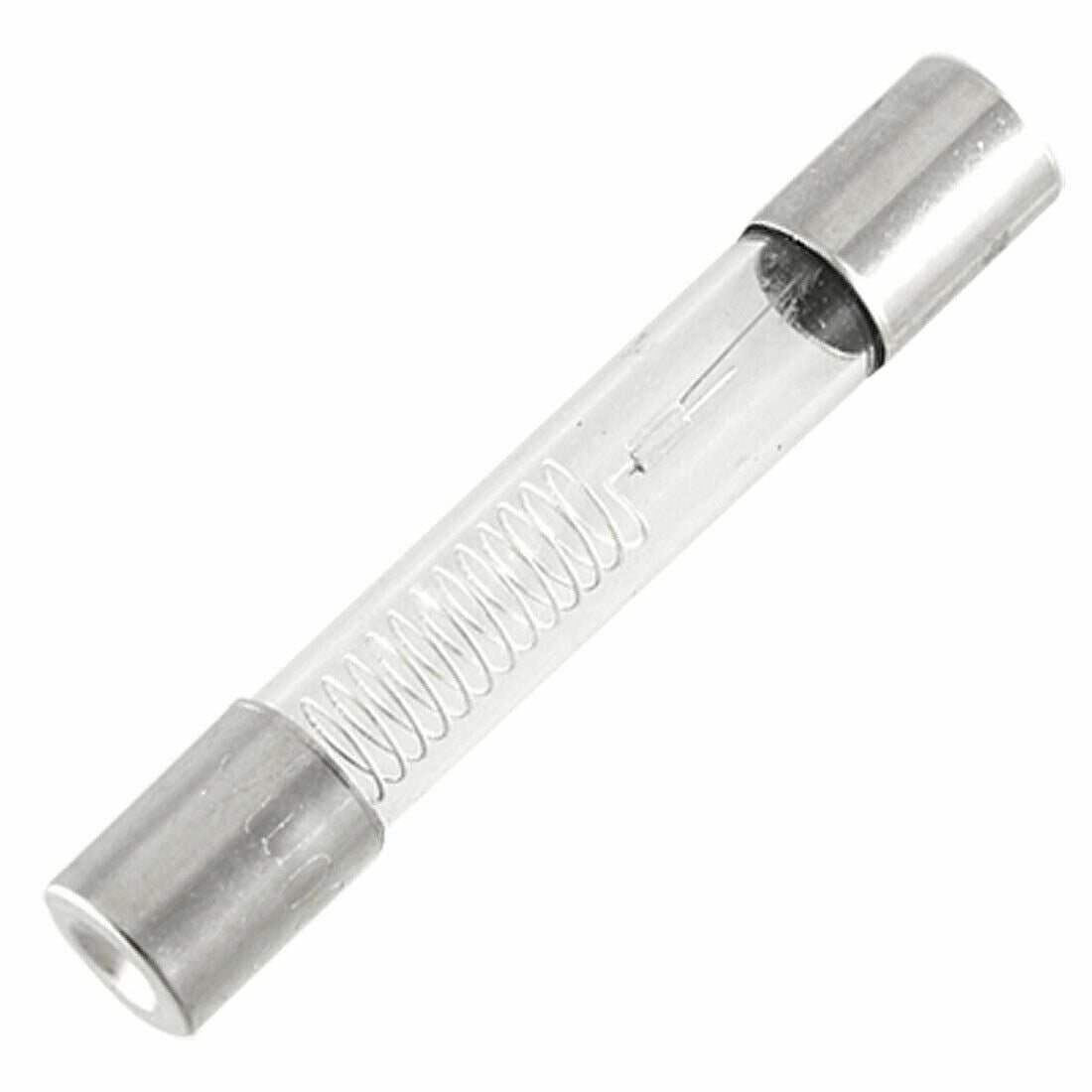

• Material: Ceramic-body fuse with metal end caps

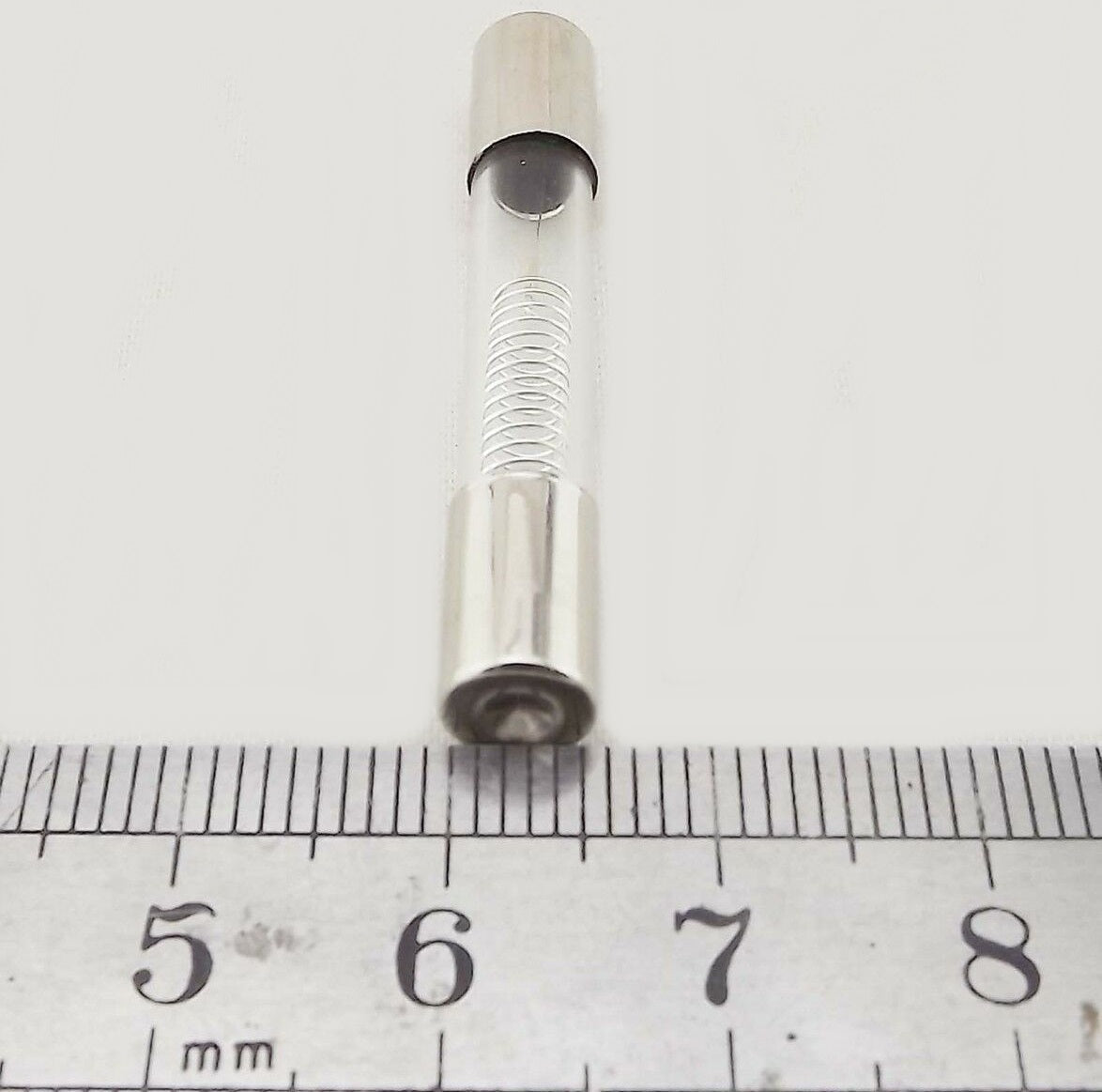

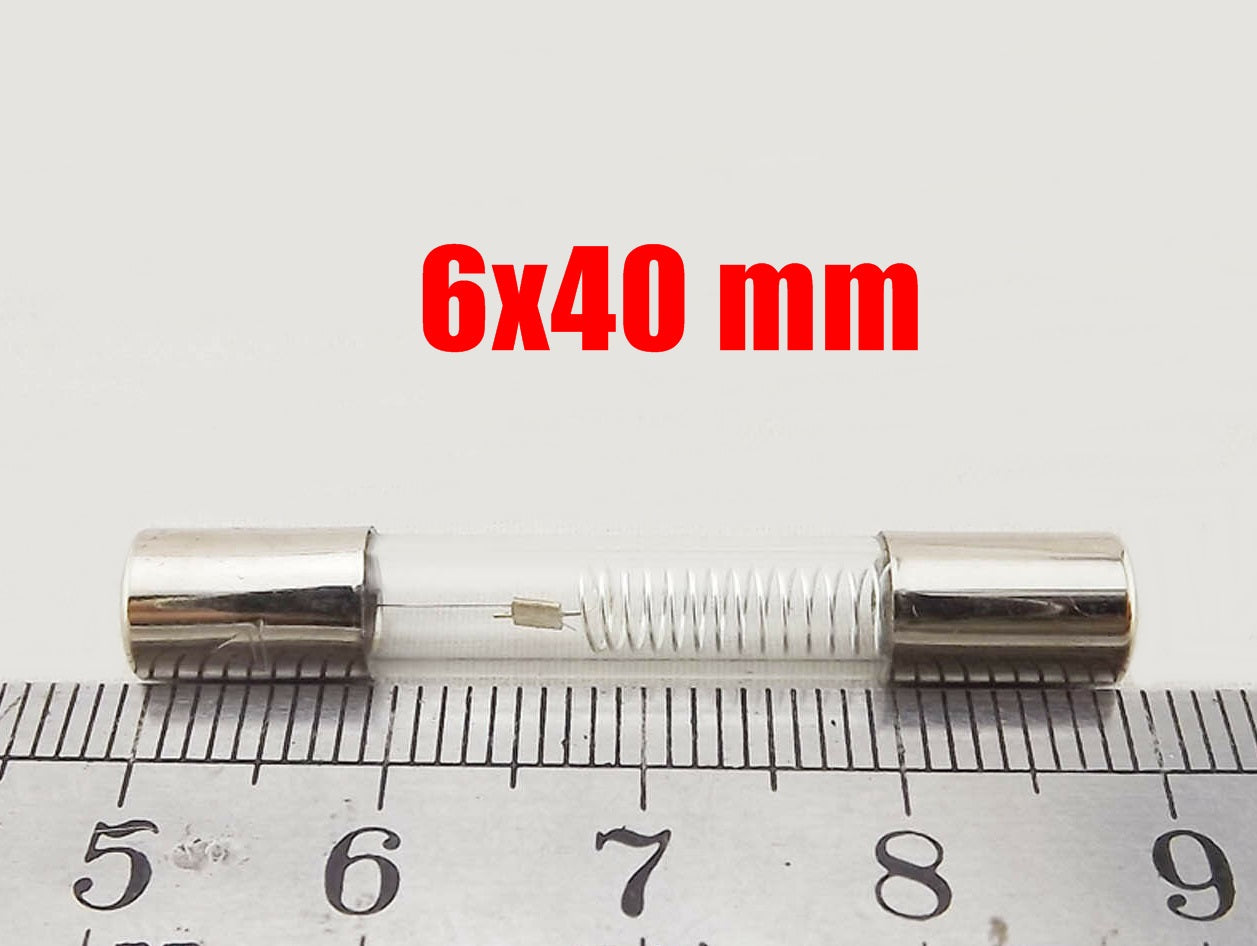

• Dimensions: Standard HV fuse size (approx. 6×40 mm)

• Compliance: Meets high-voltage protection standards (not OEM)

🛠️ Installation Notes

Tools Needed: Phillips screwdriver, needle-nose pliers

⚠️ Safety First: Microwave repairs involve high voltage even when unplugged. Only qualified persons should replace HV fuses.

Steps (for trained technicians):

1. Unplug the microwave and safely discharge the HV capacitor.

2. Remove outer cabinet screws and lift the cover.

3. Locate the high-voltage fuse near the HV transformer and capacitor.

4. Remove the blown fuse and install the new XP5KV07A fuse.

5. Reassemble the unit and test heating operation.

⏱️ Time Required: 10–20 minutes (professional preferred)
