XPARTCO 5300622034 Dryer Heating Element Coil (Restring)

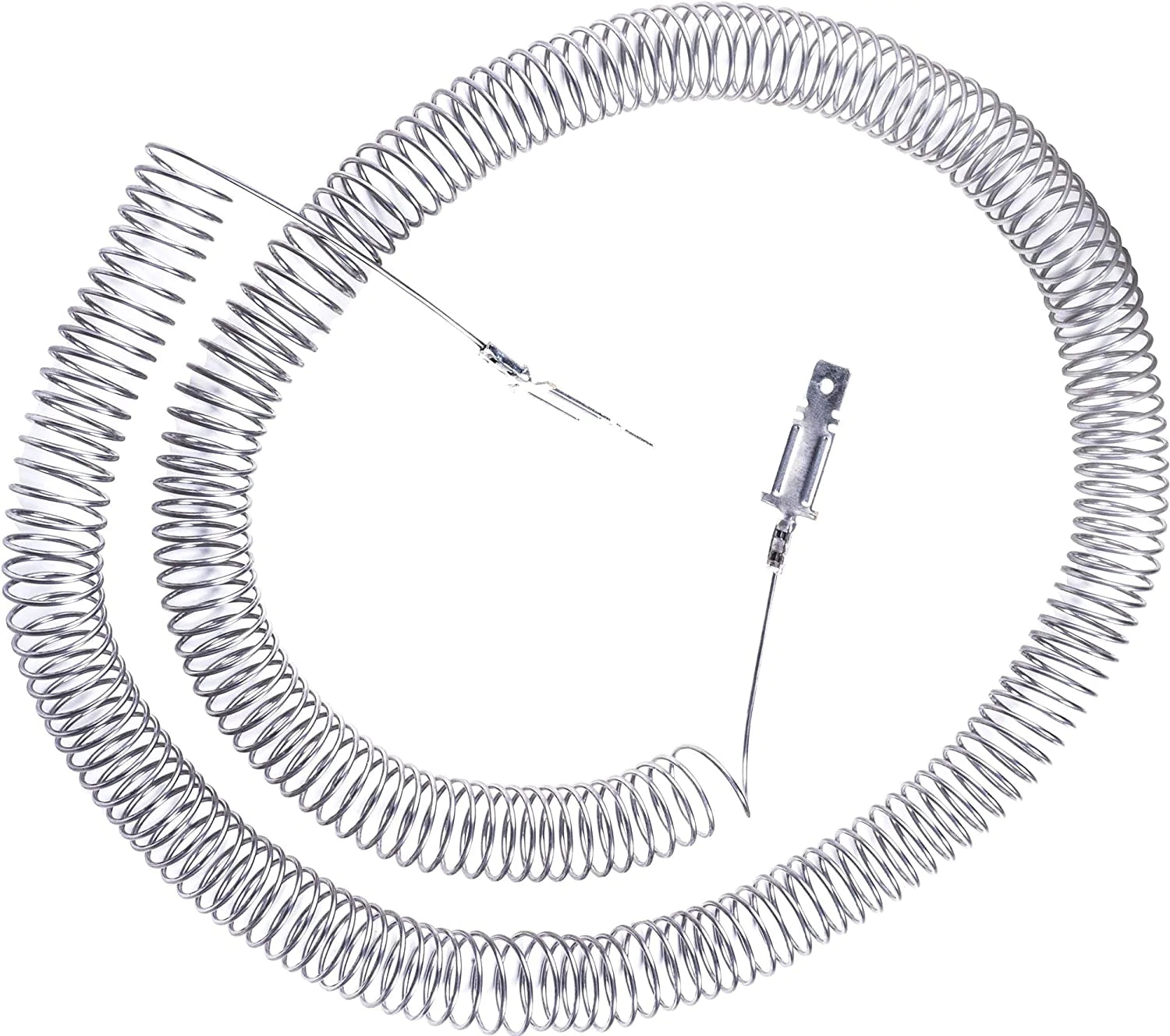

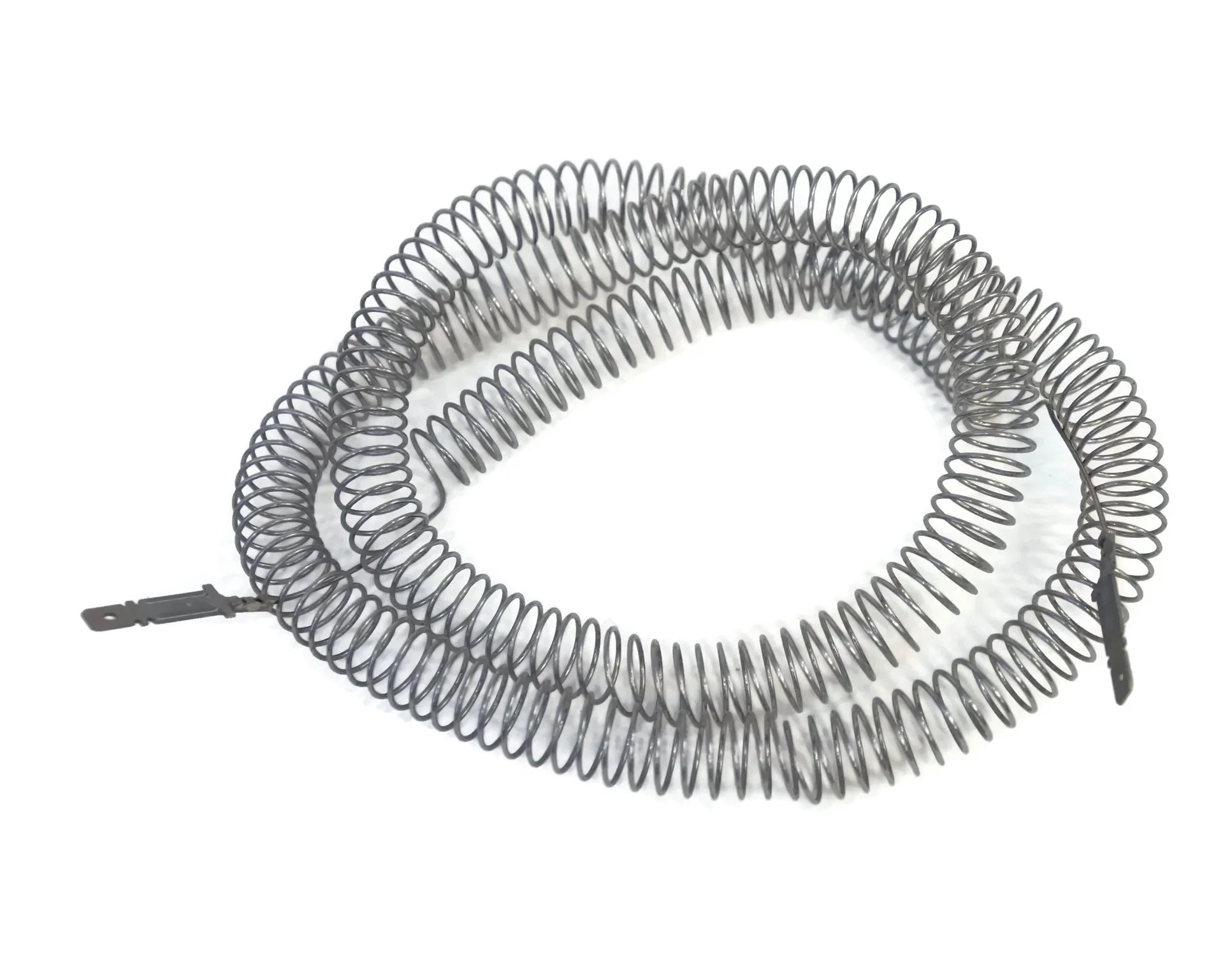

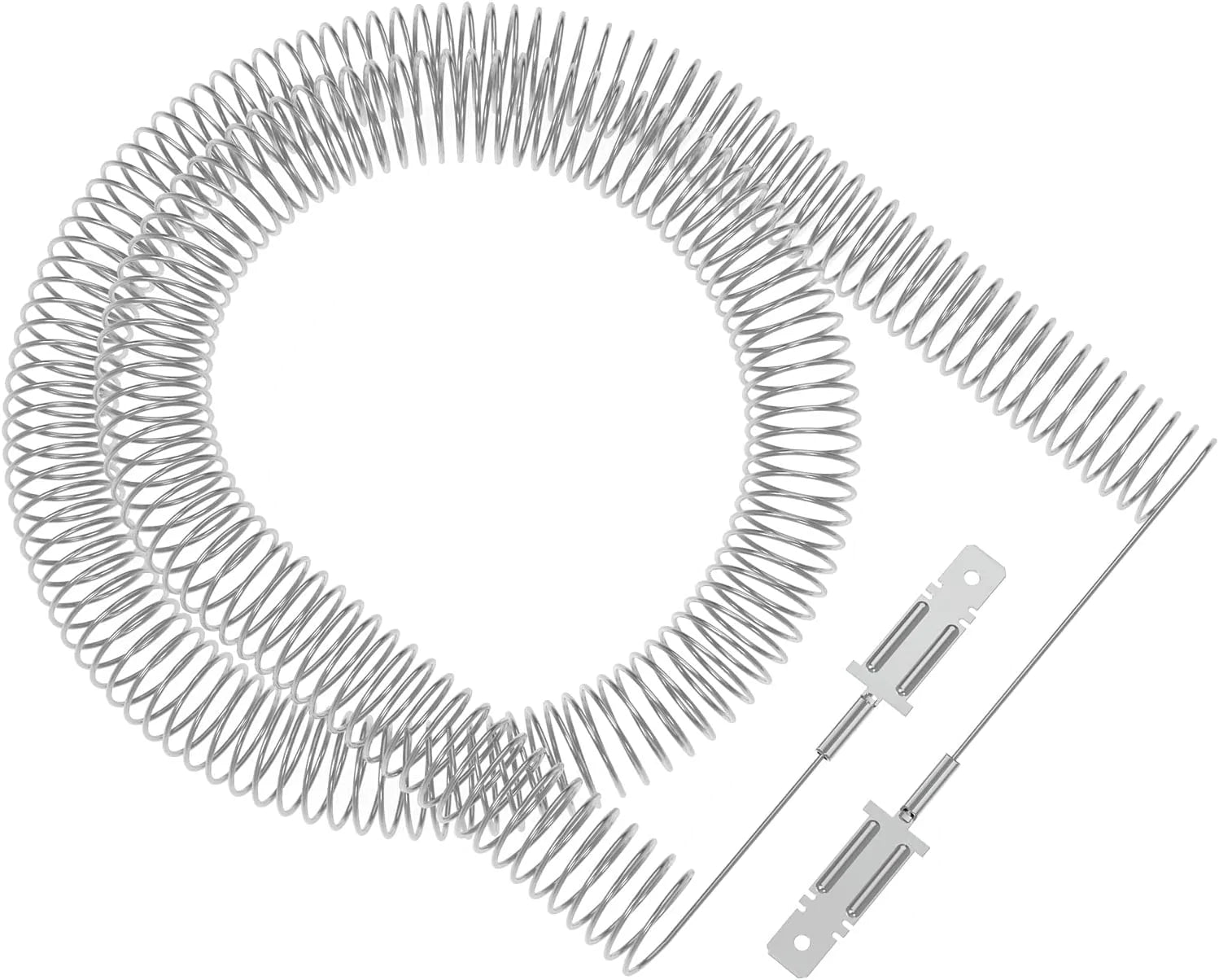

The XPARTCO 5300622034 is an aftermarket replacement heating coil, sold as a restring, for Frigidaire-built electric dryers. A restring replaces the burned-out coil inside your dryer's existing heater housing, so you do not need to replace the whole heater assembly. It is a cost-saving repair for a dryer that runs but no longer makes heat.

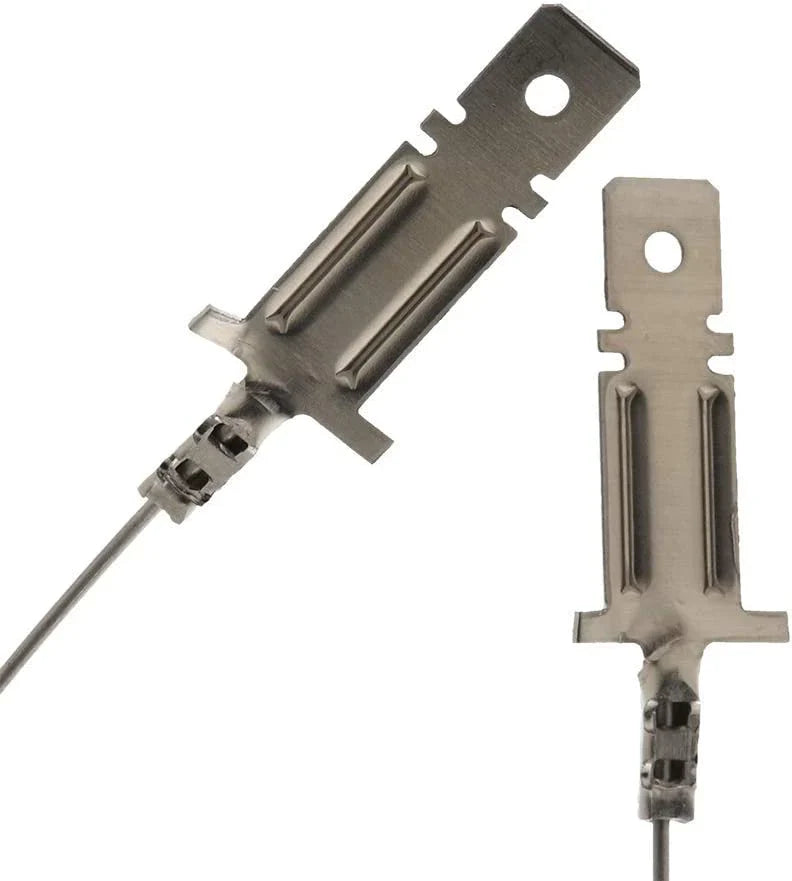

This is a direct-fit aftermarket replacement for the original Frigidaire coil. It has 5/16" terminals. A version with 1/4" terminals has a different part number, so check the terminals on your old coil before ordering.
Quick Answer
The XPARTCO 5300622034 Heating Element Coil fixes a Frigidaire, Tappan, White-Westinghouse, Gibson, or Kelvinator electric dryer that tumbles but doesn't heat, or heats weakly. It restrings the existing element housing with 5/16" terminals. Classic symptom: the drum spins and the timer runs, but clothes come out cold and damp.
Common Problems This Part Fixes
- Dryer runs but produces no heat
- Clothes come out damp after a full cycle
- Dryer heats weakly or takes very long to dry
- Visible break or burn in the heating coil
- Coil failure confirmed by a continuity test
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This heating element coil directly replaces the following part number:
5300622034, 137392700C, AFR16756, AH451032, AP2135128, EA451032, OEM6405393, EAP451032, PD00000199, PS451032
No other Frigidaire part numbers were confirmed for this coil. A similar restring with 1/4" terminals is sold under a different number and is not interchangeable. Confirm against your dryer's parts diagram, or contact our support team, if your model calls out a different number.
Compatibility
This coil is listed for Frigidaire, Tappan, White-Westinghouse, Gibson, Kelvinator, and GE electric dryers, including these examples:
- DE27A8WAFC, DE27S8WAGC, DE600ADD3, DE600ADW3
- F31C336CS0, F31C546CS0, F31C747CS0
- FDE116RBW0, FDE216RBS0, FDE336RBS0, FDE436RBS0, FDE546RBS0
Note: The models above are a sample of a much longer list, not a full list. This coil has 5/16" terminals. Dryers using a 1/4" terminal coil need a different part, so compare the terminals on your old element before ordering, or contact our support team to verify fit.
Key Features
- Direct-fit aftermarket heating coil for Frigidaire-built electric dryers
- Restring design reuses your existing heater housing
- 5/16" terminals
- Resolves no-heat and weak-heat problems caused by a failed coil
- Fits many Frigidaire, Tappan, White-Westinghouse, Gibson, and Kelvinator models
Product Specifications
| Part Number | XP5300622034 |
| OEM Part Number | 5300622034 |
| Part Type | Dryer Heating Element Coil (Restring) |
| Condition | Aftermarket Replacement |
| Terminal Size | 5/16" |
| Application | Frigidaire-Built Electric Dryers |
Installation Notes
Frequently Asked Questions
My dryer spins but won't heat. Is this the part I need?
A burned-out heating coil is a common cause. Unplug the dryer and test the element for continuity first. If there is no continuity, the coil has failed. A tripped thermal fuse or a failed thermostat can cause the same symptom, so check those too.
What is a restring?
A restring is a replacement coil that you install in your dryer's existing heater housing, instead of replacing the entire heater assembly. It is usually the lower-cost repair if the housing is in good condition.
What are the terminal sizes?
This coil has 5/16" terminals. A similar coil with 1/4" terminals has a different part number, so compare the terminals on your old element before ordering.
Will this fit my dryer?
It is listed for many Frigidaire-built electric dryers, but the model list above is only a sample. Check your model number against your parts diagram, or contact our support team and we'll verify it before you order.
