Whirlpool
WP3363394 Genuine OEM Washer Drain Pump 3363394, AP6008107, PS11741239
WP3363394 Genuine OEM Washer Drain Pump 3363394, AP6008107, PS11741239
Couldn't load pickup availability

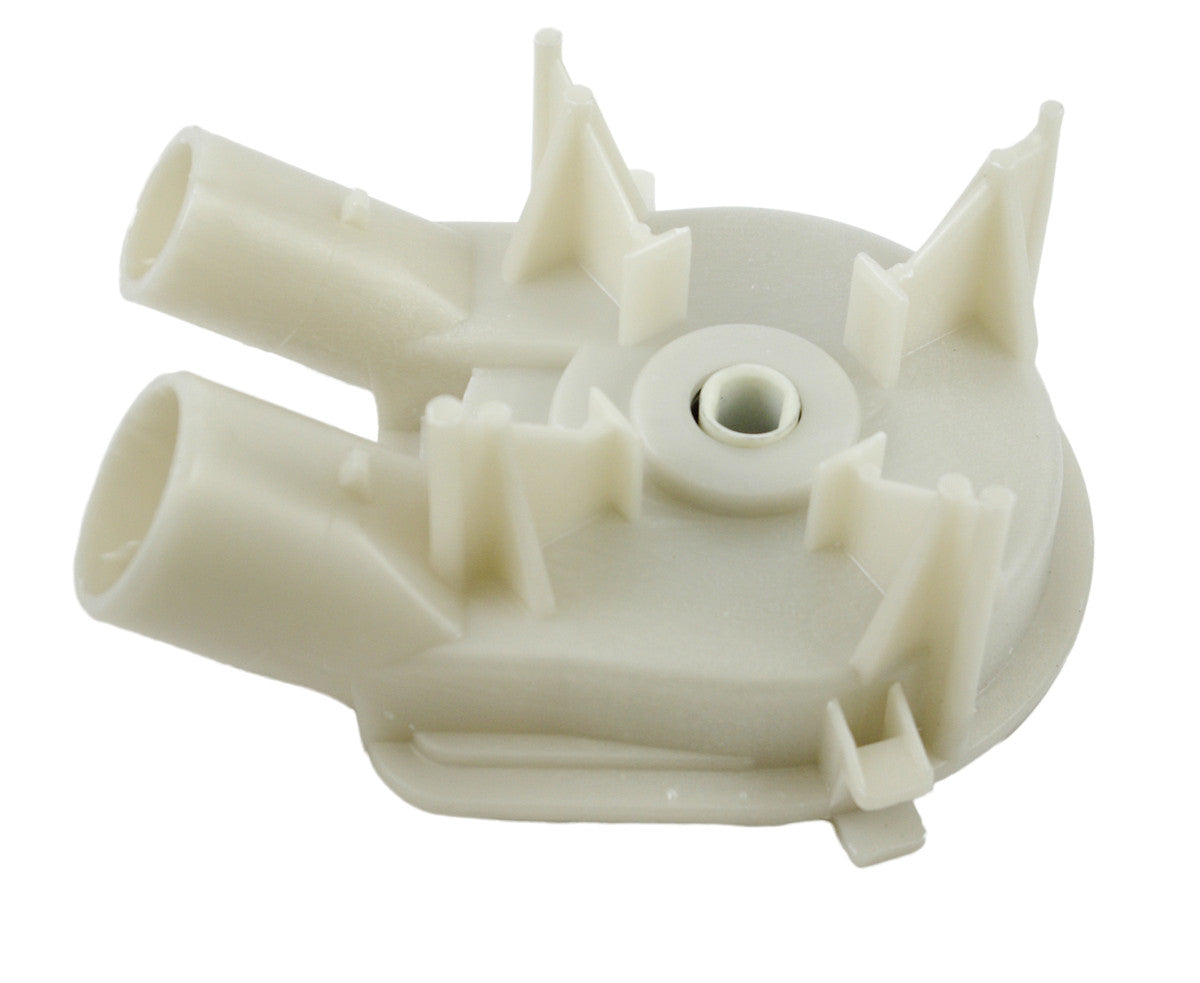

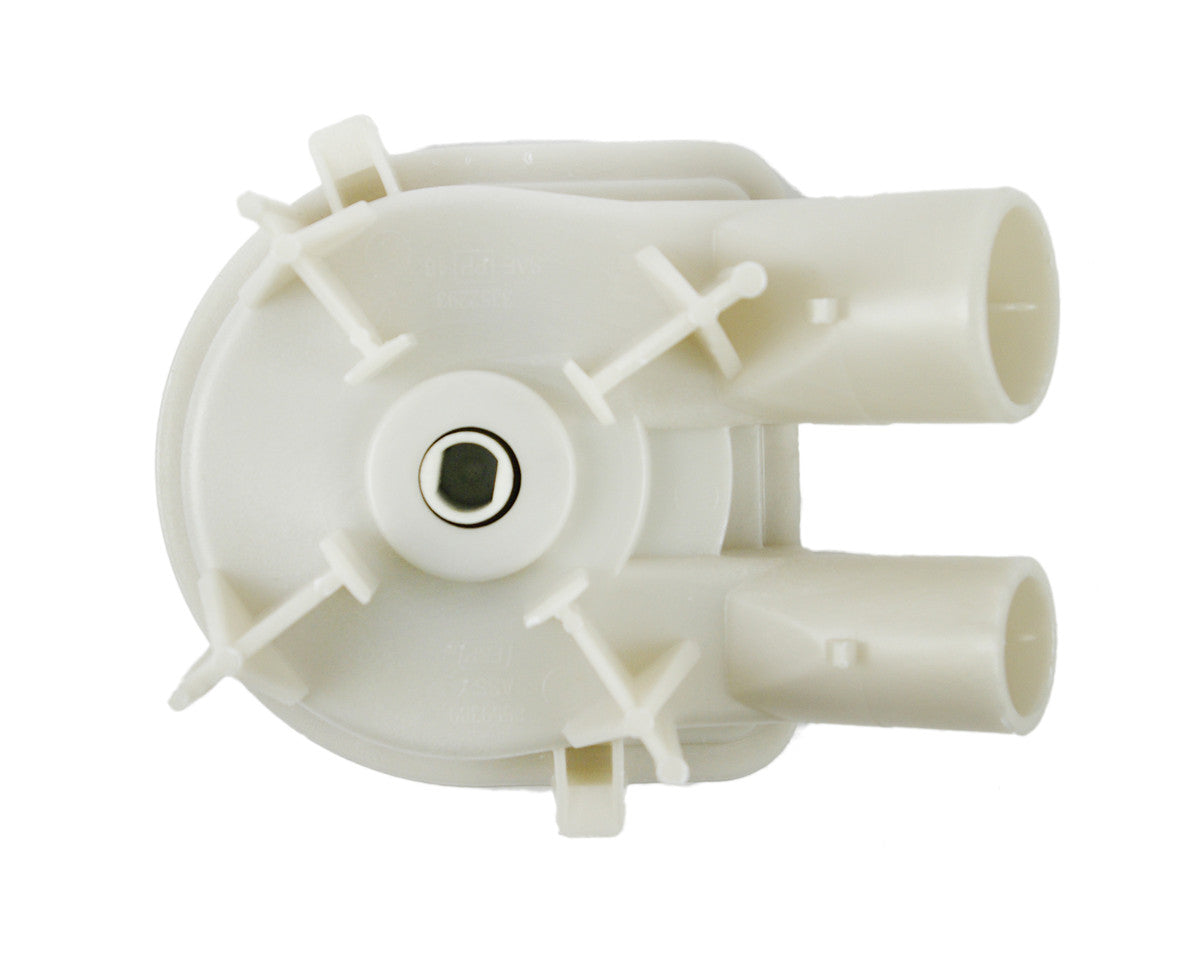

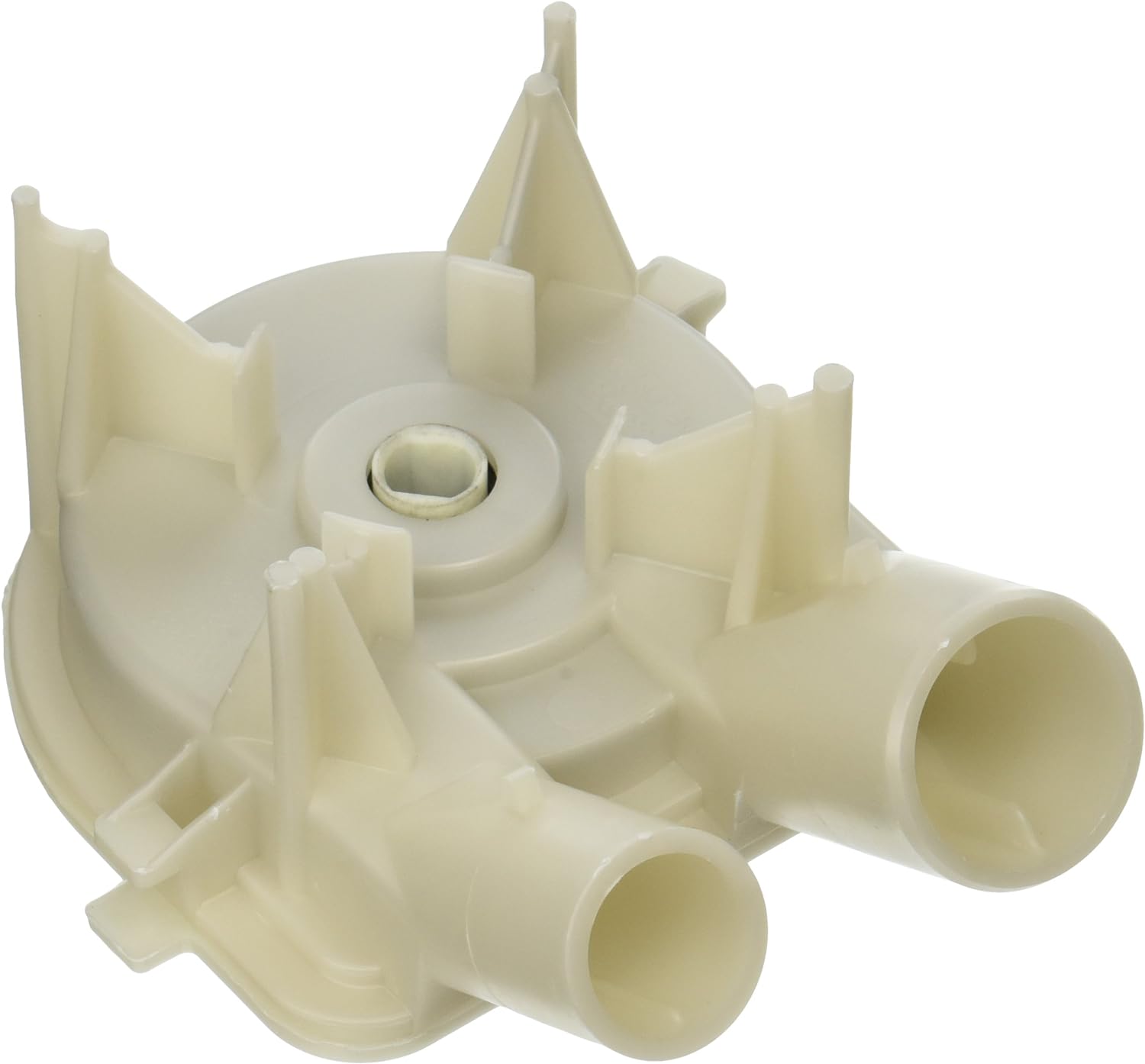

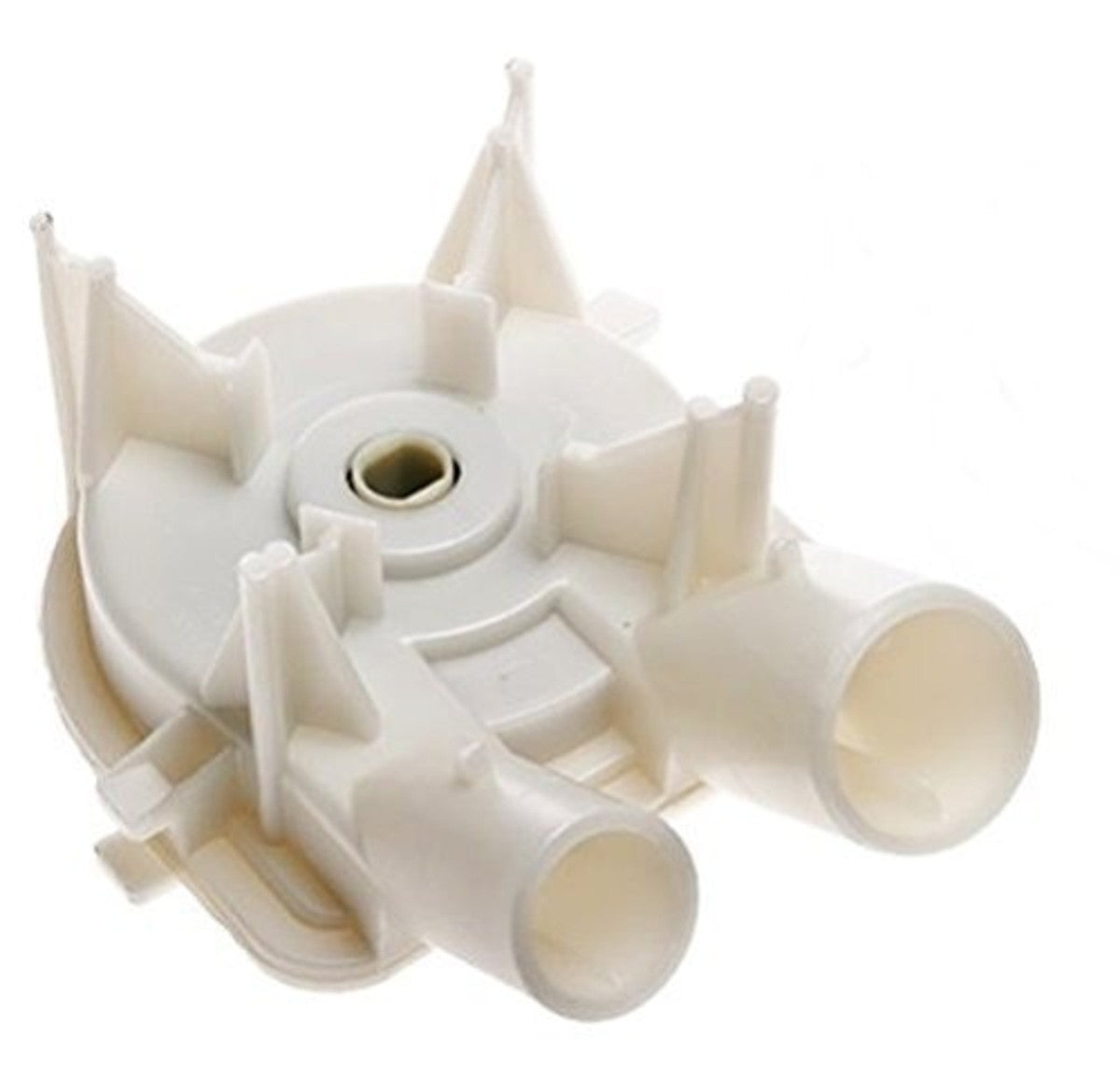

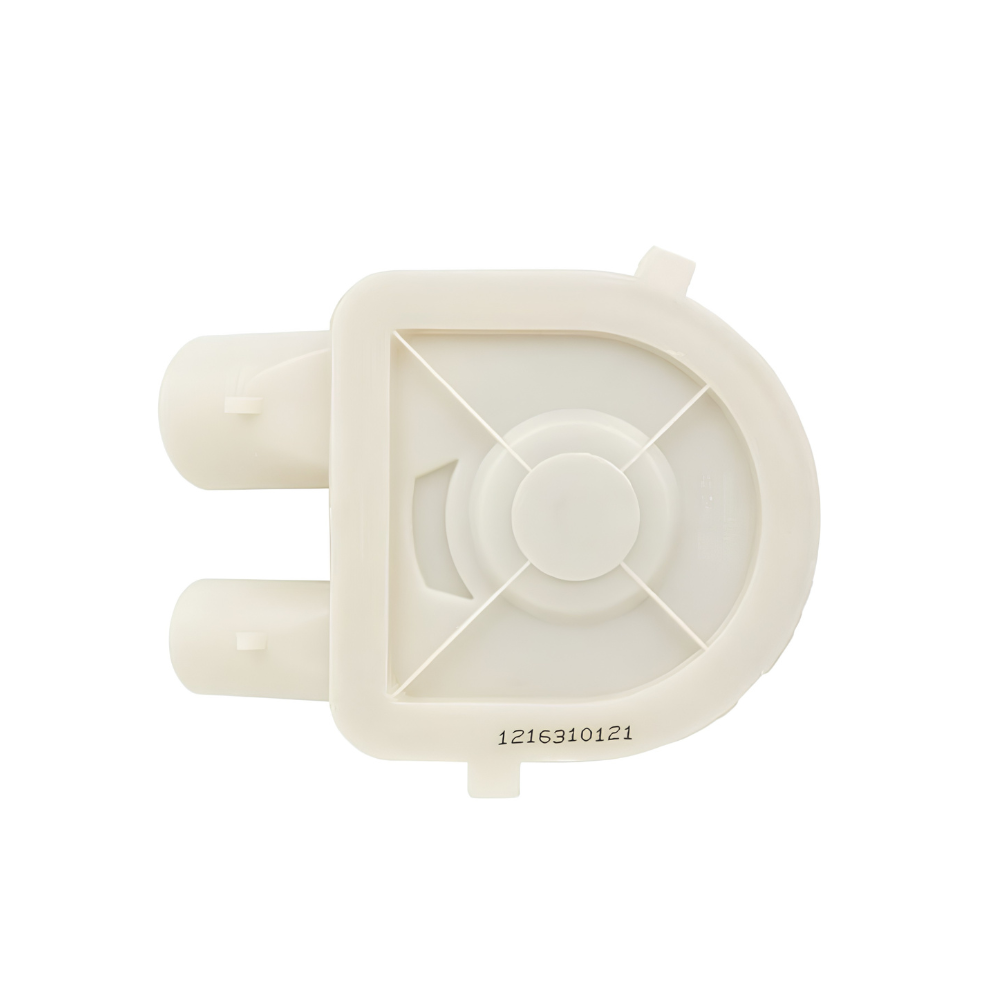

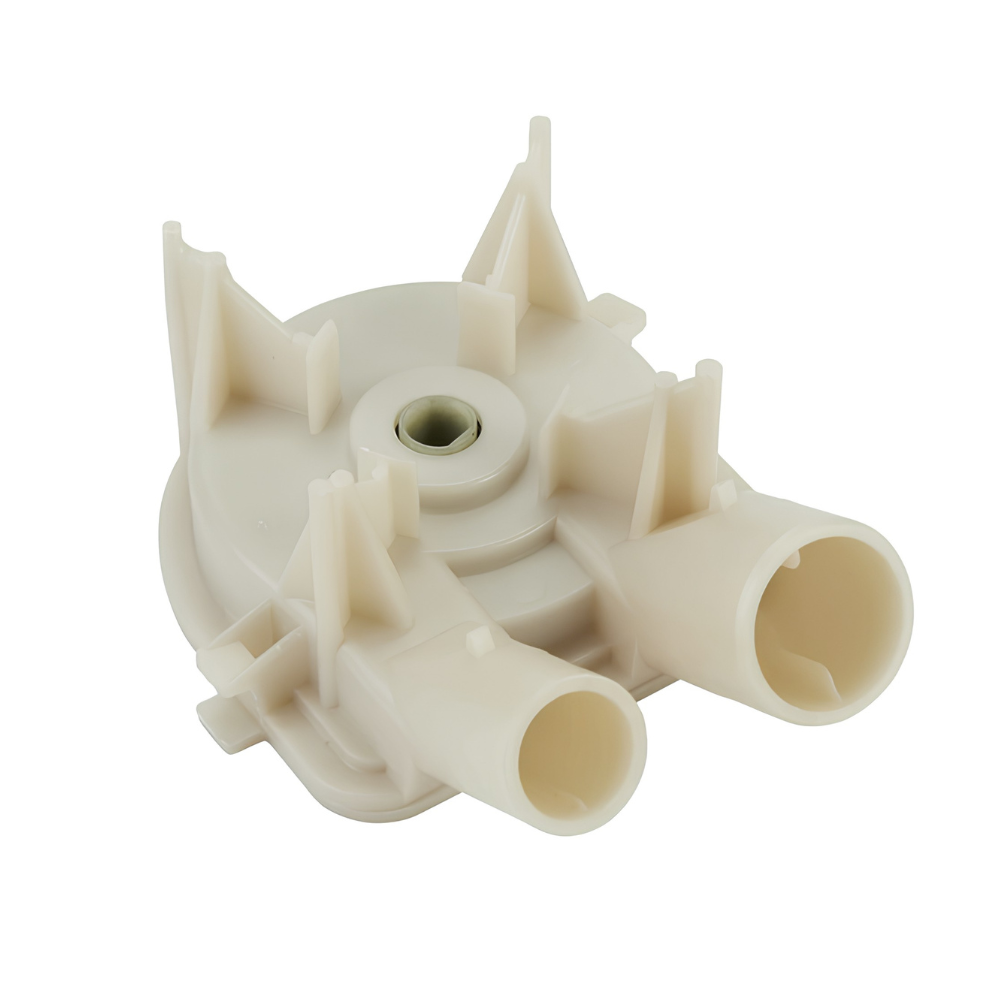

Whirlpool WP3363394 Washer Genuine OEM Drain Pump
Factory-original drain pump for select Whirlpool-built direct-drive washers.
Product Overview
The Whirlpool WP3363394 Washer Drain Pump is a Genuine Whirlpool OEM replacement part designed for select beltless direct-drive washing machines.
The pump mounts directly to the washer motor with two retaining clips and moves water from the tub into the drain system during the drain and spin portions of the cycle.
Quick Answer
WP3363394 is the Genuine Whirlpool OEM drain pump used on many classic Whirlpool-built direct-drive washers. It has one large hose port and one smaller hose port and mounts directly to the drive motor without a belt.
Common Problems This Part May Fix
- Washer will not drain
- Water remains in the tub after the cycle
- Drain pump is leaking
- Water leaking from the front or underneath the washer
- Pump is jammed or seized
- Grinding or unusual pump noise during draining
Replaces and Cross-References
Cross-reference numbers are provided for part identification. Always verify the complete washer model number before ordering.
Compatibility
Used on select Whirlpool-built direct-drive washers sold under Whirlpool, Kenmore, KitchenAid, Roper, Estate, Inglis, Crosley, Maytag, and related brands. Verified model examples include:
Important: This is only a partial compatibility list. Some direct-drive washers use a different pump with different hose-port sizes or an internal backflow flapper. Match the complete appliance model and original part number before purchase.
Key Features
- Genuine Whirlpool OEM replacement part
- Direct-drive washer drain pump
- Mounts directly to the drive motor
- Secured by two retaining clips

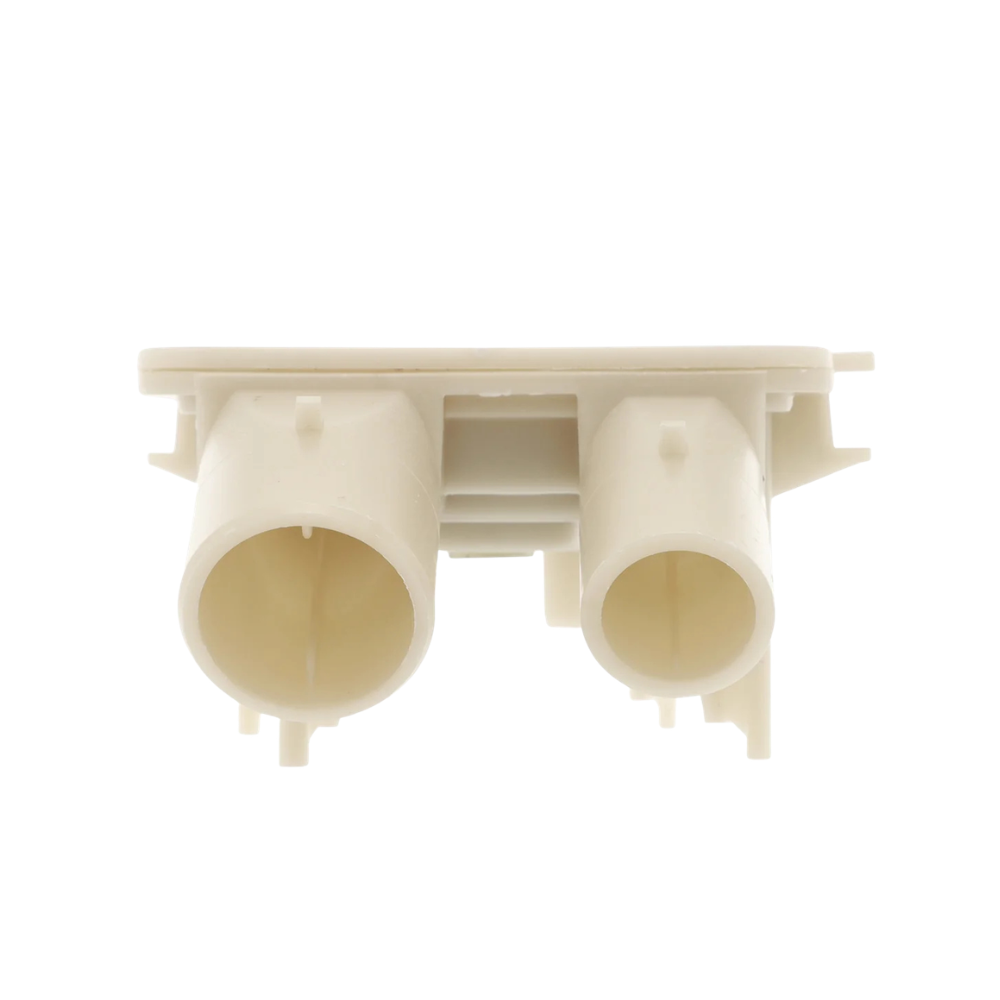

- One large and one small hose port
- Factory replacement for numerous earlier Whirlpool pump numbers
Product Specifications
| Manufacturer | Whirlpool |
| Part Number | WP3363394 |
| Part Type | Washer Drain Pump |
| Part Quality | Genuine OEM |
| Drive Type | Direct Drive / Beltless Washer Application |
| Mounting | Directly to Motor with Two Retaining Clips |
| Hose Ports | 1 Large Port + 1 Small Port |
| Condition | New |
| Application | Washer Drain System |
Installation Notes
- Unplug the washer and shut off both water-supply valves before service.
- Drain as much standing water as possible before disconnecting the pump hoses.
- Keep towels or a shallow pan nearby because residual water will remain in the hoses and pump.
- Release the two retaining clips that secure the pump to the drive motor.
- Remove the hose clamps and hoses, then transfer them to the replacement pump.
- Seat the new pump fully on the motor shaft and reinstall both retaining clips.
- Run a short fill/drain test and inspect all hose connections and the pump shaft area for leaks.
Diagnostic tip: Before replacing the pump for a no-drain condition, check the drain hose and pump inlet for socks, lint, coins, or other obstructions. A blocked hose can mimic a failed pump.
Frequently Asked Questions
Is WP3363394 a Genuine Whirlpool OEM part?
Yes. WP3363394 is a Genuine Whirlpool OEM washer drain pump.
Does WP3363394 replace 3363394?
Yes. WP3363394 is the current Whirlpool replacement for original part number 3363394 and several earlier pump numbers.
Does this pump use a belt?
No. It is designed for compatible direct-drive washers and mounts directly to the drive motor.
How many hose ports does this pump have?
It has one large hose port and one smaller hose port. Compare the original pump and complete model number before ordering.
Shop With Confidence
Use your washer's complete model number to confirm fitment before ordering. This listing is for a new Genuine Whirlpool OEM WP3363394 drain pump.
