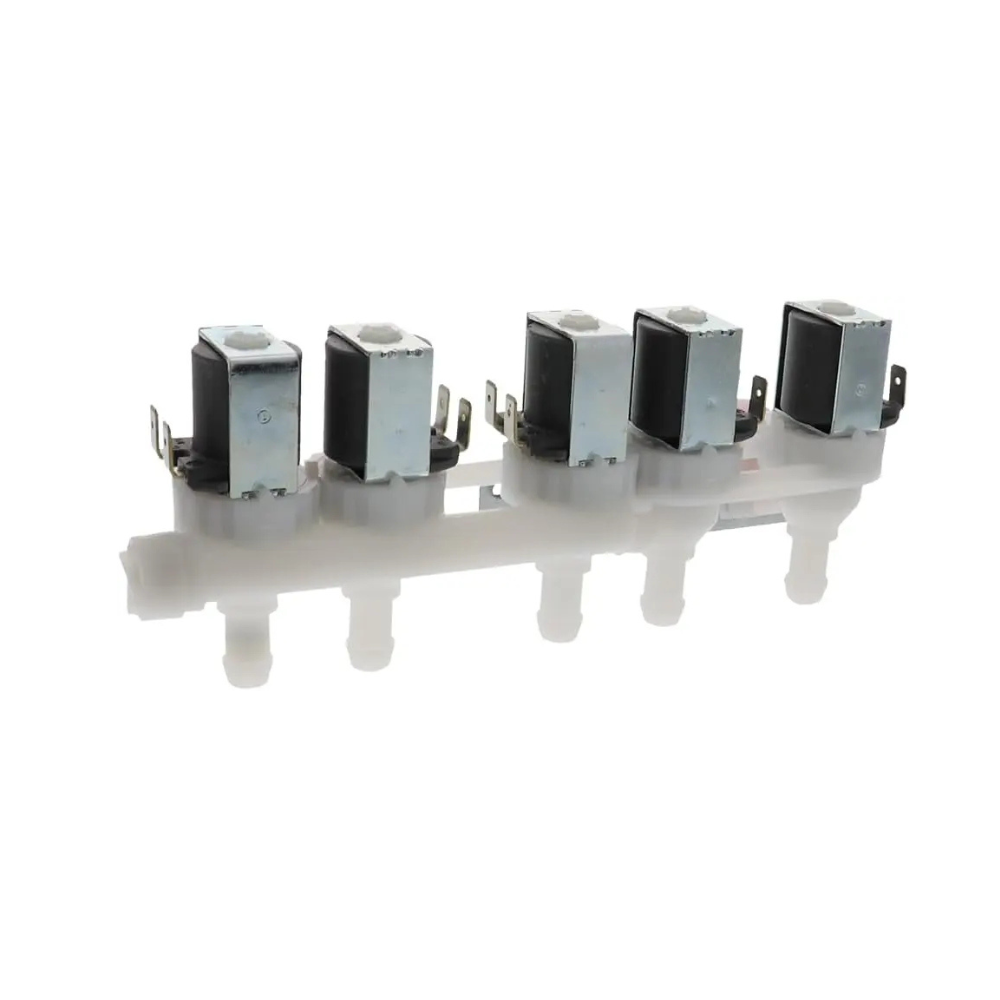

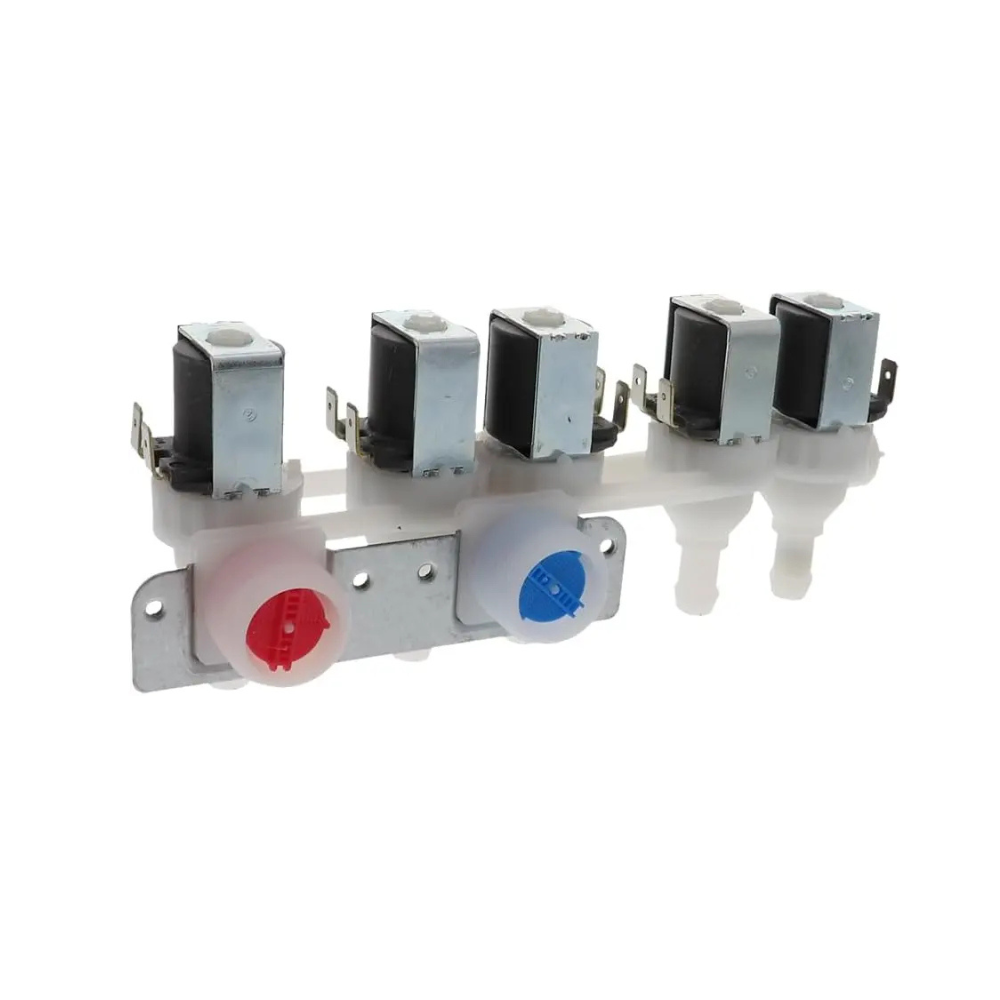

XPARTCO WH23X29553 Washer Water Inlet Valve
Aftermarket water inlet valve assembly for select GE front-load washers.
Product Overview
The XPARTCO WH23X29553 Washer Water Inlet Valve controls the flow of hot and cold water into compatible GE front-load washing machines. It opens and closes electrically during the wash cycle so the washer can fill with the correct amount of water.
This is a quality XPARTCO aftermarket replacement part, not a Genuine GE OEM part.
Quick Answer
Use WH23X29553 when a compatible GE front-load washer will not fill, fills slowly, displays an H2O/water-supply error, or has a damaged inlet connection. Verify the complete washer model number before ordering.
Common Problems This Part May Fix
- Washer will not fill with water
- Slow or insufficient water fill
- H2O / water-supply error
- Water inlet connection is cracked or broken
- Abnormal whining or squealing during fill
- Hot or cold water does not enter correctly
Replaces and Cross-References
Cross-reference numbers are provided for identification. Always verify fit by the complete appliance model number.
Compatibility
Fits select GE front-load washers, including models in the GFW650, GFW655, GFW850, PFW870, PFW950 and PFW955 families. Confirmed examples include:
Important: This is only a partial compatibility list. Do not rely on appearance alone; verify the complete model number from the washer identification label.
Key Features
- Quality XPARTCO aftermarket replacement
- Controls washer water intake during cycles
- Hot/cold water inlet valve assembly
- For select GE front-load washers
- Helps correct no-fill and slow-fill conditions
- Direct replacement for WH23X29553 applications
Product Specifications
| Part Number | WH23X29553 |
| Brand | XPARTCO |
| Part Type | Washer Water Inlet Valve Assembly |
| Condition | New |
| Quality | Aftermarket Replacement |
| Application | Front-Load Washing Machine |
| Primary Function | Controls water flow into washer |
| Package Quantity | 1 Valve Assembly |
Installation Notes
- Unplug the washer before service.
- Turn off both hot and cold water supply valves.
- Relieve hose pressure and keep a towel or shallow pan ready for residual water.
- Photograph electrical connectors and internal hose routing before disassembly.
- Disconnect inlet hoses, wiring, and internal hoses without pulling directly on the wires.
- Install the replacement valve and reconnect hoses and wiring in the original positions.
- Restore the water supply and inspect carefully for leaks before restoring normal operation.
Diagnostic tip: Before replacing the valve, also check household water pressure, wall shutoff valves, inlet hoses, and inlet screens for restrictions or debris.
Frequently Asked Questions
Is this a Genuine GE OEM valve?
No. This is a quality XPARTCO aftermarket replacement designed for compatible GE washers.
Does WH23X29553 fit top-load washers?
The verified fitment for WH23X29553 is primarily select GE front-load washer families. Always verify the complete model number before ordering.
Can this fix an H2O supply error?
A failed or restricted inlet valve can cause an H2O/water-supply error, but supply hoses, household water pressure, shutoff valves, screens, wiring, and controls should also be checked.
Is the valve sold as an assembly?
Yes. WH23X29553 is supplied as a water inlet valve assembly.
Shop With Confidence
Verify the complete washer model number before ordering. Our compatibility team can help confirm whether XPARTCO WH23X29553 is correct for your appliance.
