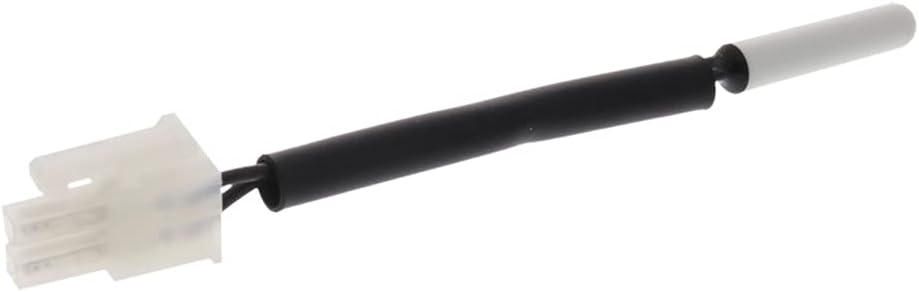

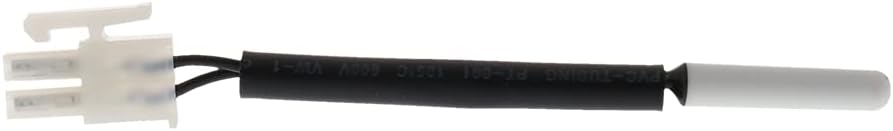

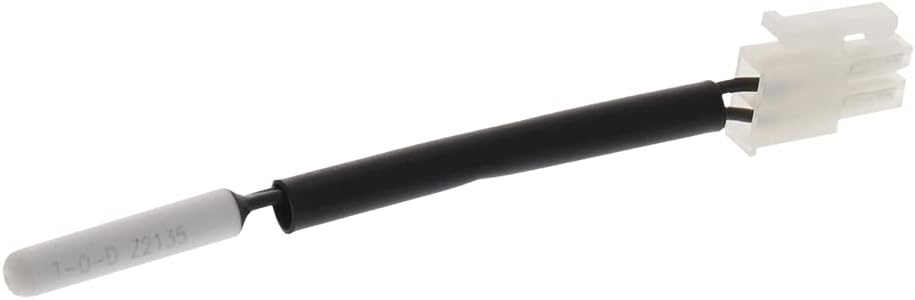

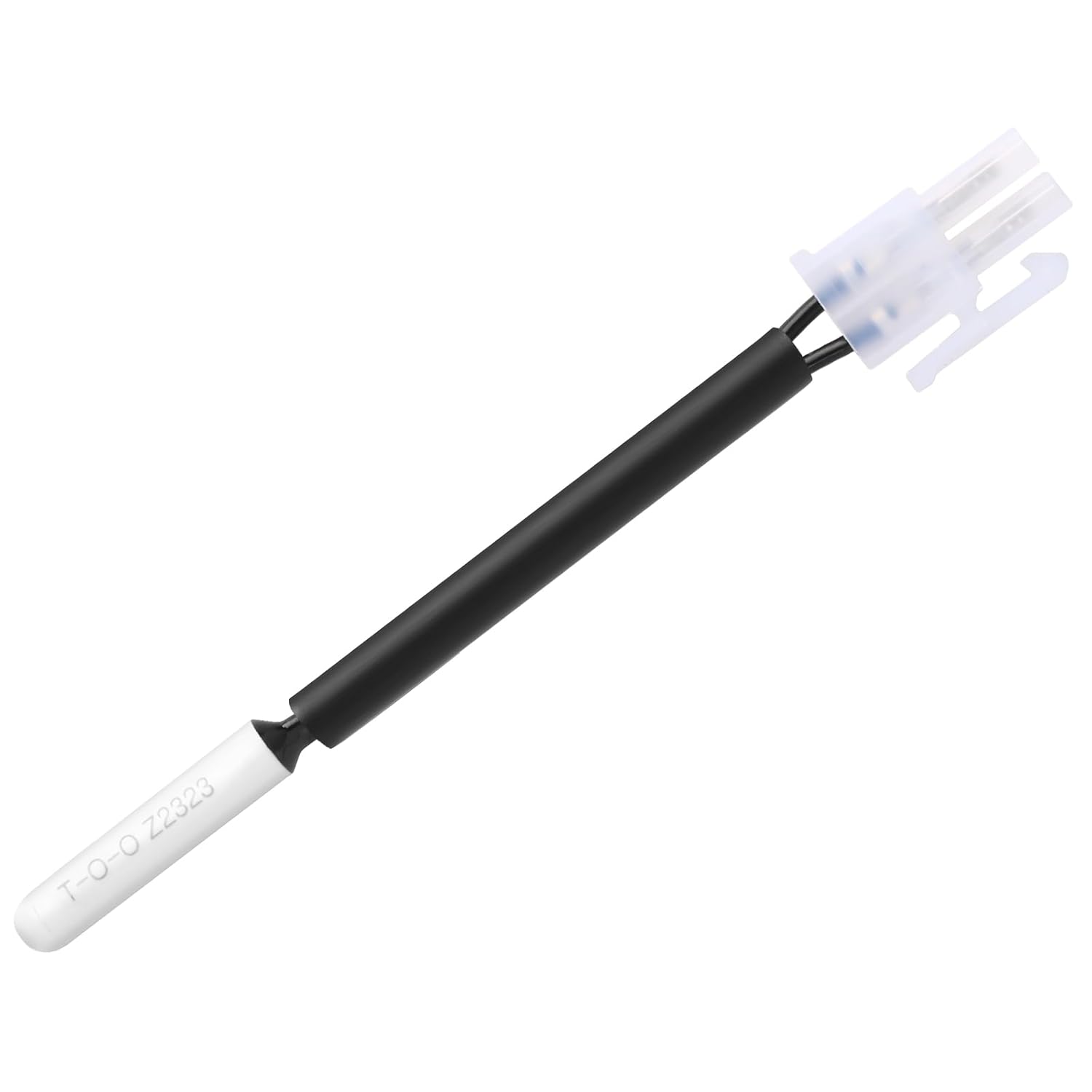

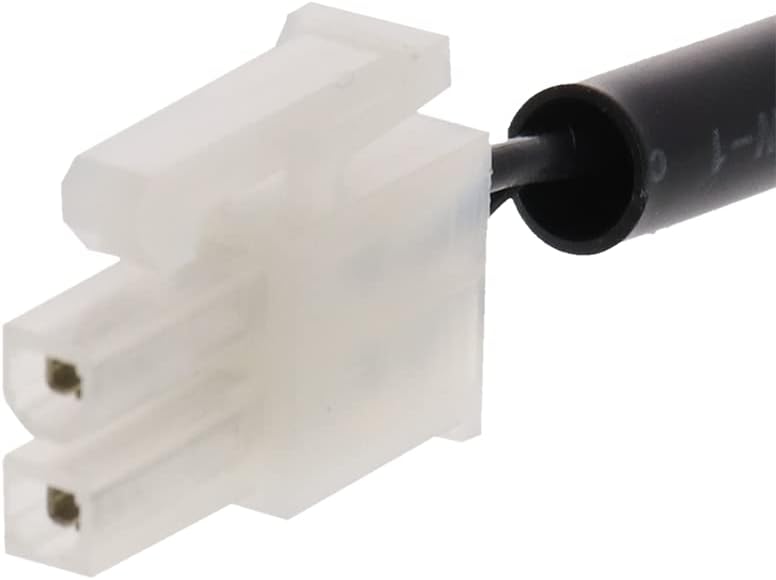

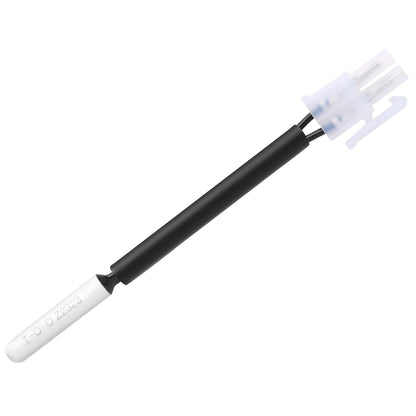

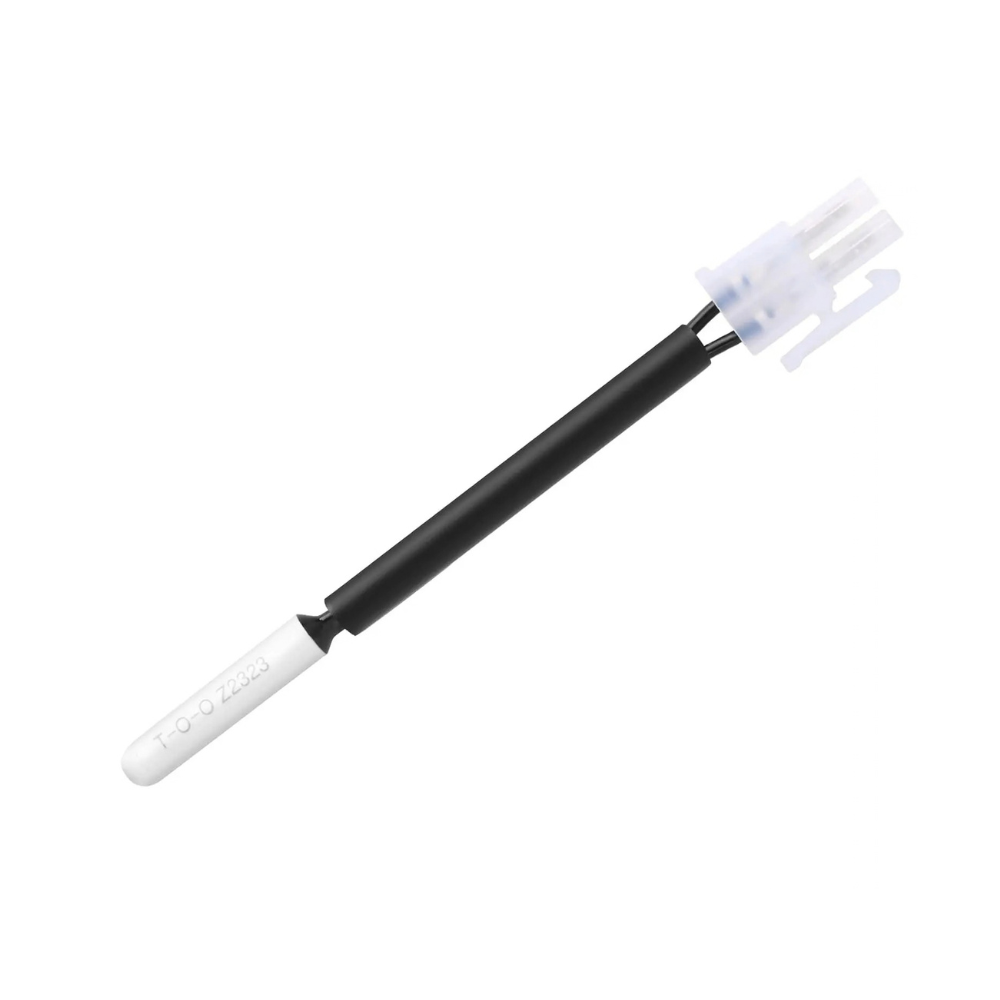

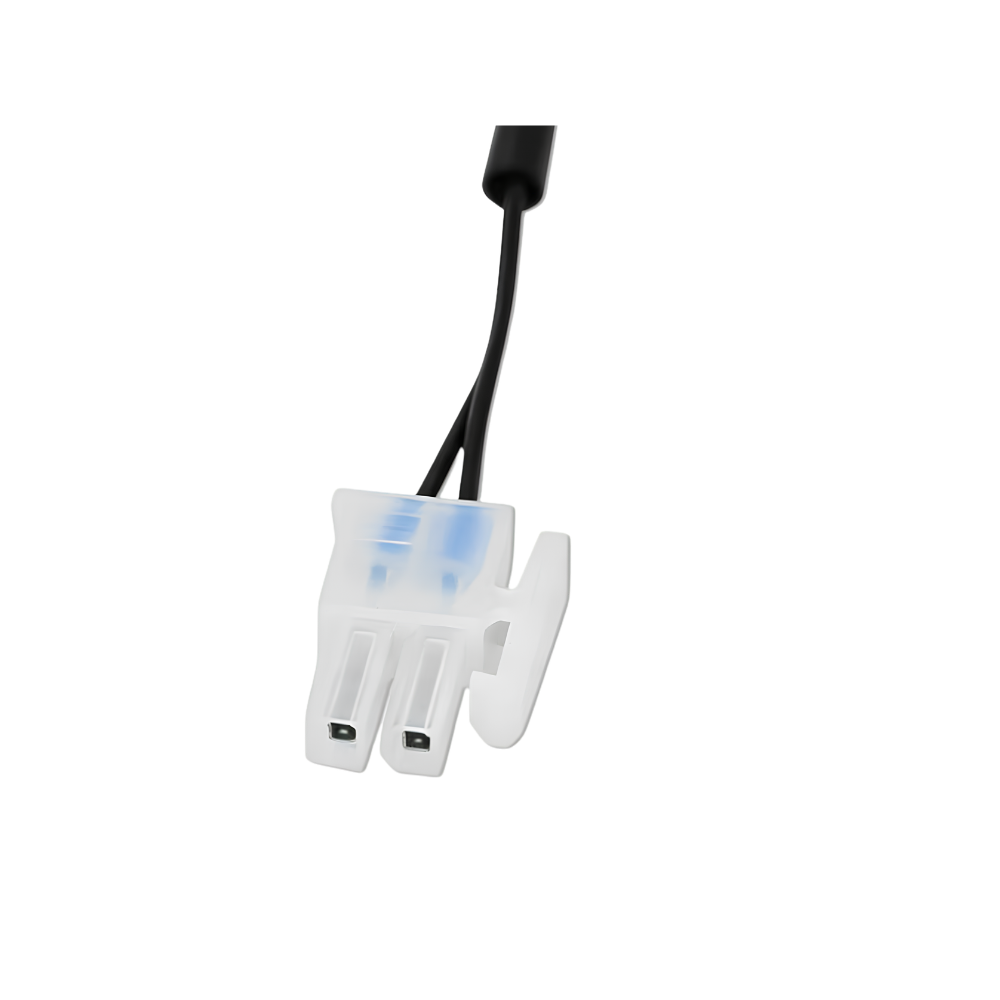

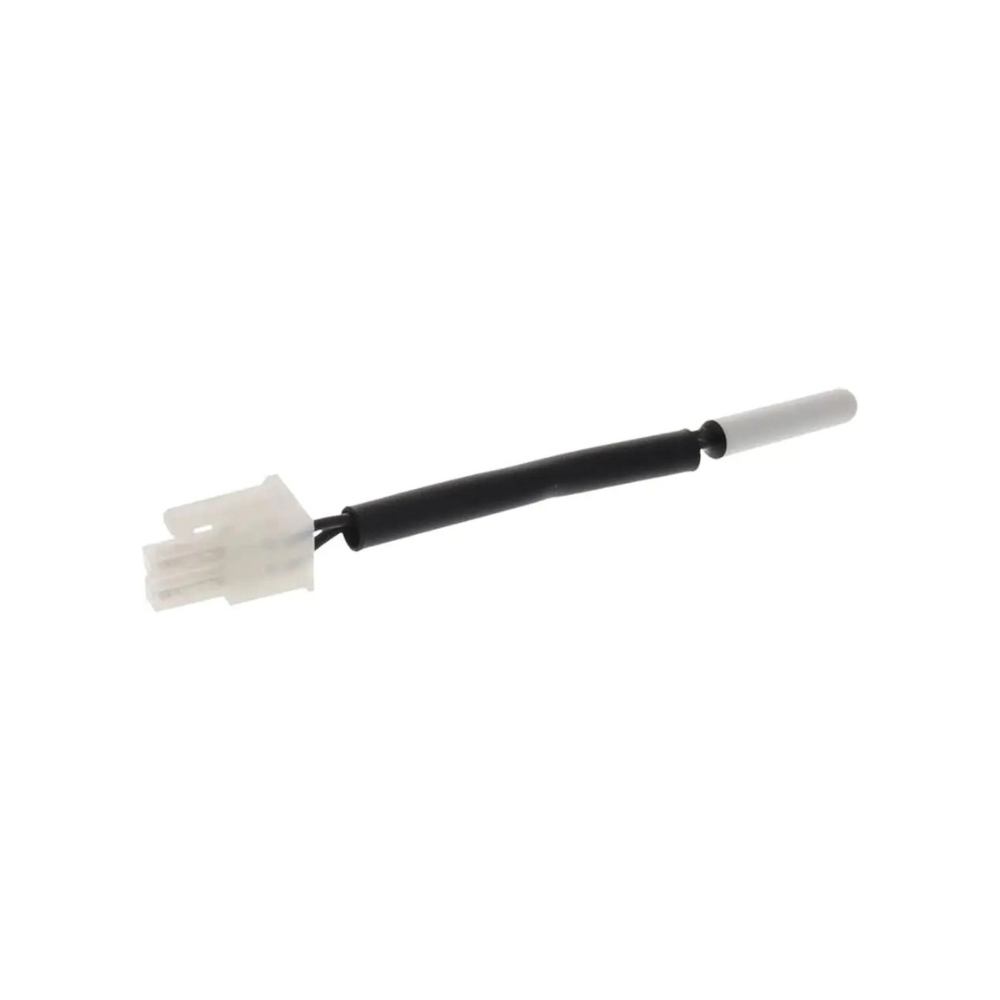

XPARTCO W10384183 Refrigerator Thermistor Replaces WPW10384183
Temperature-sensing thermistor for select Whirlpool-built refrigerators and freezers.
Product Overview
The XPARTCO W10384183 Refrigerator Thermistor is an aftermarket replacement for WPW10384183. It senses compartment temperature and sends resistance-based temperature information to the appliance control so cooling operation can be regulated accurately.
This sensor is used across select Whirlpool, Maytag, KitchenAid, Amana, and Whirlpool-built Kenmore refrigerator/freezer platforms.
Quick Answer
W10384183 / WPW10384183 is a refrigerator/freezer temperature thermistor. Replace it when the original sensor is open, shorted, out of specification, physically damaged, or confirmed faulty during temperature-control diagnostics.
Common Problems This Part May Fix
- Refrigerator or freezer too warm
- Compartment running too cold
- Erratic temperature regulation
- Cooling system running longer than expected
- Frost buildup associated with incorrect temperature sensing
- Thermistor resistance outside service-manual specifications
Replaces and Cross-References
Cross-reference numbers are provided for identification. XPARTCO is a quality aftermarket replacement brand and is not manufactured by Whirlpool Corporation.
Compatibility
Fits select Whirlpool-built refrigerators and freezers. Verified model examples include:
Important: This is only a partial compatibility list. Verify the complete appliance model number and the original thermistor part number before ordering. Some refrigerators use more than one thermistor with different functions and locations.
Key Features
- Quality XPARTCO aftermarket replacement
- Replaces WPW10384183 / W10384183
- Temperature-sensing NTC thermistor design
- Helps the electronic control regulate cooling operation
- Direct plug-in replacement on compatible applications
- For select refrigerators and upright freezers

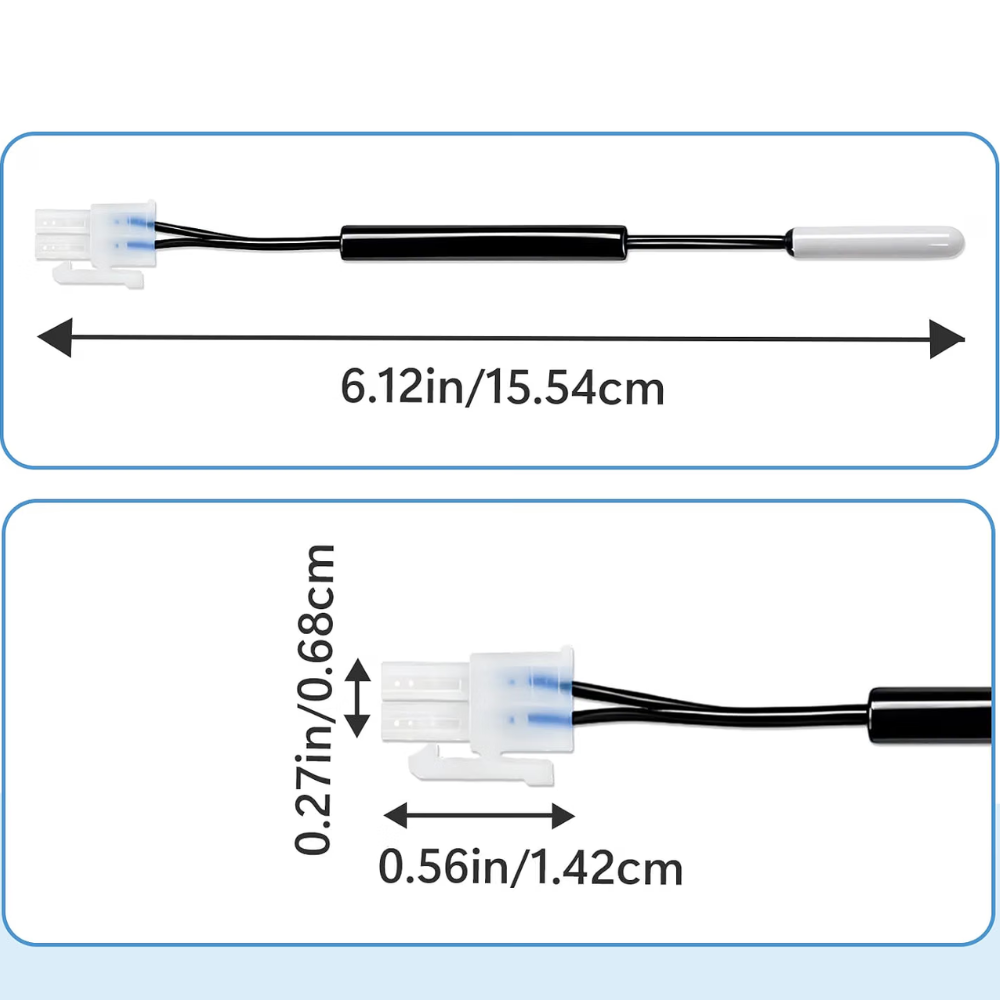

Product Specifications
| XPARTCO Part Number | W10384183 |
| Replaces | WPW10384183 |
| Part Type | Refrigerator / Freezer Thermistor |
| Function | Temperature sensing for electronic control |
| Sensor Type | NTC Thermistor |
| Probe Length | Approx. 1 in. |
| Lead Length | Approx. 3.5 in. |
| Condition | New |
| Part Quality | Aftermarket Replacement |
Installation & Troubleshooting Notes
- Disconnect refrigerator power before service.
- Locate the thermistor using the appliance service diagram or model-specific parts breakdown.
- Disconnect the old thermistor harness carefully without pulling on the wires.
- Install the replacement sensor in the same location and orientation.
- Secure any clips, covers, or air-duct components removed during service.
- Restore power and allow the appliance time to stabilize before evaluating temperature.
Diagnostic tip: A thermistor is a variable-resistance sensor. Resistance should be checked against the temperature/resistance chart specified for the exact appliance model. Do not condemn the sensor from a single resistance reading without knowing the sensor temperature and the model-specific specification.
Frequently Asked Questions
What does W10384183 do?
It senses compartment temperature and provides that temperature information to the refrigerator or freezer electronic control.
Does W10384183 replace WPW10384183?
Yes. WPW10384183 is the current Whirlpool OEM number associated with original part W10384183.
Is this a Genuine Whirlpool OEM part?
No. This listing is for a quality XPARTCO aftermarket replacement designed to replace WPW10384183.
Can this thermistor be used in every location inside a compatible refrigerator?
Not necessarily. Some models use multiple thermistors with different part numbers and mounting locations. Match the appliance model and original part number before installation.
Shop With Confidence
Verify your complete refrigerator or freezer model number before purchasing. Our compatibility team can help confirm whether XPARTCO W10384183 is correct for your appliance.
