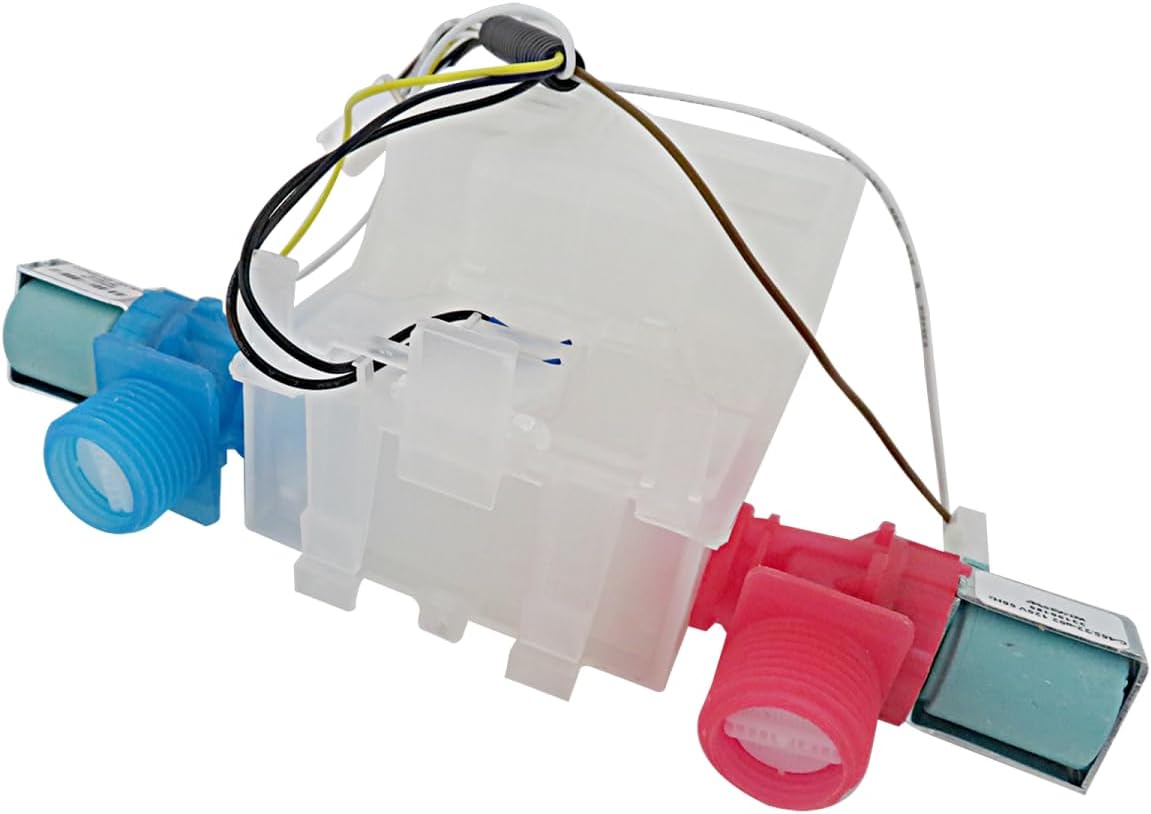

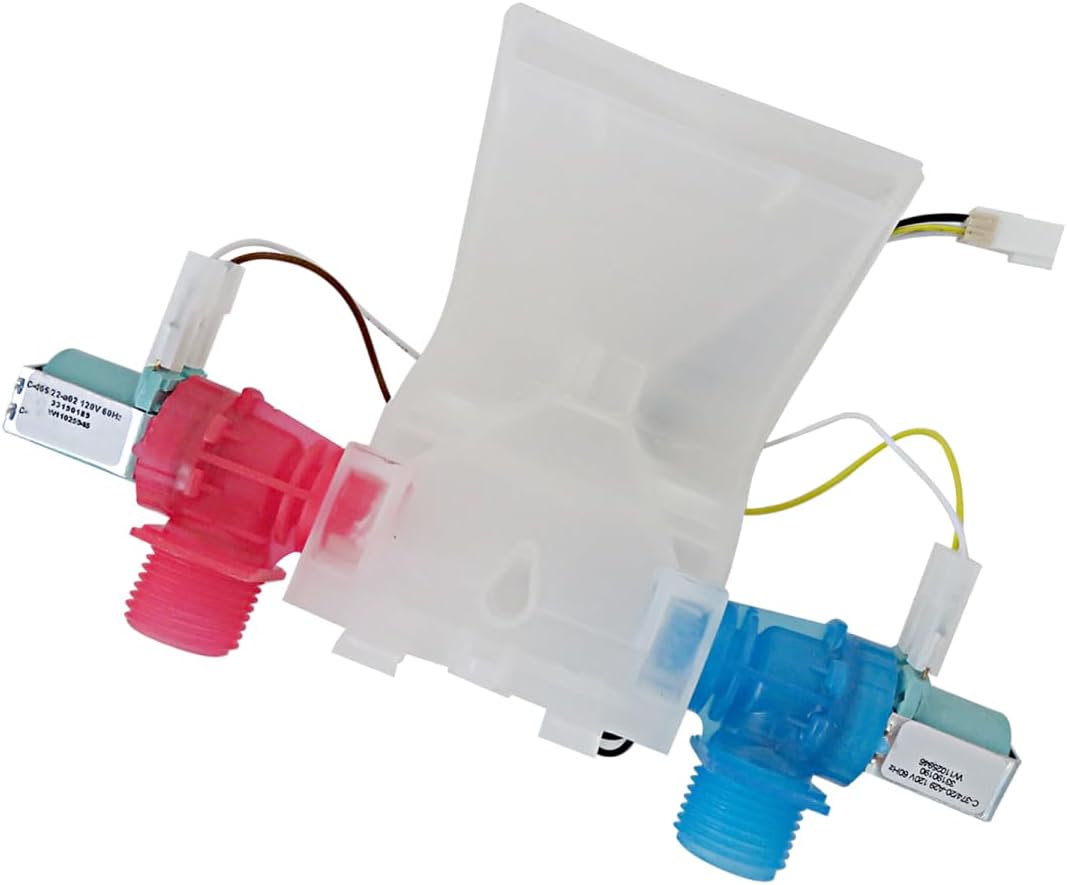

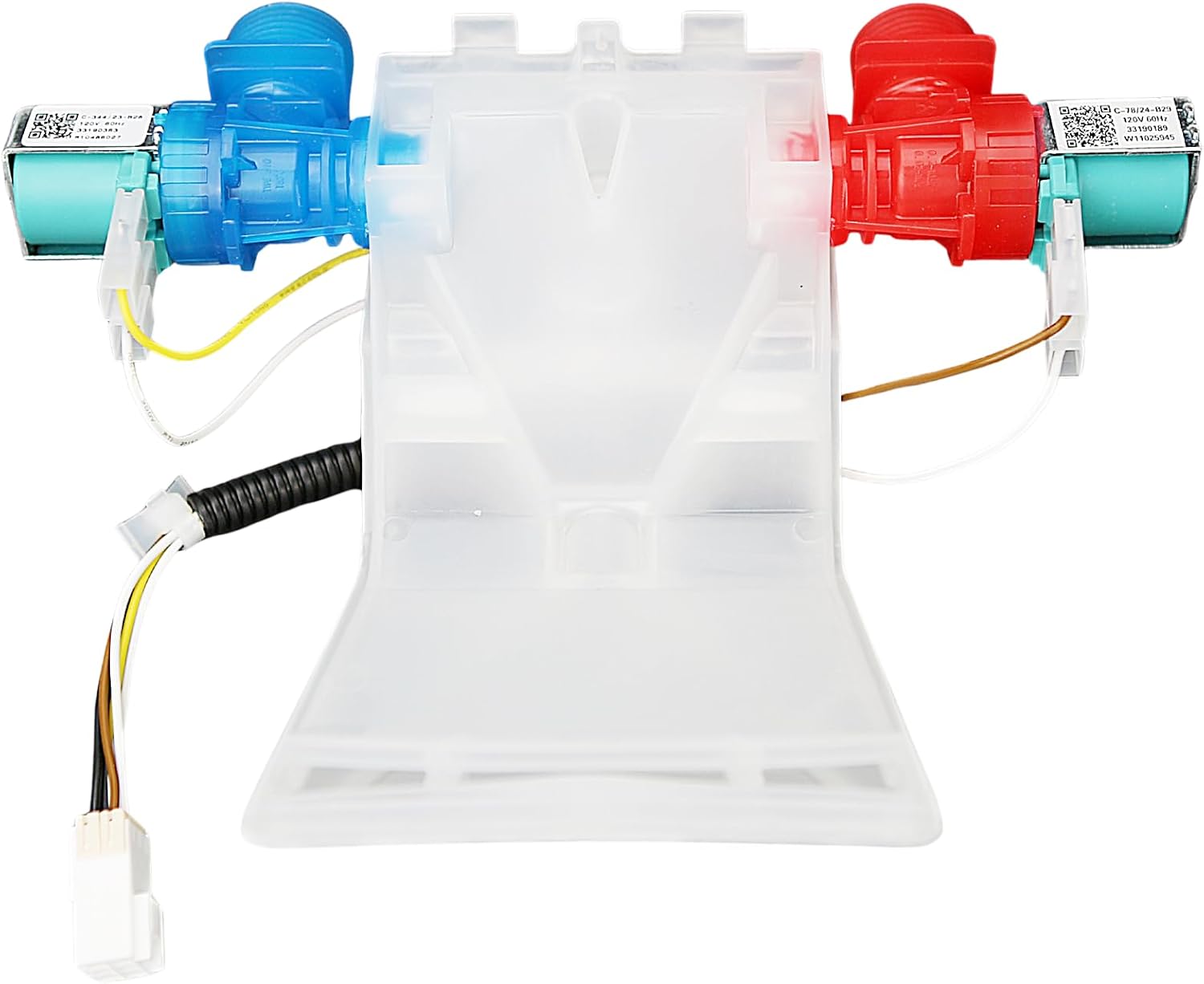

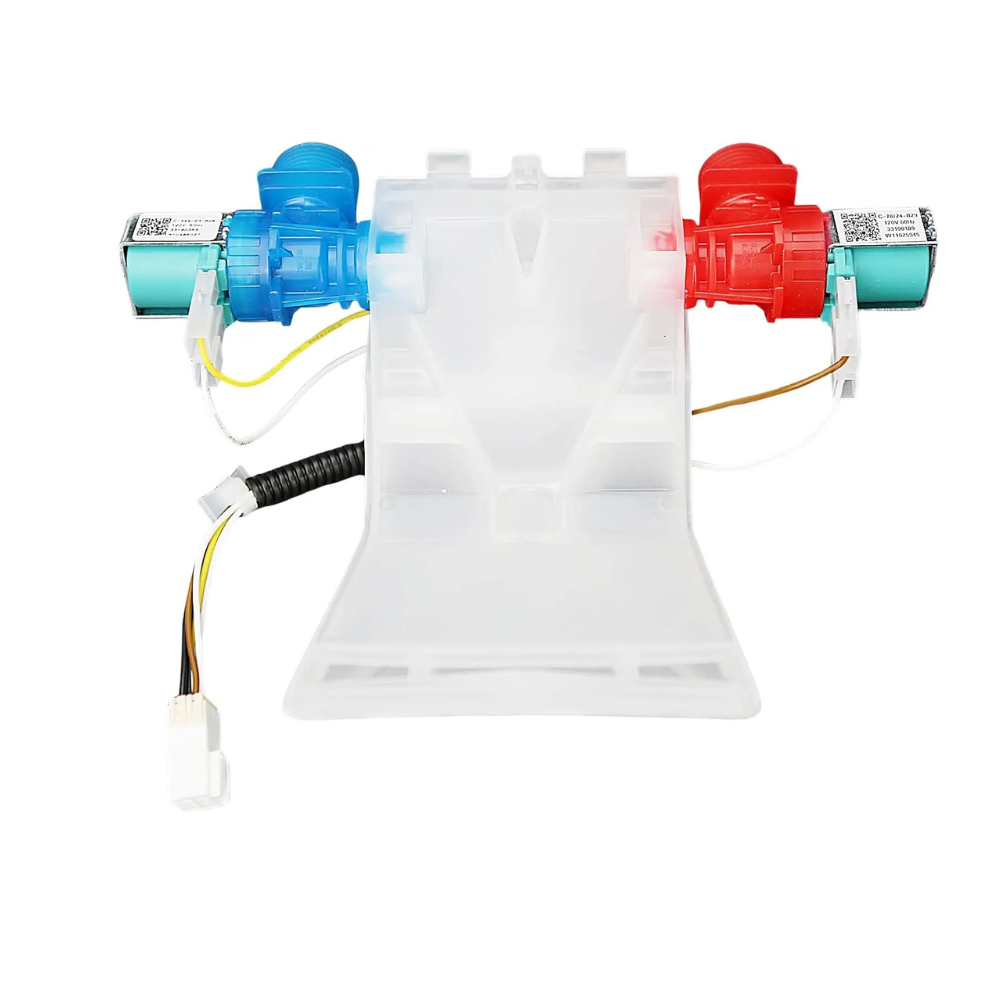

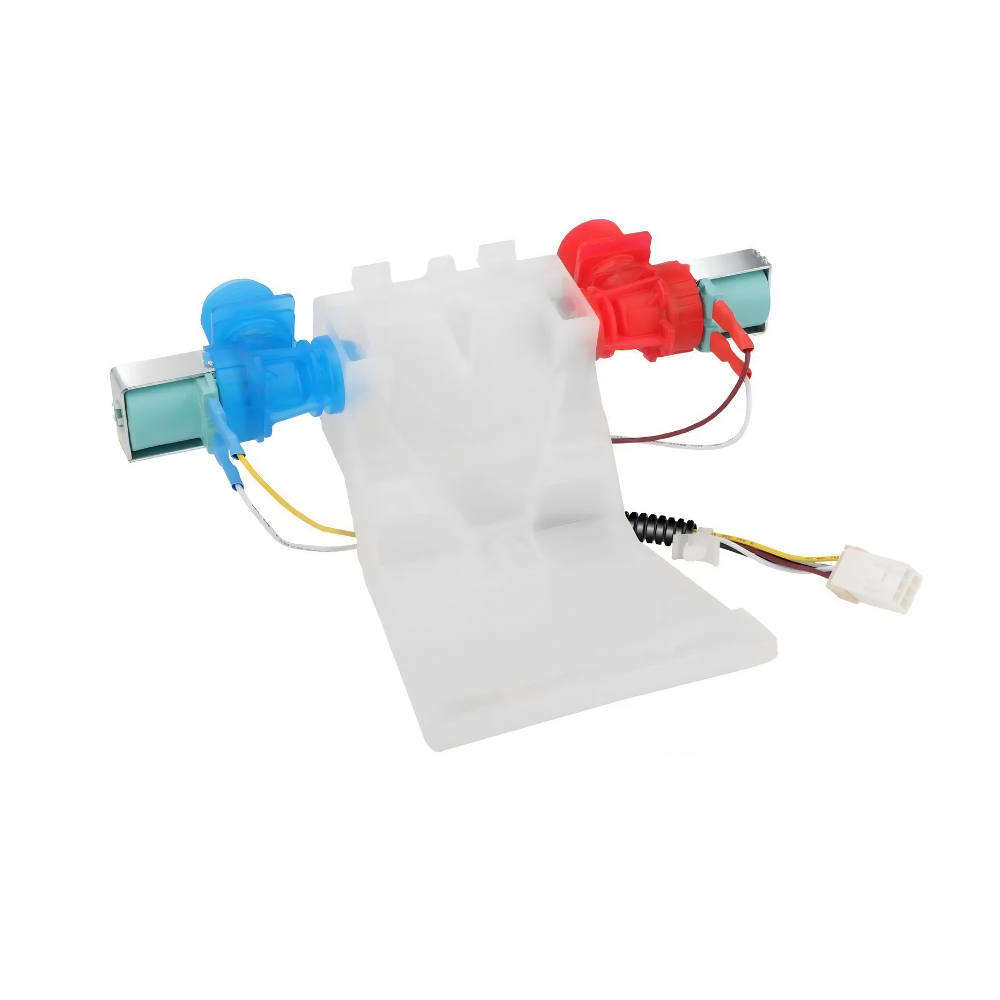

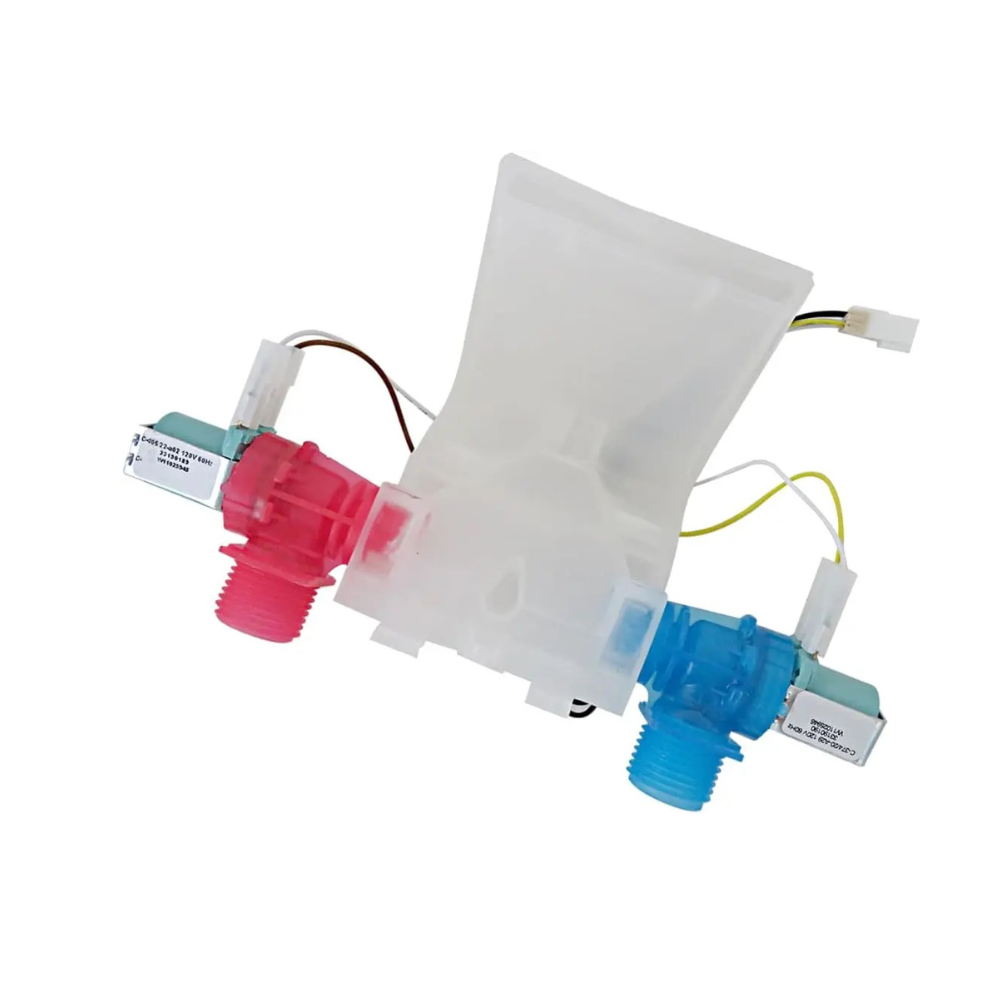

XPARTCO W10144820 Water Inlet Valve Assembly Replaces WPW10144820
Complete hot/cold washer inlet valve assembly with vacuum break and built-in thermistor for water-temperature sensing.
Product Overview
The XPARTCO W10144820 Washer Water Inlet Valve Assembly controls hot and cold water flow into compatible Whirlpool-built top-load washers. The complete assembly includes the hot-water valve, cold-water valve, vacuum-break section, and thermistor used by the washer to sense incoming water temperature.
This is a quality XPARTCO aftermarket replacement part designed to replace WPW10144820 on compatible models.
Quick Answer
Use this assembly when a compatible washer fills slowly, will not fill, overfills because a valve does not close correctly, or has a failed inlet thermistor. Verify the full washer model number before ordering because similar Whirlpool-built washers may use different valve assemblies.
Common Problems This Part May Fix
- Washer fills slowly
- Washer will not fill with hot or cold water
- Incorrect water temperature
- Water continues entering after fill should stop
- Intermittent filling
- Fault related to inlet water-temperature sensing
- Cracked or leaking inlet valve body
Replaces and Cross-References
Cross-reference numbers are provided for identification. XPARTCO is an aftermarket replacement brand and is not manufactured by Whirlpool.
Compatibility
Fits select Whirlpool-built top-load washers sold under Whirlpool, Maytag, Amana, Admiral, Crosley, Estate, Inglis, Kenmore, and Roper brands. Compatible examples include:
Important: This is only a partial model list. Confirm the complete washer model number and original valve assembly before purchase.

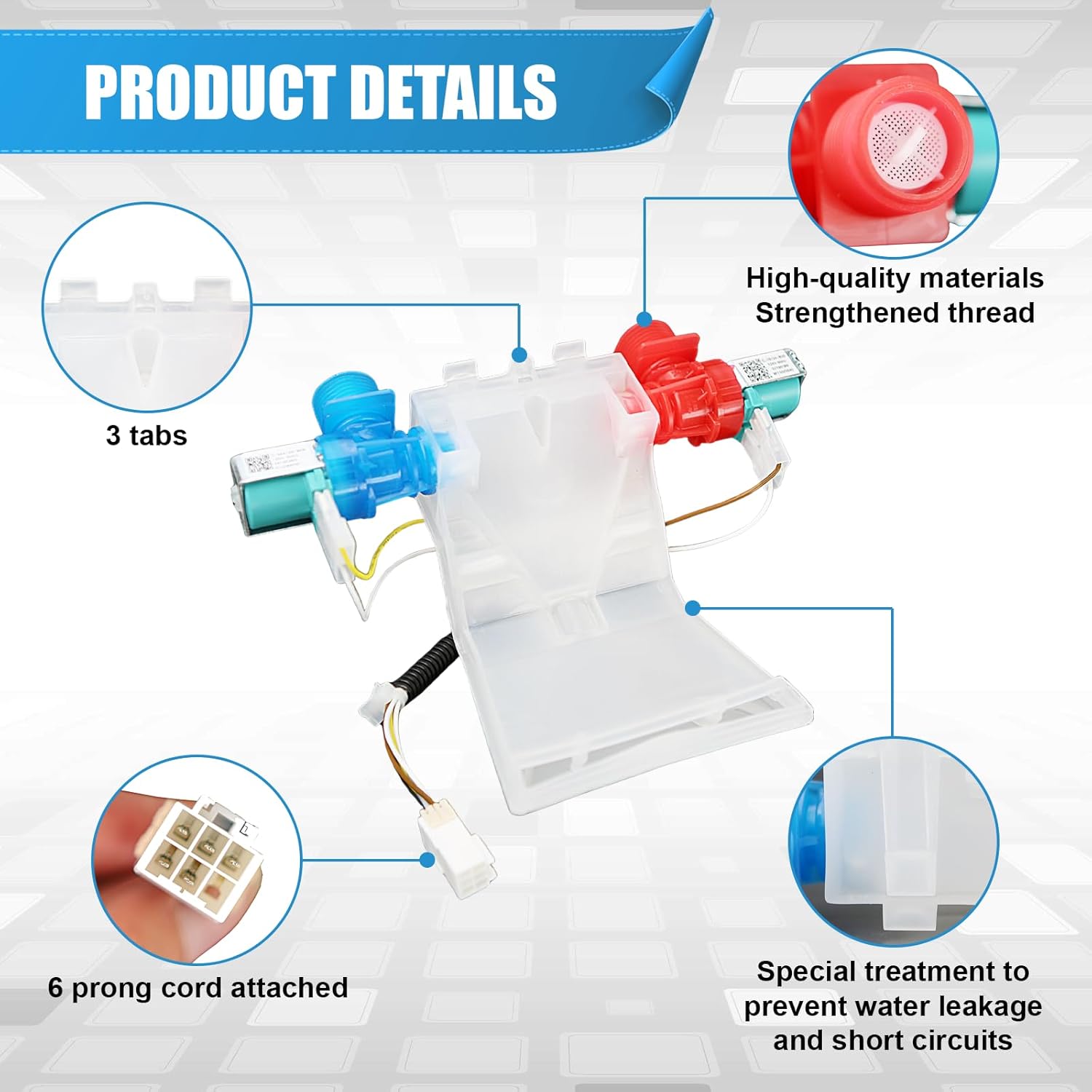

Key Features
- Quality XPARTCO aftermarket replacement
- Complete hot/cold inlet valve assembly
- Built-in thermistor for water-temperature sensing
- Integrated vacuum-break section
- Controls incoming washer water flow
- Replaces WPW10144820 and earlier numbers

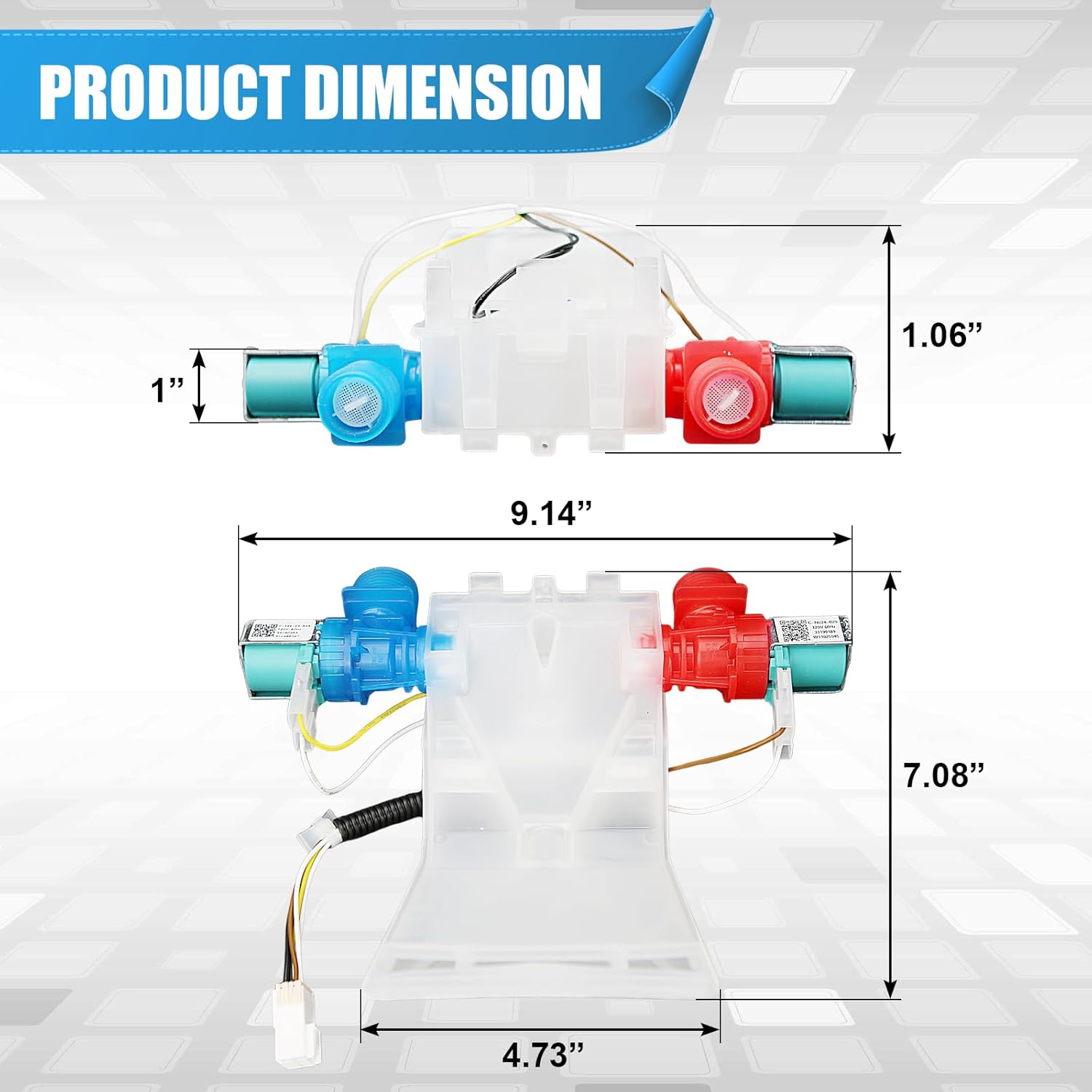

Product Specifications
| XPARTCO Part Number | W10144820 |
| Replaces | WPW10144820 |
| Part Type | Washer Water Inlet Valve Assembly |
| Configuration | Hot + Cold Inlet Valve Assembly |
| Temperature Sensor | Built-In Thermistor |
| Vacuum Break | Included |
| Condition | New |
| Part Quality | Aftermarket Replacement |
| Quantity | 1 Assembly |
Installation Notes
- Unplug the washer and shut off both hot and cold water supplies.
- Relieve hose pressure and disconnect the inlet hoses.
- Photograph the original wiring and hose routing before removal.
- Inspect inlet screens and supply hoses for restriction or damage.
- Transfer connections only after confirming the replacement matches the original assembly.
- Reconnect hot and cold hoses to the correct inlets and check carefully for leaks.
- Restore power and water, then run a fill test to confirm proper hot/cold operation and temperature sensing.
Diagnostic tip: Slow filling can also be caused by clogged inlet screens, kinked hoses, low household water pressure, or partially closed supply valves.
Frequently Asked Questions
Does this assembly include the temperature sensor?
Yes. This valve assembly includes a thermistor used for incoming water-temperature sensing.
Does W10144820 replace WPW10144820?
This XPARTCO part is designed as an aftermarket replacement for the OEM WPW10144820 valve assembly.
Is this a Genuine Whirlpool OEM valve?
No. It is a quality XPARTCO aftermarket replacement.
Will this fit every Whirlpool top-load washer?
No. Whirlpool-built washers use several different inlet-valve designs, so the complete model number should be verified before ordering.
Shop With Confidence
Verify your washer model and original valve number before ordering. Our compatibility team can help confirm whether XPARTCO W10144820 is correct for your appliance.
