EXP694 Dryer Repair Kit Replaces DC97-16782A, 6602-001655, DC93-00634A
The EXP694 Dryer Repair Kit is a complete drum system rebuild solution designed to restore smooth, quiet, and efficient dryer operation. This kit includes the most common wear components found inside your dryer: drum belt, idler pulley, and drum support rollers.
Over time, these parts wear down together, causing squeaking, grinding, drum slippage, or complete failure to spin. Replacing all components at once ensures proper alignment, eliminates noise, and prevents repeat breakdowns — making this the most effective long-term repair solution.
Quick Answer
The EXP694 Dryer Repair Kit fixes dryers that won’t spin, make loud squeaking or grinding noises, or stop tumbling. It replaces the belt, rollers, and idler pulley to restore smooth and quiet drum operation.
Note: Includes four rollers (each with shaft and two tri-rings), one idler pulley, and one belt. Replace all four rollers for even wear. Inspect the drum and felt seal (e.g., DC97-07618A) for wear. Clean lint from the drum and cabinet to prevent overheating.
Common Problems This Part Fixes
- Dryer drum not spinning or slipping
- Loud squeaking, grinding, or thumping noises
- Uneven or slow drum rotation
- Dryer stopping mid-cycle
- Excessive vibration or instability
- Worn belt, rollers, or idler pulley components
Replaces Part Numbers
This repair kit replaces the following common drum system components:
-
Drum Roller: DC97-16782A, AP5325135, DC97-16782C, DC97-16782D, 2027851, DC97-07523A, DC97-07523B, PS4221885, WPW10177428, AP6016361, W10177428, 35001136, DC97-07523A, PS11749648
-
Idler Pulley: DC93-00634A, AP6038887, DC96-00882C, DC61-01230B, DC96-00882B, PS11771601, 12002777, AP4010261, 1401171, 35001083, 35001098, 35001276, AH2004052, DC61-01215A, DC96-00882B, EA2004052, PS2004052
-
Drum Belt: 6602-001655, AP4373659, 1935594, 6602-001314, PS4133825, WPW10205415, AP6017004, W10205415, 35001137, 6602-001314, PS11750299
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This repair kit is compatible with select dryers from the following brands:
- Samsung dryers (gas and electric models)
- Kenmore / Sears dryers (select models built on Samsung platform)
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
- Complete drum repair kit including belt, rollers, and idler pulley
- OEM-equivalent fit, performance, and durability
- Eliminates noise and restores smooth drum rotation
- Prevents repeat repairs by replacing all wear components together
- Cost-effective all-in-one repair solution
- DIY-friendly installation with basic tools
Product Specifications

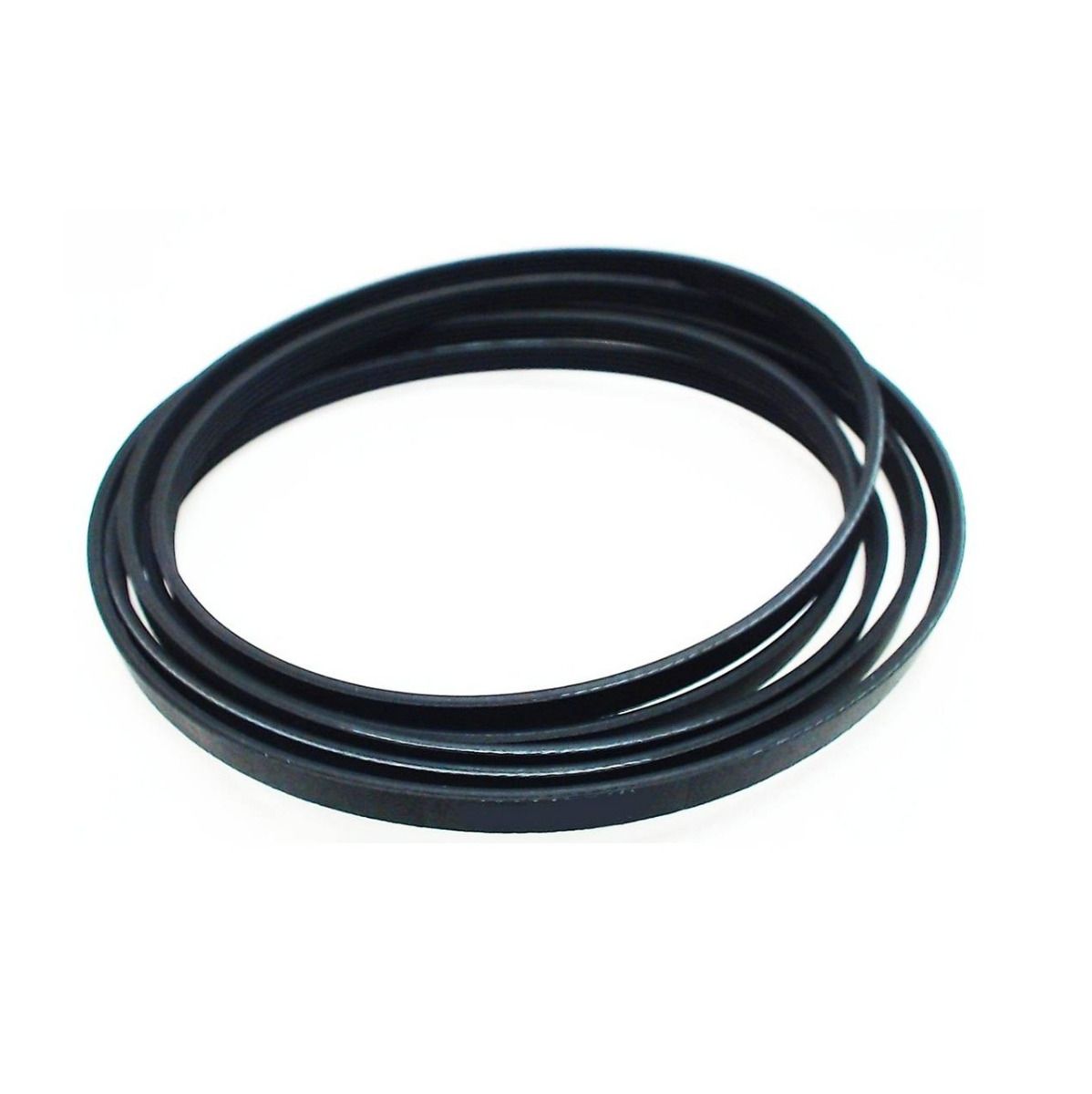

Includes 4 drum rollers (DC97-16782A, ~3-1/4" diameter x 1-1/8" width, blue/black plastic/rubber, metal shaft, self-lubricating bushing with ball bearing, each with shaft and two tri-rings), 1 idler pulley (DC93-00634A, metal/plastic), 1 drum belt (6602-001655, 92" long, 5 ribs, neoprene), kit dimensions ~10"L x 6"W x 4"H.
| Part Type | Dryer Repair Kit |
| Includes | Belt, Rollers, Idler Pulley |
| Application | Dryer Drum System |
| Condition | Aftermarket Replacement |
| Compatible Brands | Samsung, Kenmore |
Installation Notes
Frequently Asked Questions
Should I replace all parts at once?
Yes. The belt, rollers, and pulley wear together. Replacing all components ensures smooth operation and prevents future breakdowns.
Will this fix dryer noise?
Yes. This kit resolves most squeaking, grinding, and thumping noises caused by worn drum components.
Is this an OEM part?
This is a high-quality aftermarket repair kit built to OEM-equivalent standards for performance and durability.
