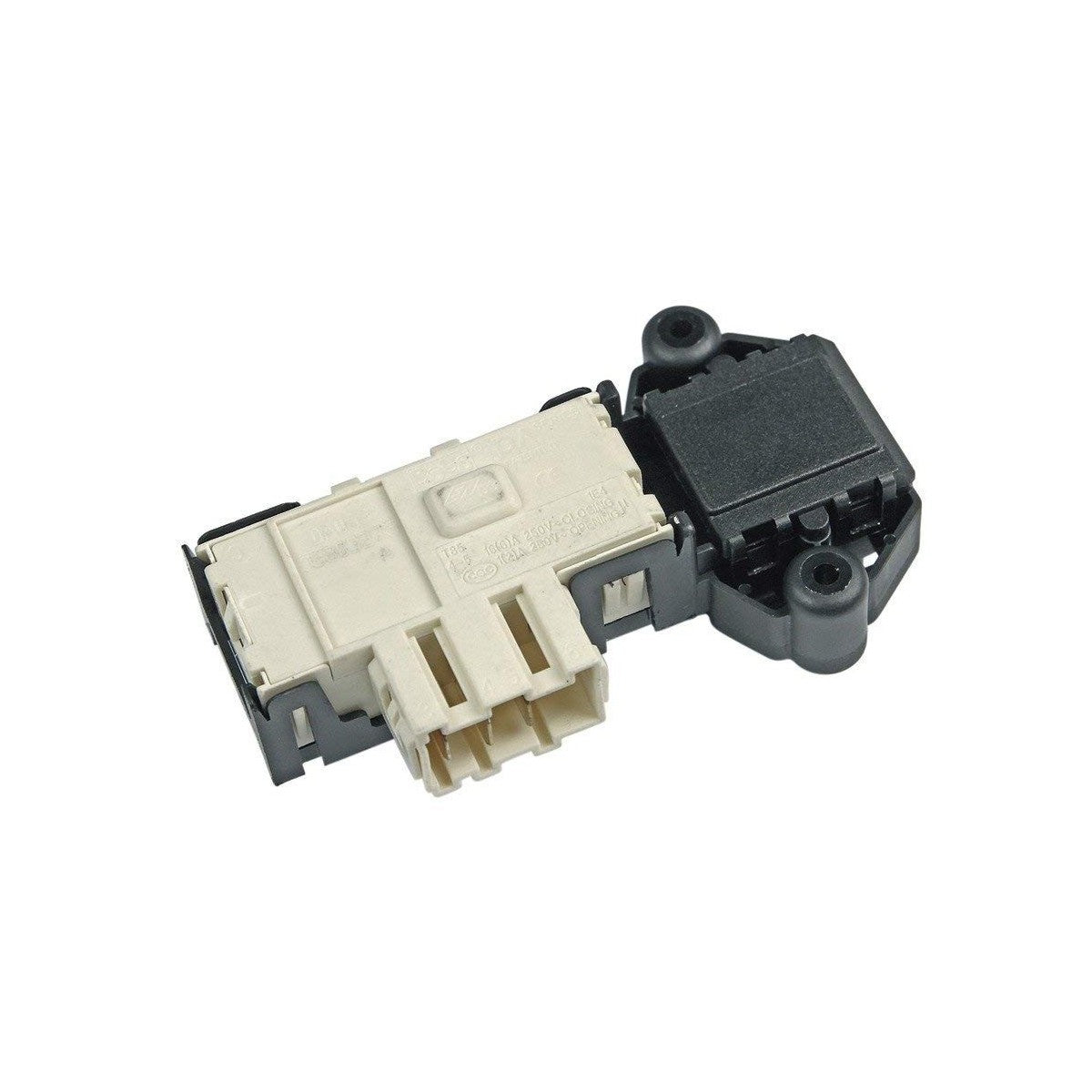

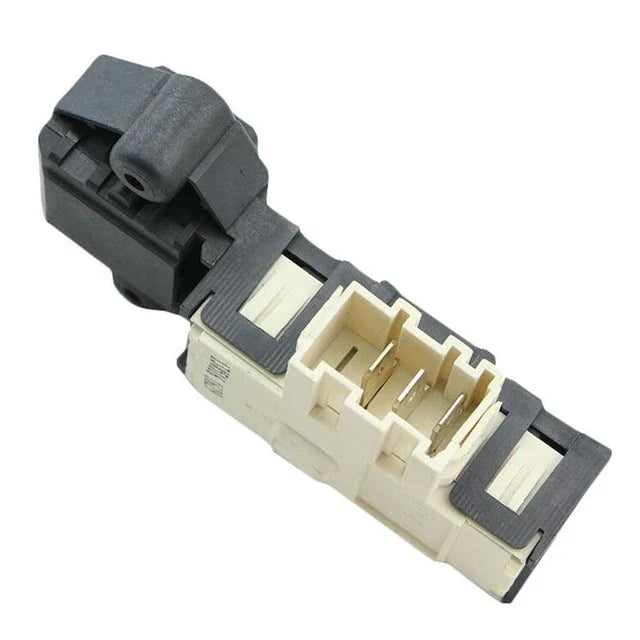

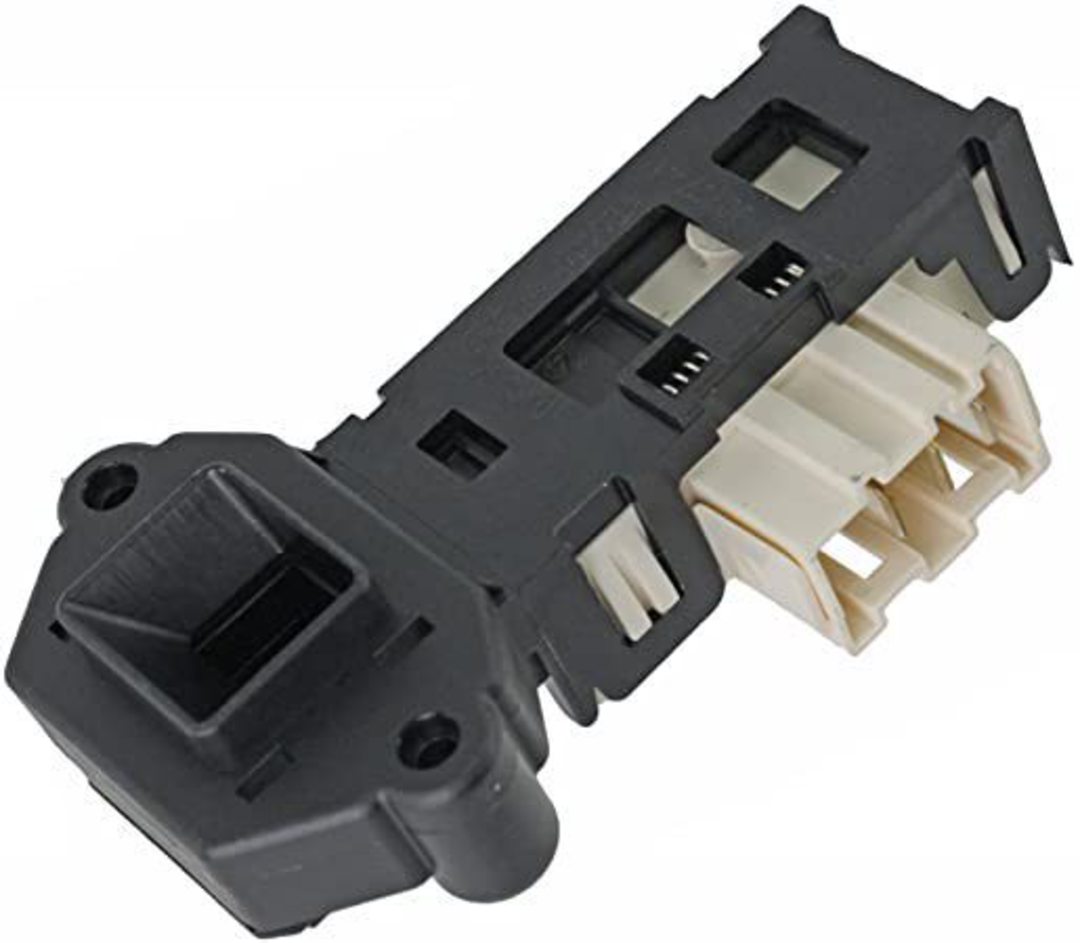

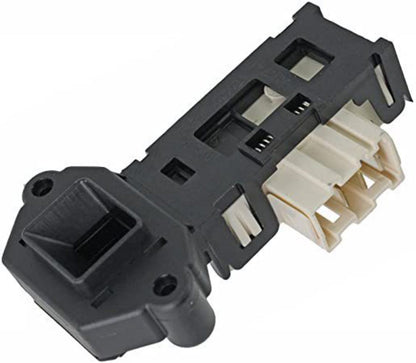

DC64-00653A Washer Door Lock Replaces DC64-00653C, DC64-00653B

DC64-00653A Washer Door Lock – Replaces DC64-00653C – Compatible with Samsung Washers

Product Description

Ensure safe and reliable washer operation with the DC64-00653A Washer Door Lock. This Door Switch is a replacement part for specific Samsung washing machine models. It is responsible for detecting whether the washer door is securely closed or open. The door switch ensures that the washer operates only when the door is properly closed and latched.  A bad washer door switch can occur due to wear and tear over time, electrical malfunctions, or physical damage. If the door switch fails, it can prevent the washer from starting or cause it to stop mid-cycle, resulting in inconvenience and disruption to your laundry routine.

Replaces Part Numbers

DC64-00653A, AP4205709, PS4210825, DC64-00653C, DC64-00653B, AP4578929, PS4210828.

Compatibility

This replacement door lock assembly fits select Samsung front-load washers.

Example compatible models include (but are not limited to): Samsung WF218ANW/XAA, WF220ANW/XAA, WF231ANW/XAA, and WF328AAW/XAA.

Always verify your washer’s model number before ordering. Contact our support team if you’re unsure.

✅ Key Features

• 🔄 Aftermarket Replacement – Designed to meet OEM fit and safety performance

• 🚪 Secure Door Locking – Prevents washer door from opening during cycles

• 💰 Cost-Effective Solution – High-quality part at a lower cost than OEM alternatives

• 🛠️ Quick Installation – Plug-and-play wiring design for easy replacement

• 🛡️ Fixes Common Issues – Solves door lock errors, washer not starting, or mid-cycle stopping problems

📐 Product Specification

• Part Number: DC64-00653A (Replaces DC64-00653C)

• Component Type: Washer Door Lock & Switch Assembly

• Material: Reinforced plastic housing with electrical connectors

• Mounting: Direct-fit behind front panel latch area

• Operating Conditions: Designed for high-moisture laundry environments

• Compliance: Built to OEM-equivalent quality standards (not OEM)

🛠️ Installation Notes

Tools Needed: Phillips screwdriver, flathead screwdriver

⚠️ Safety First: Always unplug the washer before servicing to prevent electrical shock.

Steps:

1. Unplug washer and open the door.

2. Remove the rubber door seal clamp and peel the gasket slightly back.

3. Unscrew and remove the old door lock assembly.

4. Connect the wiring harness to the new DC64-00653A door lock.

5. Mount the new lock securely and reposition the door gasket and clamp.

6. Restore power and test washer operation.

⏱️ Time Required: 15–25 minutes
