XPARTCO
DC47-00018A Dryer Thermostat for Samsung AP4201898, PS4205217
DC47-00018A Dryer Thermostat for Samsung AP4201898, PS4205217
Couldn't load pickup availability

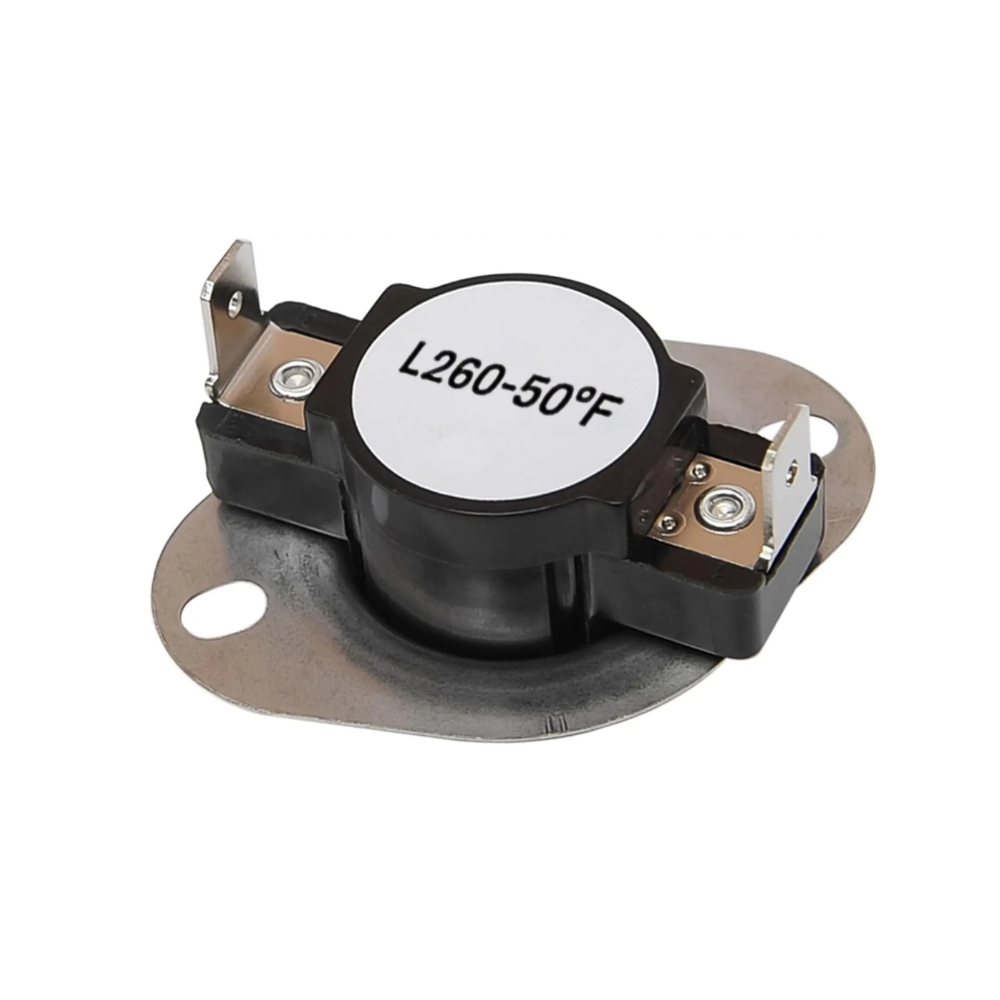

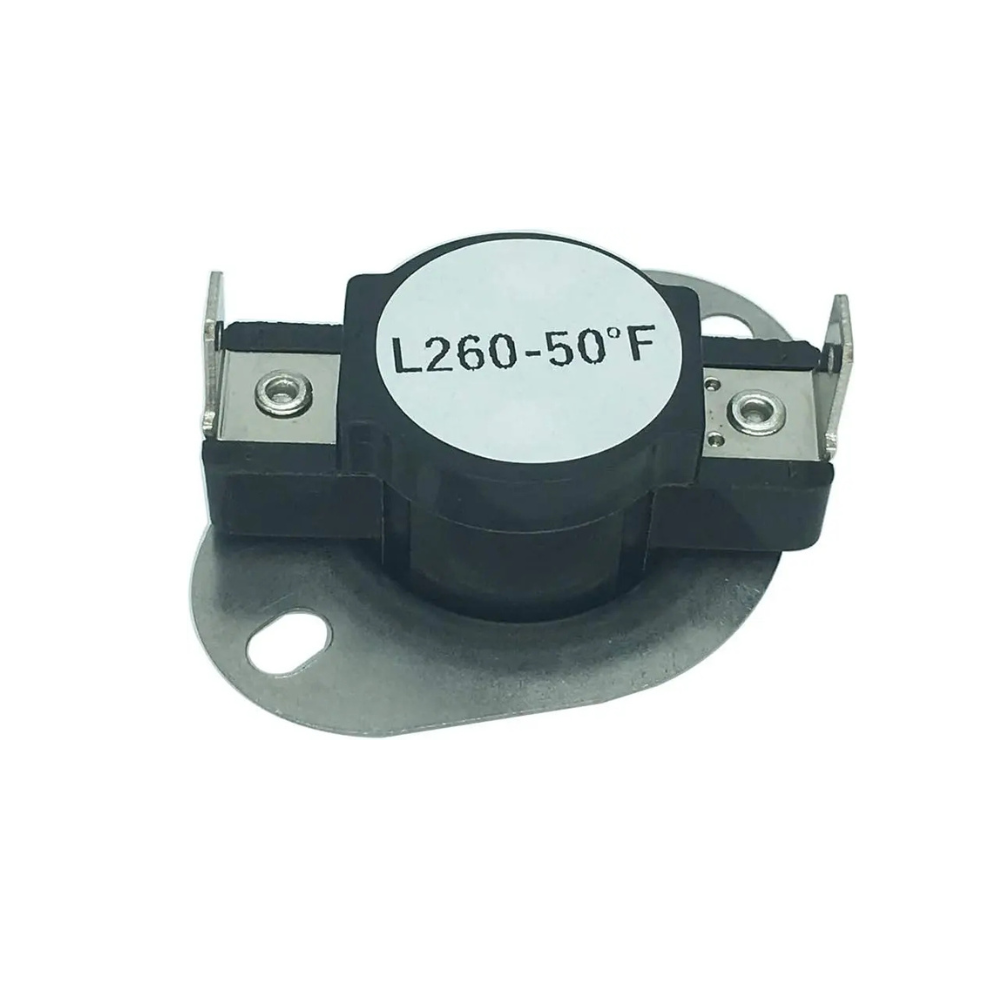

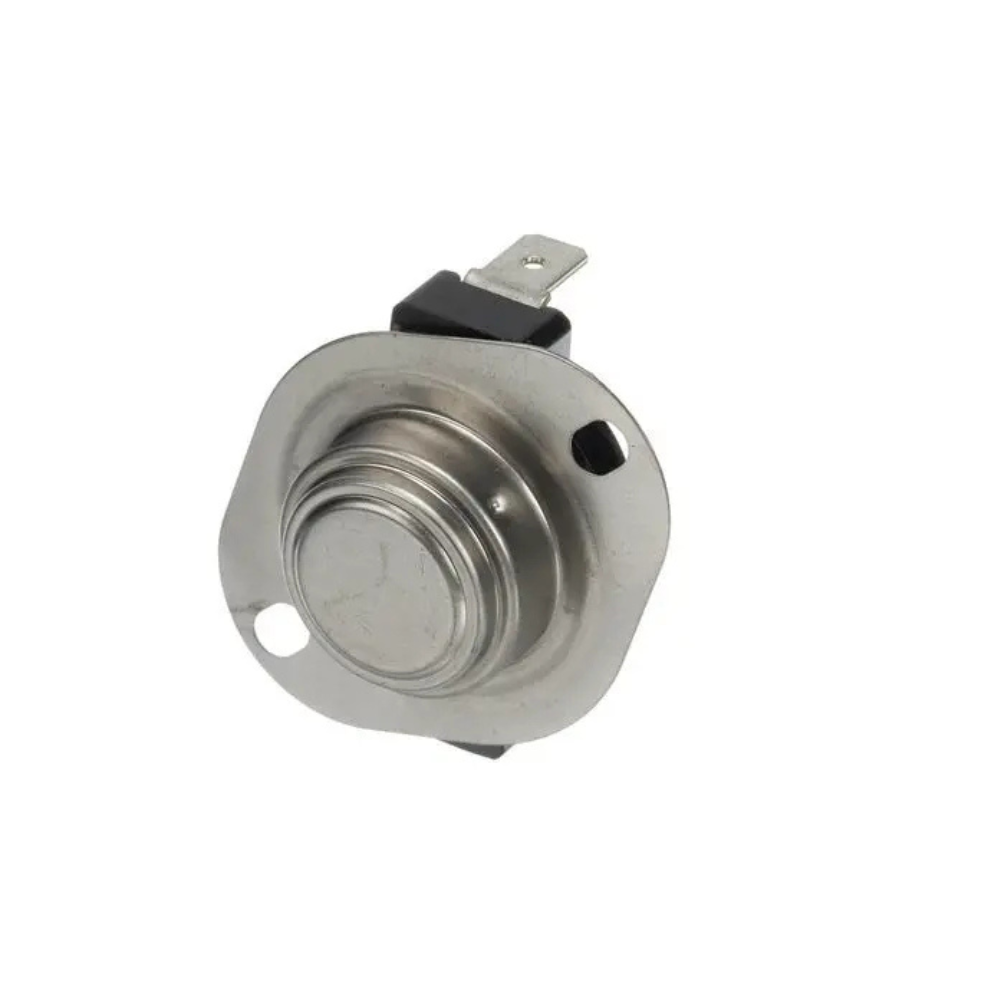

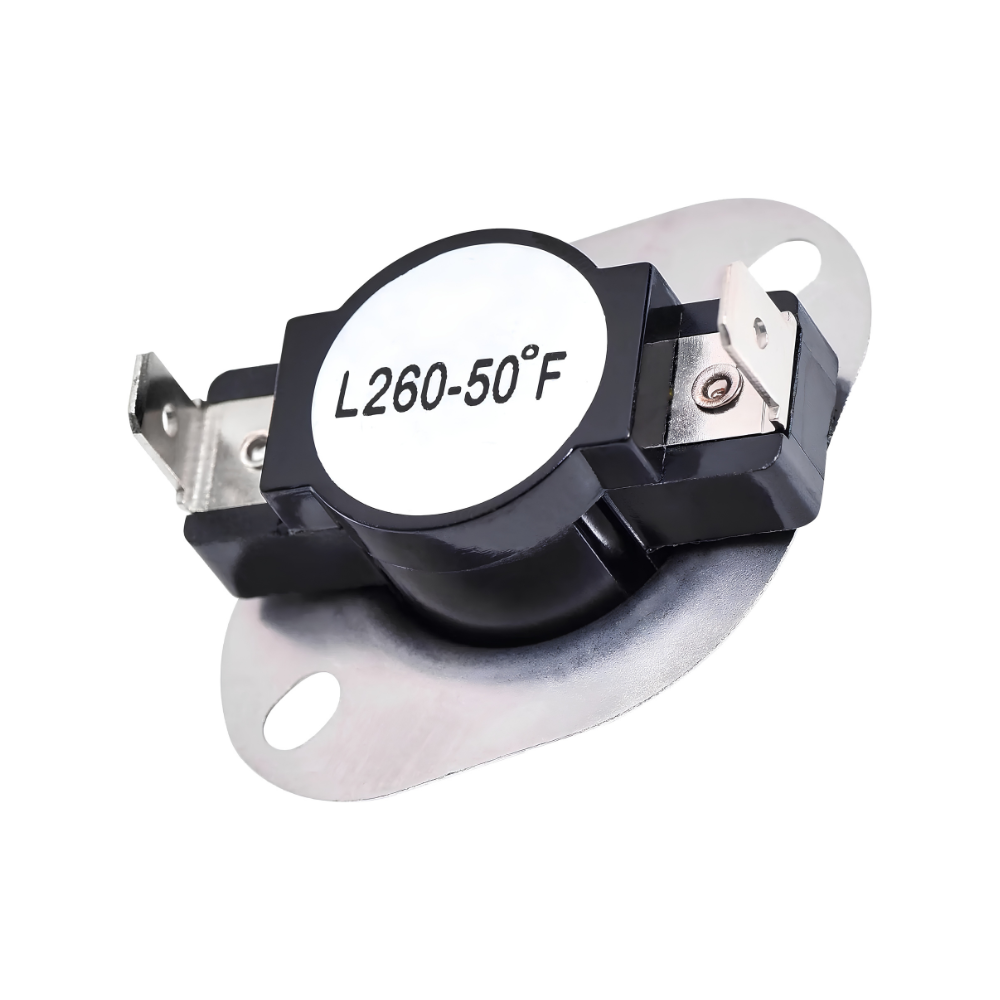

XPARTCO DC47-00018A Dryer High-Limit Thermostat
Aftermarket high-limit safety thermostat for select Samsung-built electric and gas dryers.
Product Overview
The XPARTCO DC47-00018A Dryer High-Limit Thermostat is a quality aftermarket replacement designed to help protect compatible dryers from overheating. The thermostat monitors heater-area temperature and opens the heating circuit when temperature rises beyond its limit.
This part is commonly identified by the marking L260-50F and is used on many Samsung-built dryers, including select Samsung, Kenmore, and Amana models.
Quick Answer
DC47-00018A is a dryer high-limit thermostat used to shut off the heating element or burner if the dryer overheats. Common references include AP4201898, PS4205217, and 1122485. Verify the complete dryer model number before ordering because similar-looking thermostats can have different temperature ratings.
Common Problems This Part May Fix
- Dryer will not heat
- Dryer overheats or becomes excessively hot
- Heat shuts off unexpectedly
- High-limit thermostat tests open when cool
- Repeated overheating caused the original thermostat to fail
Replaces and Cross-References
Cross-reference numbers are provided for identification. XPARTCO is an aftermarket replacement brand and is not manufactured by Samsung.
Compatibility
Designed for select Samsung-built dryers. Compatible model examples include:
Important: This is only a partial compatibility list. Confirm the complete appliance model number and original thermostat part number before purchase.
Key Features
- Quality XPARTCO aftermarket replacement
- High-limit dryer safety thermostat
- Common marking: L260-50F
- Helps protect the dryer from overheating
- Used on select Samsung-built dryer platforms
- Sold individually
Product Specifications
| XPARTCO Part Number | XPDC47-00018A |
| Brand | XPARTCO |
| Part Type | Dryer High-Limit Thermostat |
| Thermostat Marking | L260-50F |
| Condition | New |
| Part Quality | Aftermarket Replacement |
| Primary Function | Interrupts dryer heat during an over-temperature condition |
| Approx. Size | About 2 in. wide × 1-1/2 in. high |
| Package Quantity | 1 Thermostat |
Installation & Diagnostic Notes
- Disconnect the dryer from electrical power before service.
- For gas dryers, also shut off the gas supply before disassembly.
- Verify the original thermostat part number and temperature marking before replacement.
- Photograph and label wiring before disconnecting the original thermostat.
- Inspect the lint filter, blower housing, exhaust duct, outside vent, heating element or burner, thermistor, and related thermostats for the cause of overheating.
- Install the replacement in the same position and reconnect all wiring securely.
- Reassemble all panels before restoring power or gas.
Important: A high-limit thermostat is a safety device. If it has opened or repeatedly fails, do not simply bypass it or continue operating the dryer. Correct the underlying airflow or heating-system problem first.
Frequently Asked Questions
What does DC47-00018A do?
It acts as a high-temperature safety thermostat and interrupts dryer heat if temperature rises beyond its designed limit.
Is L260-50F the same as DC47-00018A?
L260-50F is a common temperature marking associated with DC47-00018A. Always verify the complete dryer model and original part number before replacement.
Is this the same part as DC47-00016A?
No. DC47-00016A is a different thermal safety component with a different application and rating. Do not substitute similar-looking dryer thermostats or thermal fuses without model-specific verification.
Is this a Genuine Samsung OEM part?
No. This is a quality XPARTCO aftermarket replacement part.
Shop With Confidence
Verify your complete dryer model number and original thermostat number before ordering. Our compatibility team can help determine whether XPARTCO DC47-00018A is correct for your dryer.
