5220FR2006H Washer Genuine OEM Hot Water Valve
5220FR2006H Washer Genuine OEM Hot Water Valve
Couldn't load pickup availability

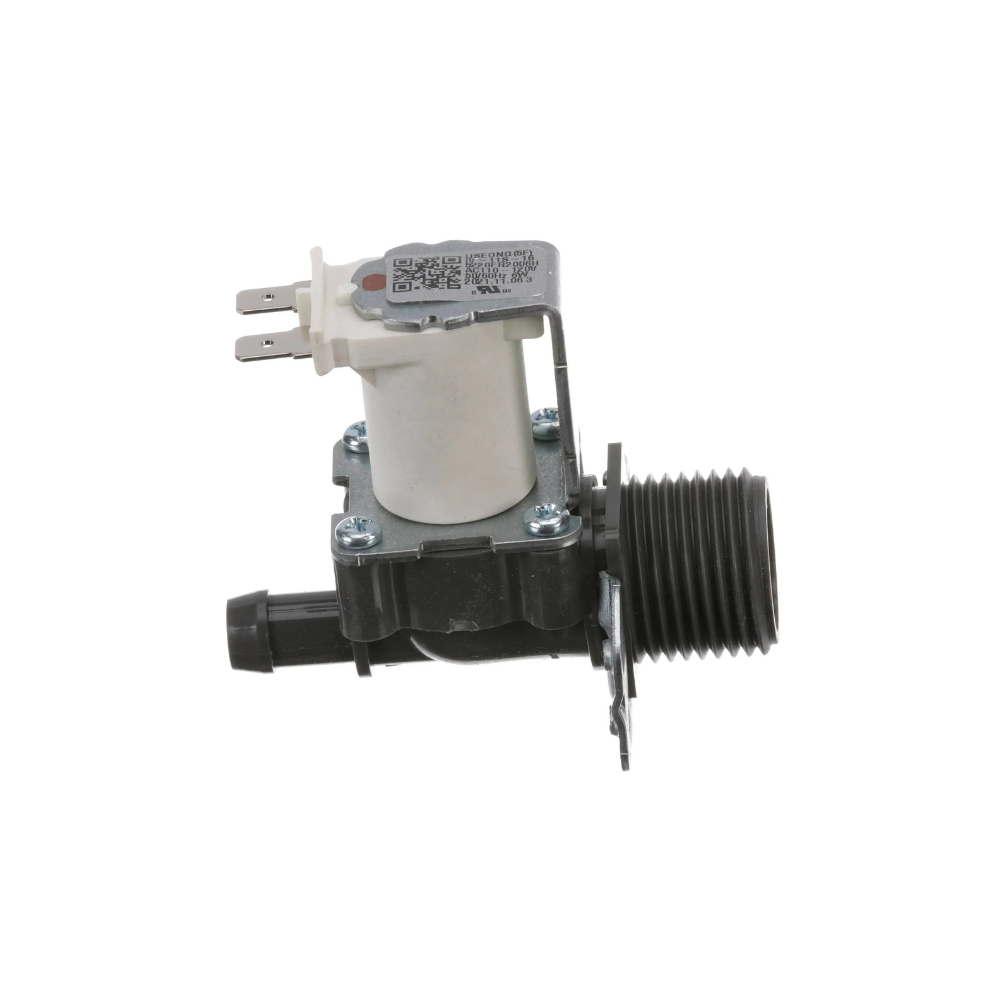

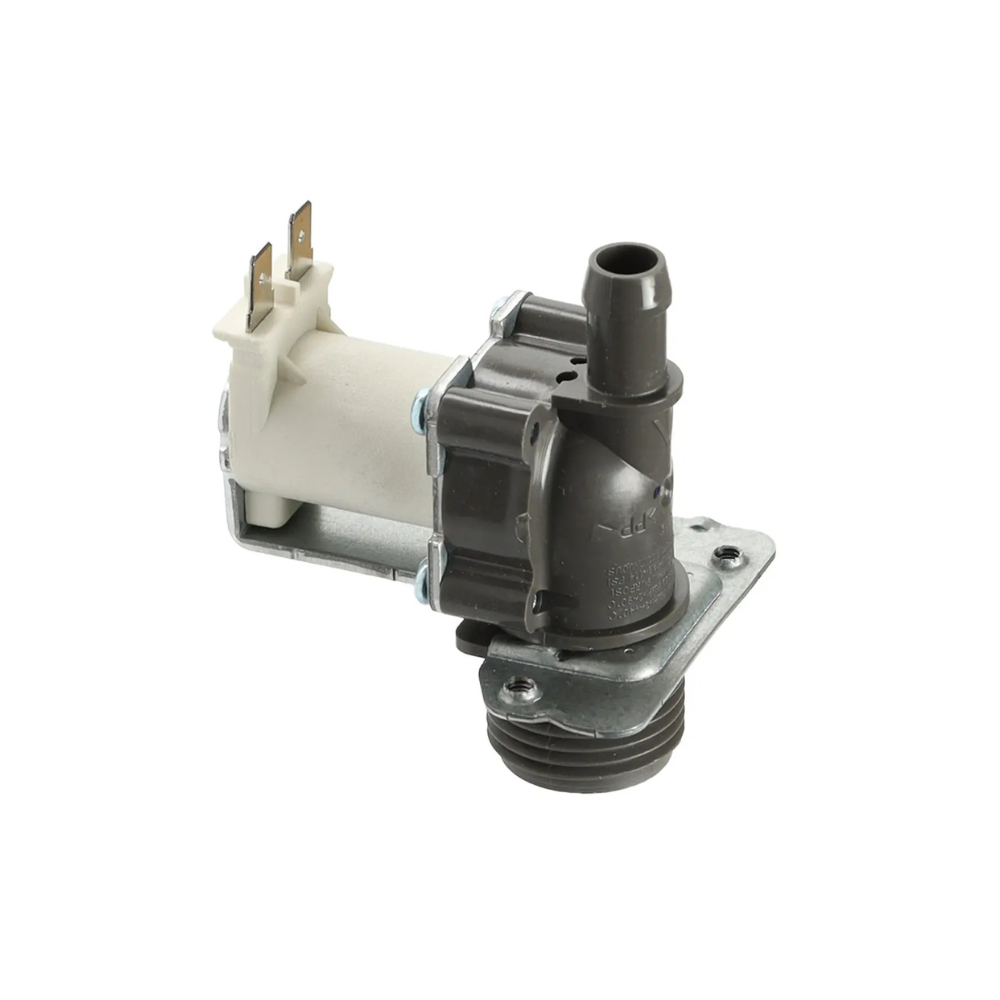

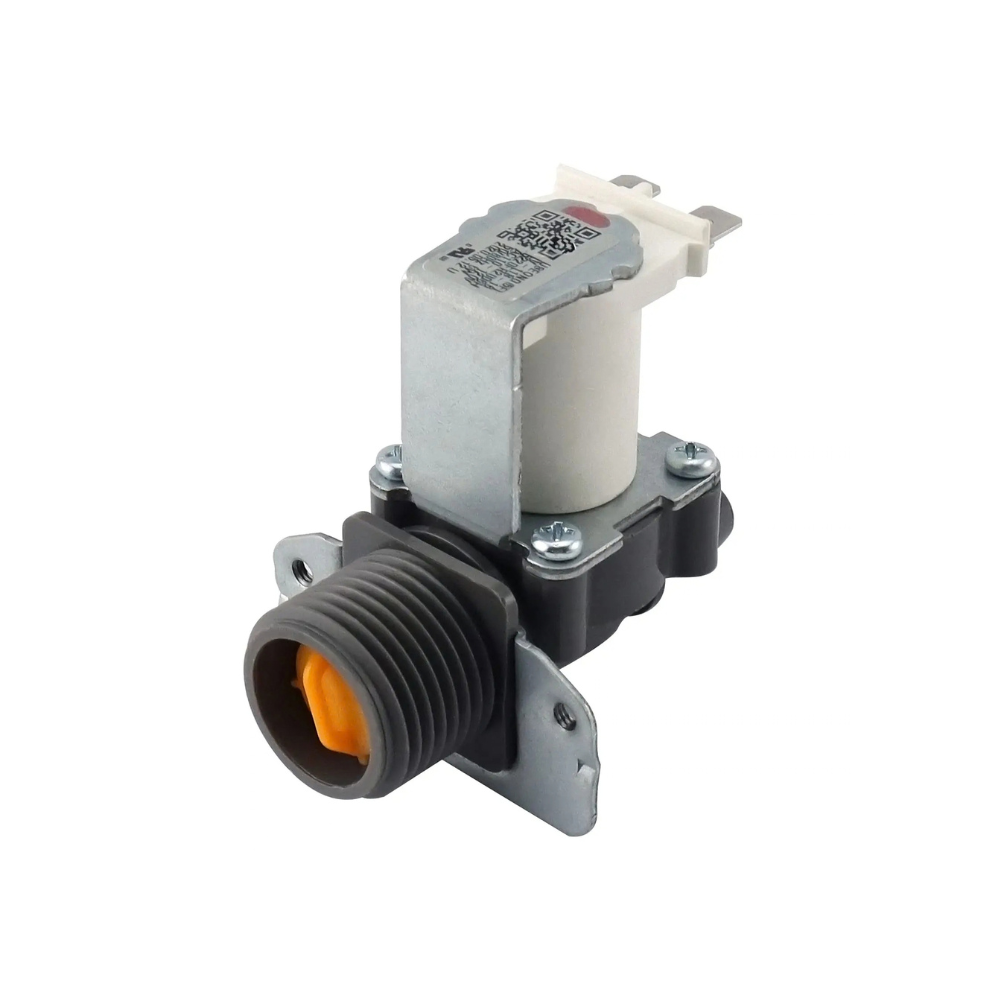

5220FR2006H Washer Genuine OEM Water Inlet Valve (Hot)
The 5220FR2006H is a genuine LG OEM hot water inlet valve for LG front-load washers, and also fits select Kenmore models. This valve connects to your home's hot water line and controls the flow of hot water into the tub during the fill portion of each cycle, opening as the cycle calls for hot water and closing once the correct fill level and temperature mix are reached. The valve has a standard hose fitting inlet and a single water outlet.
Common causes of failure include mineral or sediment buildup inside the valve body and general electrical wear in the solenoid. Symptoms of a failing valve include the washer not filling, not stopping when it should, not starting, leaking water, not washing properly, no hot water reaching the tub, or an IE error code displayed on the control panel. It directly replaces 1268123, 5220FR1280F, 5220FR2006L, 5220FR2006Q, AP4441935, ALG51717, AH3527427, EA3527427, EAP3527427, PD00001765, PS3527427.
Quick Answer
The 5220FR2006H Washer Genuine OEM Water Inlet Valve (Hot) fixes LG and select Kenmore front-load washers with no hot water, won't fill, won't stop filling, won't start, leaking, or an IE error code. Standard hose fitting inlet, 1 outlet. Replaces 1268123, 5220FR1280F, 5220FR2006L, 5220FR2006Q, AP4441935, ALG51717, AH3527427, EA3527427, EAP3527427, PD00001765, PS3527427. This is the hot water valve — a separate but related cold water valve is used alongside it. If both valves are original and the same age, consider replacing both together while you have the washer open.
Common Problems This Part Fixes
- No hot water reaching the tub
- Washer not filling with water
- Washer not stopping fill when it should
- Washer not starting
- Water leaking from the valve area
- IE error code displayed on the control panel
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer hot water inlet valve directly replaces the following OEM and cross-reference part numbers:
1268123, 5220FR1280F, 5220FR2006L, 5220FR2006Q, AP4441935, ALG51717, AH3527427, EA3527427, EAP3527427, PD00001765, PS3527427
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This hot water inlet valve is compatible with select LG front-load washers, and also fits select Kenmore washers built on the LG platform, including model numbers such as WM2240CW, WM2250CW, WM2277HW, WM3170CW, WM3250HV, 40272, 40441 (ABWESEU), 41002, 41003, 41172 (ABWEPEU), 41172 (ABWESEU), 41182, 41262 (ABWEPEU), 41262 (ABWEVEU), and 41283.
Note: This is the hot water valve. Our 5220FR2008C listing is the related cold water valve, and our 5220FR2008F listing is a closely related water inlet and dispenser valve assembly used on other models — these are separate parts serving different roles or platforms. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which valve your washer needs.
Key Features
- Genuine LG OEM part — factory-specified solenoid design and flow rate
- Regulates hot water flow into the tub during fill
- Resolves "no hot water," "won't fill," "won't stop filling," "won't start," "leaking," and "IE error code" symptoms
- Standard hose fitting inlet, 1 water outlet
- Direct drop-in replacement — matches the original mounting and hose connections
- Replaces 1268123, 5220FR1280F, 5220FR2006L, 5220FR2006Q, AP4441935, ALG51717, AH3527427, EA3527427, EAP3527427, PD00001765, PS3527427
- Compatible with LG and select Kenmore front-load washers
- Genuine OEM replacement — guaranteed fit, materials, and performance
- Simple 15-minute DIY repair
Product Specifications
| Part Number | 5220FR2006H |
| Part Type | Washer Hot Water Inlet Valve |
| Condition | Genuine OEM |
| Brand | LG |
| Application | Front-Load Washers |
| Inlet | Standard hose fitting |
| Outlet | 1 |
| Related Part | 5220FR2008C cold water valve (sold separately) |
| Repair Difficulty | Easy — approx. 15 minutes |
| Quantity | 1 valve |
| Compatible Brands | LG, Kenmore |
Installation Notes
Frequently Asked Questions
My washer isn't getting hot water. Is this the part I need?
Yes, this is the most direct symptom of a failed hot water inlet valve. Since this valve is what admits hot water from your household supply into the washer, a solenoid failure or internal blockage can prevent hot water from entering properly, even if cold water fill still works normally.
My washer shows an IE error code. Could this valve be the cause?
Yes, an IE error code on LG washers is commonly tied to a fill issue, and a failed inlet valve — hot or cold — is one of the most frequent causes. Confirm which side (hot or cold) is actually affected before ordering, since these are separate parts.
Should I replace the cold water valve at the same time?
It's worth considering, especially if both valves are the same age. One customer specifically purchased both the hot and cold water inlet valves together during a single repair, along with a new drain pump motor, rather than tackling each part separately over multiple repairs.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by LG to factory specifications — guaranteed fit, materials, and performance. It matches the original solenoid design, flow rate, and connection type of the hot water inlet valve originally installed in your washer.
