242018304 Refrigerator Condenser Fan Motor 242018301, FDQR107E3L, 297279502

242018304 Refrigerator Condenser Fan Motor 242018301, FDQR107E3L, 297279502

$32.20 USD
$56.10 USD $32.20 USD
Sale Sold out
Shipping calculated at checkout.

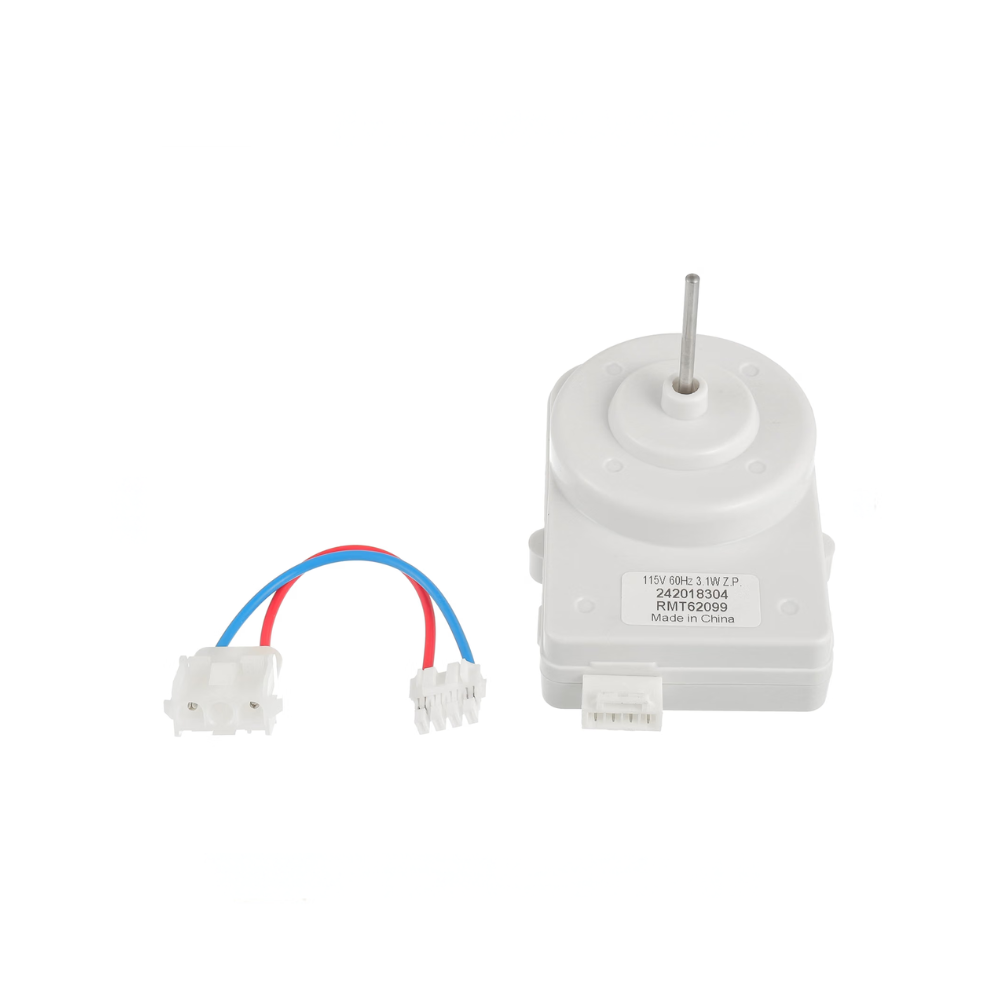

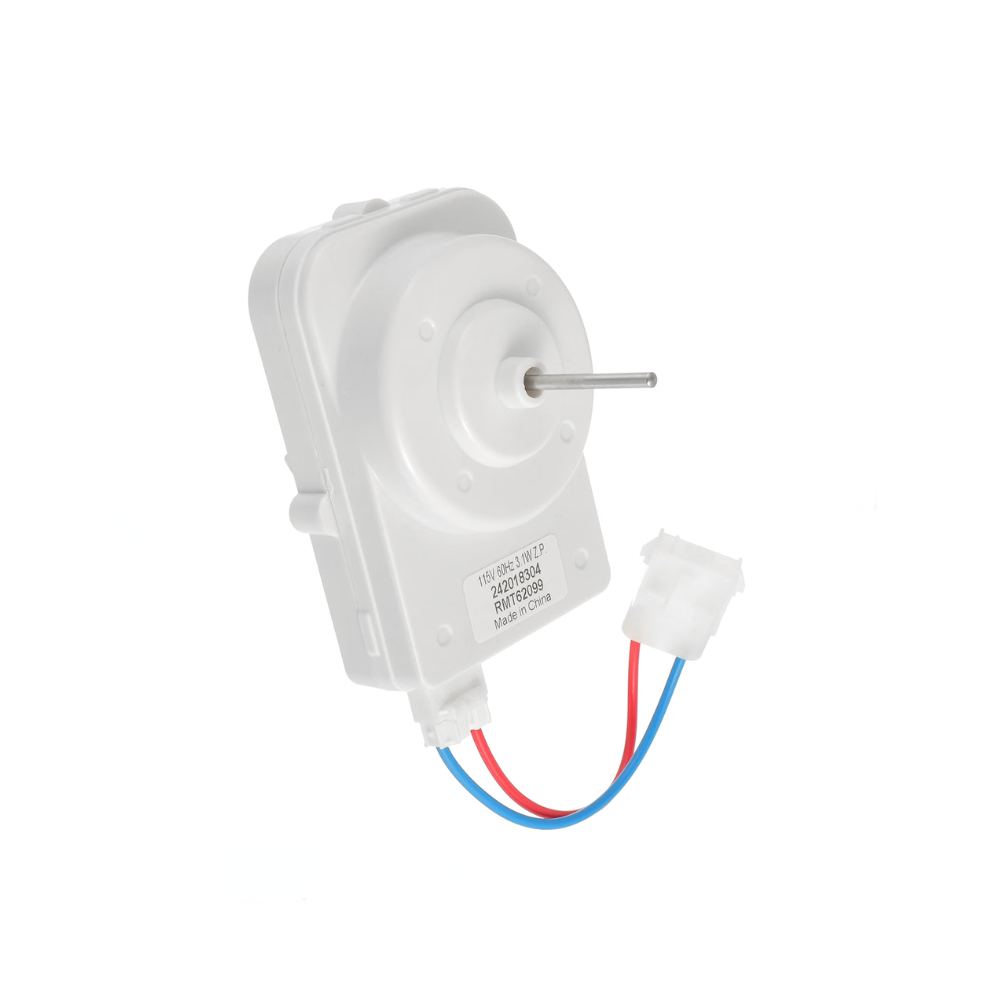

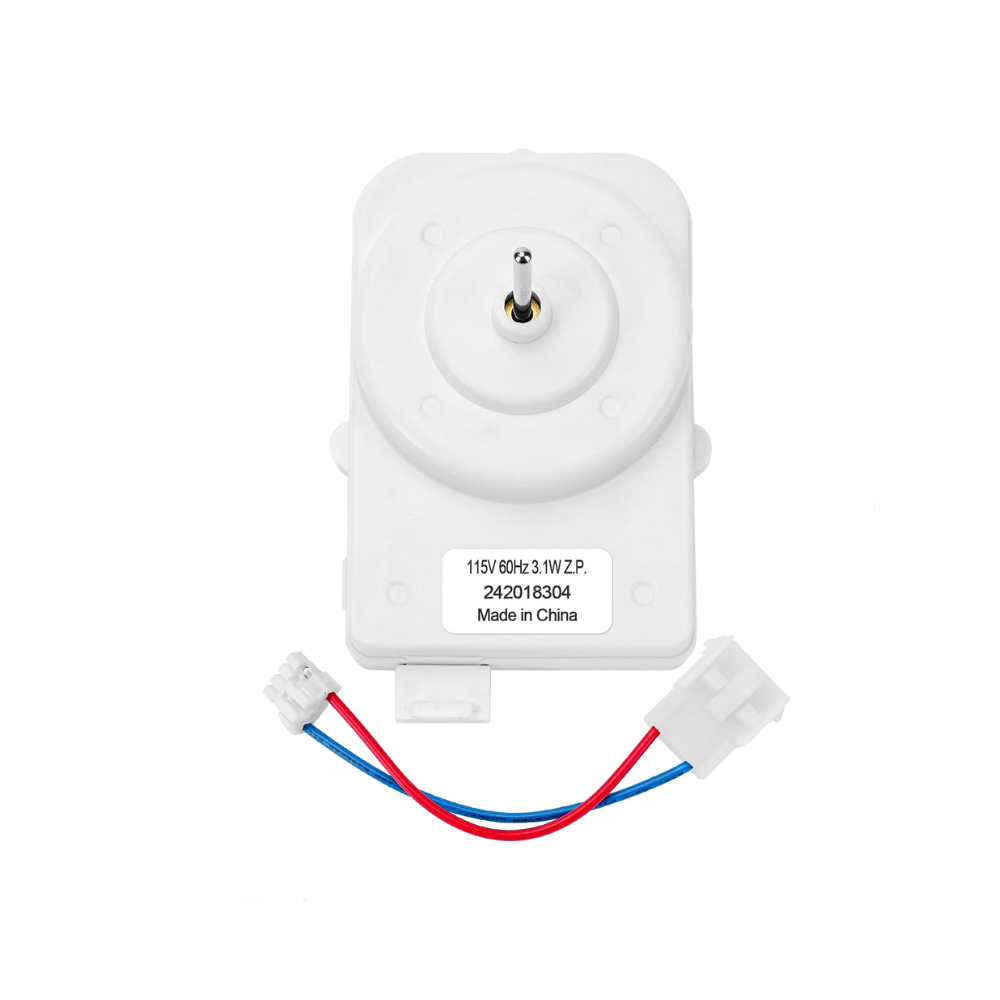

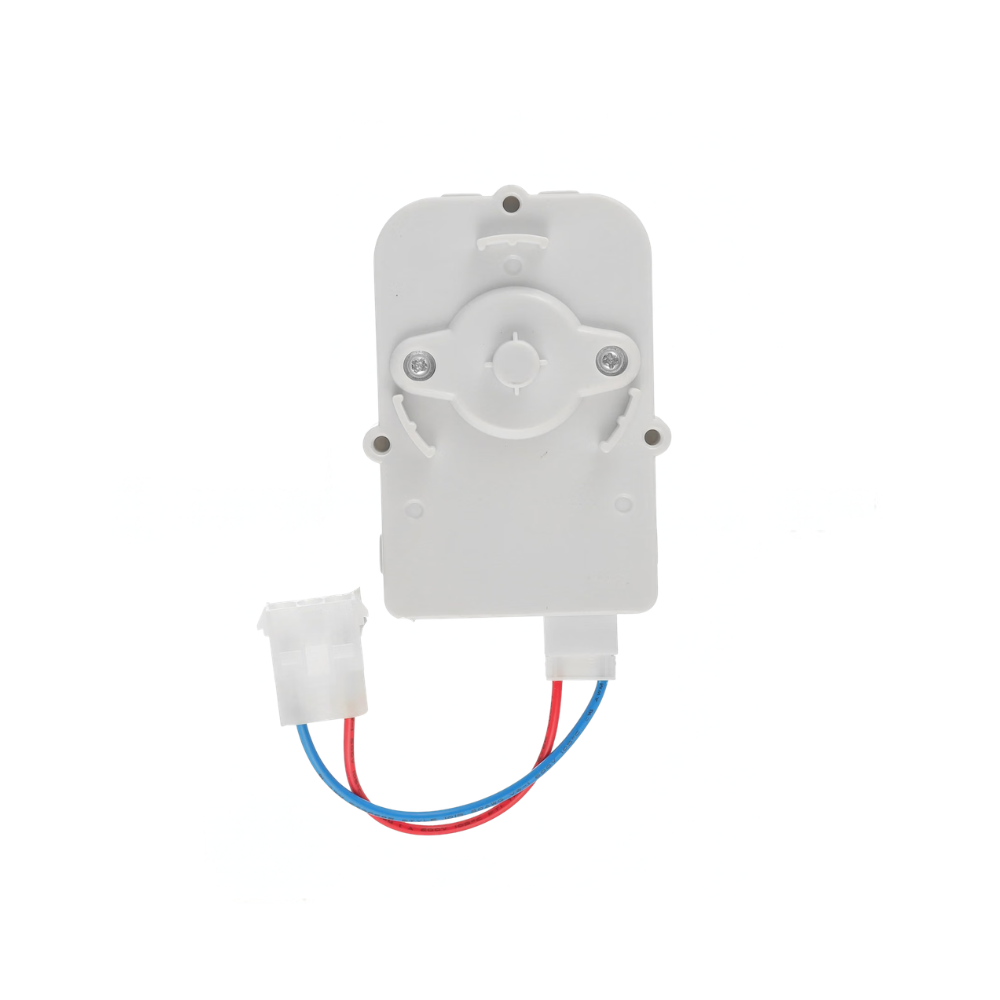

XPARTCO 242018304 Refrigerator Condenser Fan Motor Replaces 242018301

The XPARTCO 242018304 is an aftermarket replacement condenser fan motor for Frigidaire refrigerators, and also fits select Kenmore, Electrolux, Crosley, Ikea, and White-Westinghouse models. This motor turns the condenser fan blade, pulling air in and circulating it through the condenser coils and over the compressor to help keep them cool as the refrigerator runs.

Rated 115V, 60Hz, 3.1W, with a shaft length of approximately 1.8" and a shaft diameter of approximately 0.12". Measures approximately 3-3/8"L x 2-13/16"W x 4"H, with a 2-wire harness measuring about 4-1/4" long. Finished in white, blue, and red, made of plastic and metal with a satin finish. Common causes of failure include normal wear and aging of the motor bearings, or electrical failure over time. Symptoms of a failing condenser fan motor include the refrigerator or freezer running too warm, unusual noise, the compressor running hotter than normal, or the refrigerator not cooling at all if the motor stops turning entirely. It directly replaces 242018301, 2025970, 242018304, 297279502, 4931052, AP5272397, AP6891872, AFR15835, EAP12728810, EAP3501052, FDQR107E3L, PD00025198, PS12728810, PS3501052.

Quick Answer

The XPARTCO 242018304 Refrigerator Condenser Fan Motor fixes Frigidaire, Kenmore, Electrolux, Crosley, Ikea, and White-Westinghouse refrigerators that are running too warm, making unusual noise, or not cooling at all. 115V, 60Hz, 3.1W, shaft ~1.8" x 0.12". Replaces 242018301, 2025970, 242018304, 297279502, 4931052, AP5272397, AP6891872, AFR15835, EAP12728810, EAP3501052, FDQR107E3L, PD00025198, PS12728810, PS3501052. Includes a 2-wire harness, so you don't need to source that separately.

Common Problems This Part Fixes

  • Refrigerator running too warm
  • Refrigerator and freezer both running too warm
  • Unusual or loud noise from the condenser fan area
  • Compressor running hotter than normal
  • Refrigerator not cooling at all

Cross Reference Information

Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.

Replaces Part Numbers

This refrigerator condenser fan motor directly replaces the following OEM and cross-reference part numbers:

242018301, 2025970, 242018304, 297279502, 4931052, AP5272397, AP6891872, AFR15835, EAP12728810, EAP3501052, FDQR107E3L, PD00025198, PS12728810, PS3501052

If your part number is not listed above, contact our support team before ordering and we will verify compatibility.

Compatibility

This condenser fan motor is compatible with select Frigidaire refrigerators, and also fits select Kenmore, Electrolux, Crosley, Ikea, and White-Westinghouse refrigerators built on the Frigidaire platform, including model numbers such as 20462151B and FFHS2622MBA.

Note: Always verify your full model number before ordering, since Frigidaire uses several different condenser fan motors across its refrigerator lineup. Contact our support team with your model number if you're unsure.

Key Features

  • Aftermarket replacement condenser fan motor — circulates air across the condenser coils and compressor
  • Resolves "too warm," "unusual noise," and "not cooling" symptoms caused by motor failure
  • Rated 115V, 60Hz, 3.1W
  • Includes 1 condenser fan motor and 1 2-wire harness
  • Approximately 3-3/8"L x 2-13/16"W x 4"H
  • Shaft length ~1.8", shaft diameter ~0.12"
  • Direct drop-in replacement matching the original mounting and connections
  • Replaces 242018301, 2025970, 242018304, 297279502, 4931052, AP5272397, AP6891872, AFR15835, EAP12728810, EAP3501052, FDQR107E3L, PD00025198, PS12728810, PS3501052
  • Compatible with Frigidaire, Kenmore, Electrolux, Crosley, Ikea, and White-Westinghouse refrigerators
  • Aftermarket replacement built to OEM-equivalent quality standards

Product Specifications

Part Number 242018304
OEM Part Number 242018301
Part Type Refrigerator Condenser Fan Motor
Condition Aftermarket Replacement
Voltage 115V
Frequency 60 Hz
Power 3.1 W
Shaft Length Approx. 1.8"
Shaft Diameter Approx. 0.12"
Dimensions Approx. 3-3/8"L x 2-13/16"W x 4"H
Harness Length Approx. 4-1/4"
Color White / Blue / Red
Material Plastic / Metal
Finish Satin
Includes Condenser fan motor, 2-wire harness
Repair Difficulty Easy to Moderate
Quantity 1 condenser fan motor
Compatible Brands Frigidaire, Kenmore, Electrolux, Crosley, Ikea, White-Westinghouse

Installation Notes

⚠️ Unplug Refrigerator Before Starting Unplug the refrigerator and safely store any food that could spoil or deteriorate while the power is off. Wear work gloves to protect your hands. Locate the condenser fan motor, typically found near the compressor at the back or underside of the refrigerator, and remove the access panel covering it. Disconnect the wiring harness from the old motor. Remove the mounting screws or clips securing the old motor and pull it free, along with the fan blade if it doesn't transfer separately. Install the new 242018304 in the same position, reconnect the wiring harness fully, and secure the mounting hardware. Reinstall the access panel. Restore power and monitor the refrigerator's temperature over the next 24 hours to confirm normal, quiet operation and consistent cooling. Tools needed: Phillips screwdriver, work gloves.

Frequently Asked Questions

My refrigerator is running warm. Is this the part I need?

Yes, this is one of the most common symptoms of a failing condenser fan motor. Since this motor circulates air across the condenser coils and compressor, a worn or failed motor reduces the refrigerator's ability to dissipate heat, which can leave both the refrigerator and freezer compartments running warmer than they should.

My refrigerator makes unusual noise. Could this be the condenser fan motor?

Yes, aging or damage to this motor is a documented cause of noise, alongside the more common cooling-related symptoms. If the noise is coming from near the compressor or the back/underside of the refrigerator where this motor is located, it's worth checking.

Does this come with everything needed for installation?

Yes, this listing includes the condenser fan motor along with a 2-wire harness, so you don't need to source the harness separately for a complete installation.

Is this an OEM or aftermarket part?

This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Frigidaire OEM part, but is manufactured to match the electrical rating, dimensions, and shaft configuration of the original 242018301 condenser fan motor used in compatible Frigidaire, Kenmore, Electrolux, Crosley, Ikea, and White-Westinghouse refrigerators.
