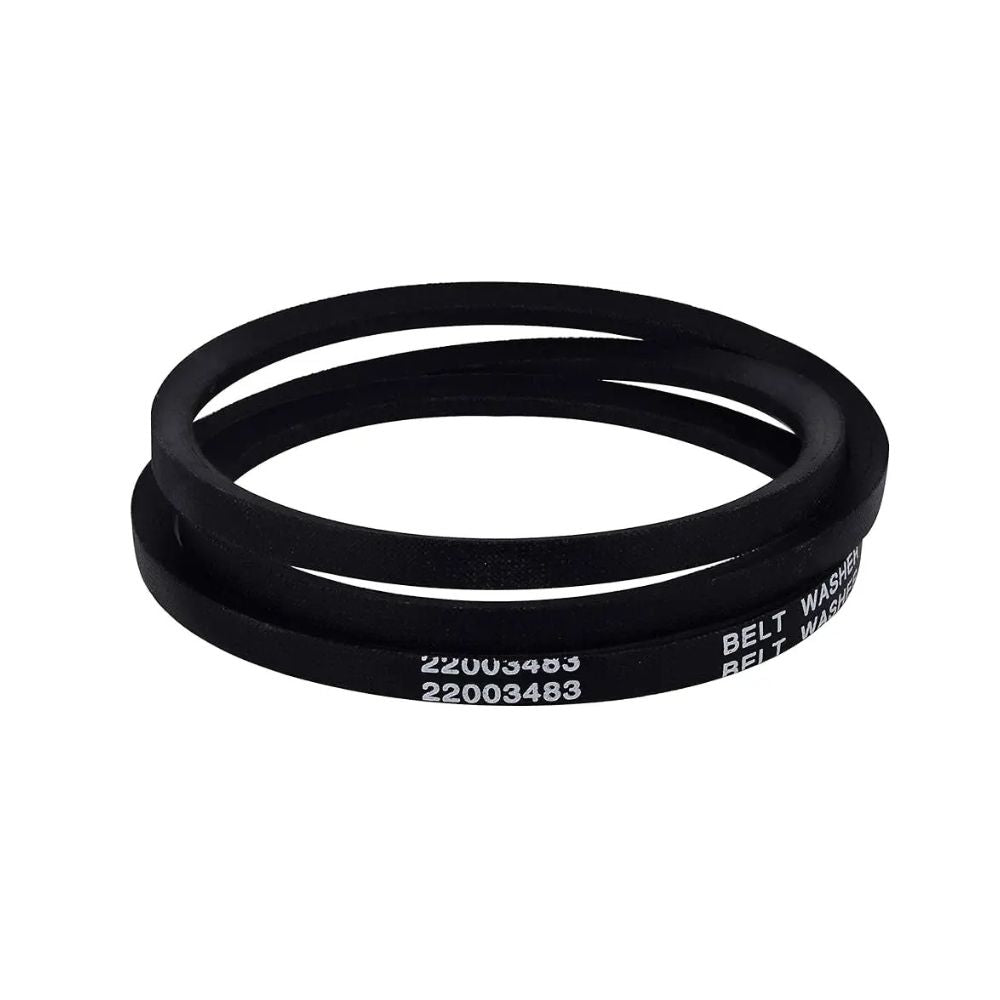

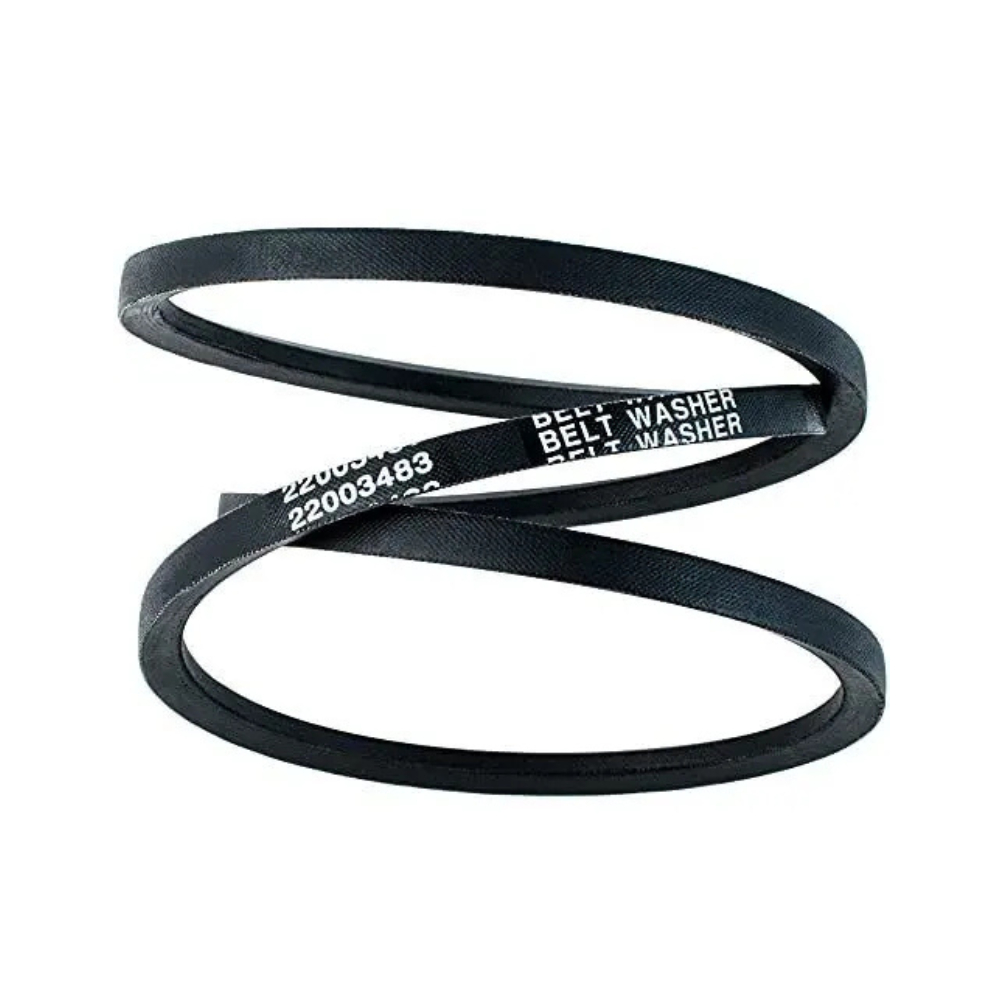

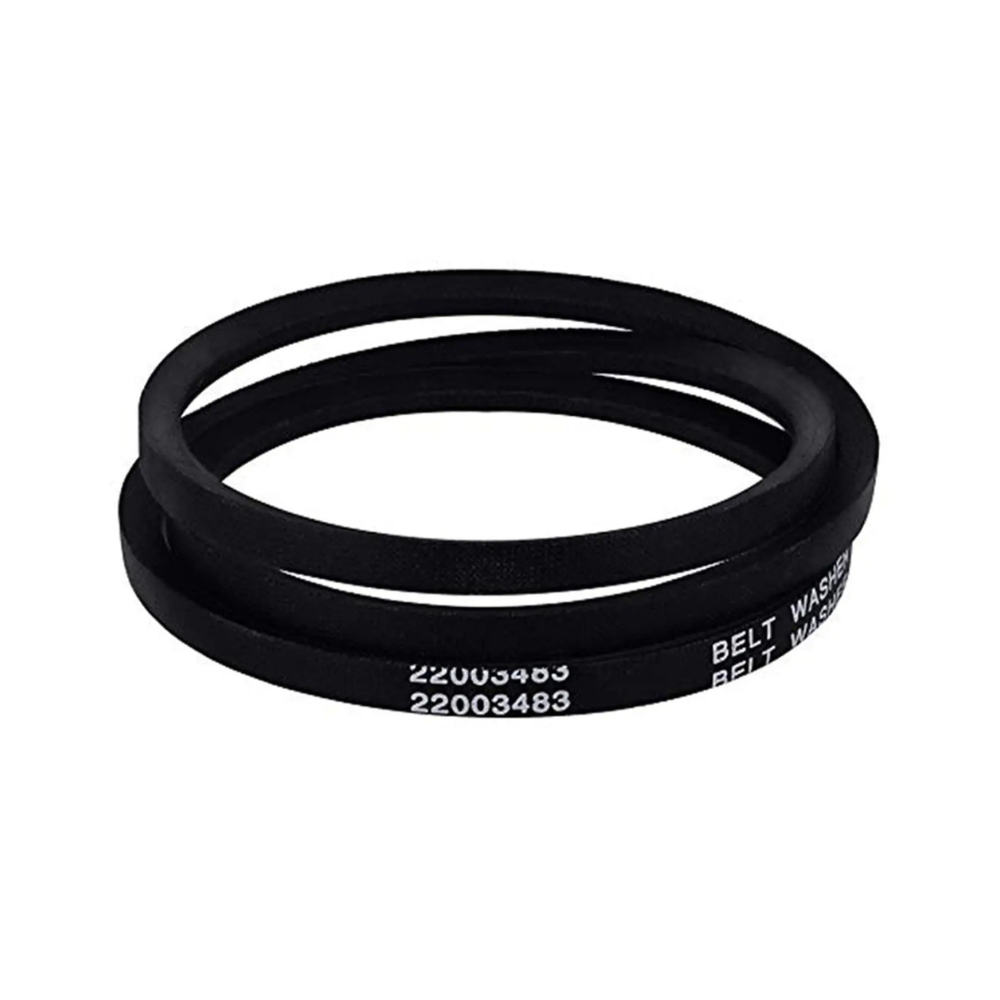

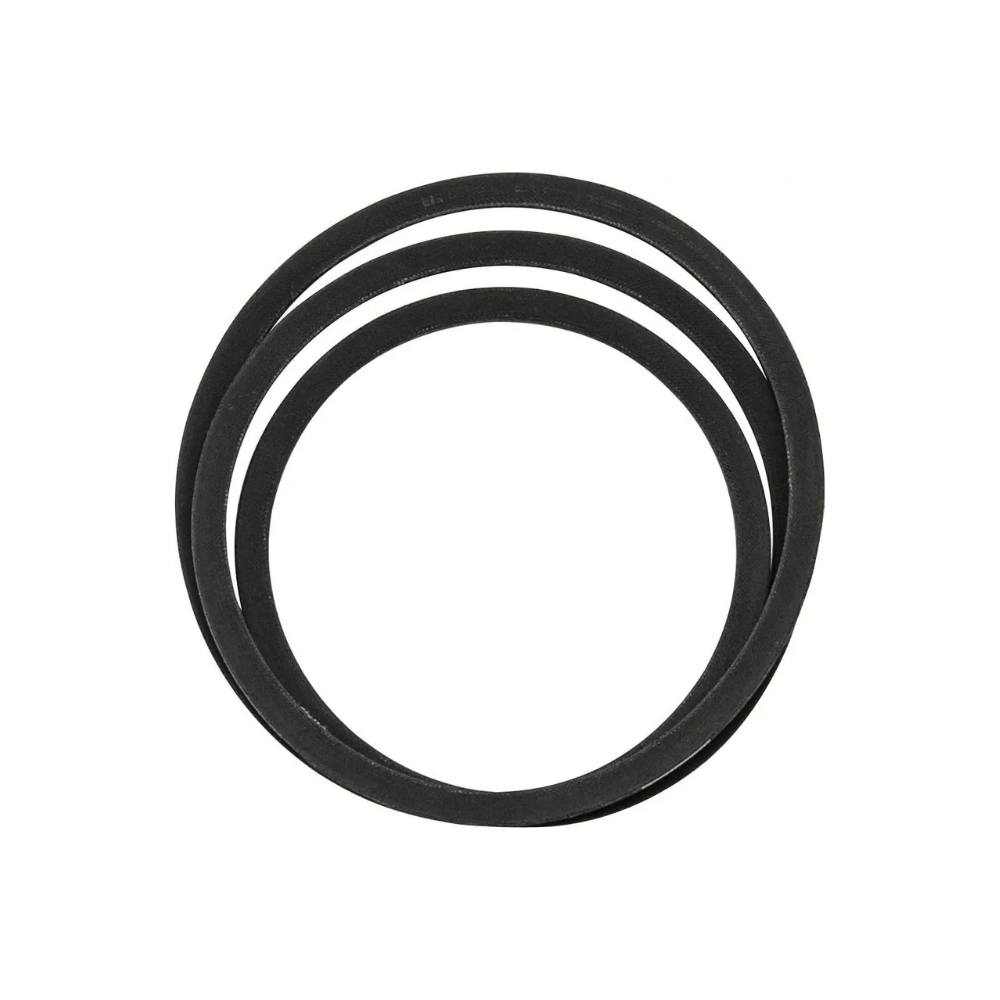

XPARTCO 22003483 Washer Drive Belt Replaces WP22003483
52-inch replacement drive belt for select Maytag top-load washing machines.
Product Overview
The XPARTCO 22003483 Washer Drive Belt transfers power from the washer drive motor to the drive system so the basket can spin during the wash and spin cycles.
This is a quality XPARTCO aftermarket replacement part for compatible Maytag washers that use 22003483 / WP22003483.
Quick Answer
22003483 / WP22003483 is a washer drive belt measuring approximately 52 inches long. It connects the motor pulley to the washer drive system on compatible Maytag top-load washers. Verify the complete washer model number before ordering.
Common Problems This Part May Fix
- Washer motor runs but the basket does not spin
- Basket spins slowly or intermittently
- Washer makes squealing or slipping noises
- Burning-rubber smell from a slipping belt
- Original belt is cracked, stretched, glazed, frayed, or broken
- Poor spin performance or wet clothes at the end of the cycle
Replaces and Cross-References
Cross-reference numbers are provided for identification. XPARTCO is an aftermarket replacement brand and is not manufactured by Whirlpool Corporation or Maytag.
Compatibility
Designed for select Maytag top-load washers. Compatible model examples include:
Important: This is only a partial model list. Confirm the full washer model number before purchase because similar Maytag washer platforms may use different drive belts.
Key Features
- Quality XPARTCO aftermarket replacement
- Approx. 52-inch belt length
- Connects the drive motor to the washer drive system
- Helps restore proper basket spin
- Replaces WP22003483 and earlier Maytag belt numbers
- For select Maytag top-load washers
Product Specifications
| XPARTCO Part Number | 22003483 |
| Replaces | WP22003483 |
| Part Type | Washer Drive Belt |
| Condition | New |
| Part Quality | Aftermarket Replacement |
| Approx. Length | 52 in. |
| Application | Top-Load Washing Machine Drive System |
| Primary Function | Transfers motor power to the washer drive system |
| Package Quantity | 1 Drive Belt |
Installation Notes
- Disconnect the washer from electrical power before service.
- Shut off the hot and cold water supplies if the washer must be moved or tilted.
- Access the underside or drive area according to the washer service procedure.
- Photograph the original belt routing before removal.
- Inspect the motor pulley, drive pulley, pump area, and related bearings for wear or binding.
- Install the replacement belt in the original routing and verify that it is seated properly on the pulleys.
- Rotate the drive system by hand, where appropriate, to confirm smooth belt tracking.
- Return the washer to its normal position and restore utilities only after all guards and panels are secure.
Diagnostic tip: A belt that repeatedly slips, overheats, or breaks may indicate a seized pulley, transmission or bearing problem, motor-mount issue, or another drive-system fault. Correct the underlying cause before operating the washer.
Frequently Asked Questions
Is this a Genuine Maytag or Whirlpool OEM belt?
No. This is a quality XPARTCO aftermarket replacement for compatible WP22003483 applications.
Does this replace WP22003483?
Yes. This listing is designed as an aftermarket replacement for the WP22003483 / 22003483 belt family.
What is the belt length?
The published replacement-belt length is approximately 52 inches.
What does this washer belt do?
It connects the drive motor to the washer drive system so the basket can spin during operation.
Will this fit every Maytag washer?
No. Verify the complete appliance model number because different Maytag washer platforms use different belts.
Shop With Confidence
Verify the complete washer model number and original belt number before ordering. Our compatibility team can help determine whether XPARTCO 22003483 is correct for your appliance.
